These are instructions on how to jailbreak your iPhone 3GS on the 4.3.3 firmware using RedSn0w for Windows. The Mac version of this tutorial is here.

Make sure not to update to iOS 4.3.3 if you need an unlock as one is not yet available unless you opt to use the iPad baseband.

IMPORTANT FOR UNLOCKERS
During this process you can update your baseband to the 06.15 version. If you are on 05.14 or 05.15 or higher you will need to do this to unlock. You do not need to do this for jailbreak only. Please read the following very carefully before deciding whether to do this. You can find out baseband version here.

1. There is no way to come back down from 06.15, and there’s no hiding the baseband version from Apple. You’ll be voiding your warranty in a very obvious way.
2. If some future baseband comes out with a critical fix, you won’t be able to update to it if it remains down in the 05.xx sequence (then again, you wouldn’t update to it if you wanted to keep your unlock anyway).
3. Starting with FW 4.2.1 if you have 06.15 on your iPhone you won’t ever be able to restore to stock firmware (it will fail). You’ll need to only restore to custom IPSWs (then again, if you’re unlocker you should already be doing that).
4. There are reports that 06.15 may disable your GPS. The iPhone Dev-Team is currently working on a fix.

Don’t update to 06.15 if you don’t need to! Only do this if you need the unlock and you’re stuck on 05.14 or 05.15, and you're willing to assume the above risks. If your baseband is already unlockable and you are on a lower firmware version then use PwnageTool to update to 4.3.3 without upgrading your baseband.

Step One

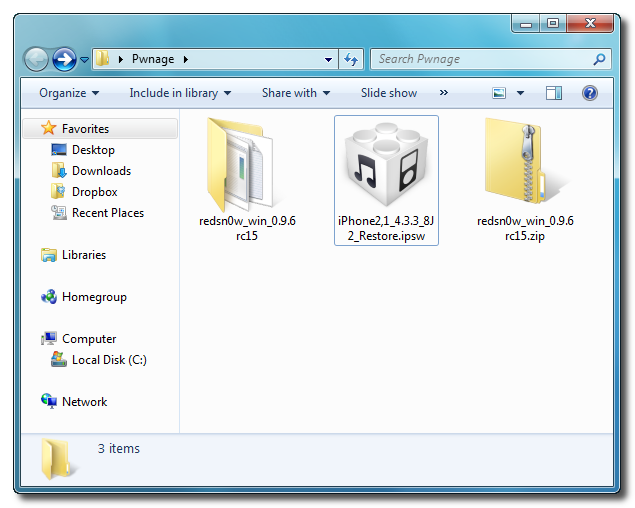

Create a folder on your desktop called Pwnage

Download RedSn0w from here and place it in the Pwnage folder. Likewise, download the latest 4.3.3 firmware from below and place it in the same folder.

4.3.3 (3GS): iPhone2,1_4.3.3_8J2_Restore.ipsw

Extract the RedSn0w zip file into the same folder.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Two
Connect your iPhone to the computer and launch iTunes.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Select your iPhone from the list of devices on the left. Now hold down Shift and click the Restore button. Restore is preferred as it won't create any wasted space on your iPhone.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

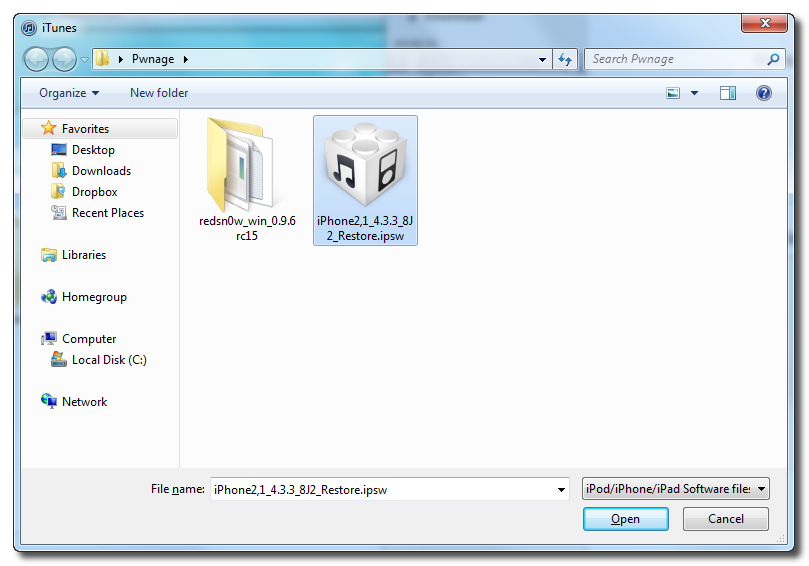

Navigate to the Pwnage folder on your desktop and select the 4.3.3 firmware ipsw. Click the Open button to continue.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Three
Once iTunes has finished updating your iPhone to the desired firmware open the Pwnage folder on your desktop and launch the redsn0w application from the redsn0w folder we extracted earlier.

**Windows 7 users may need to run RedSn0w in Vista compatibility mode. You can do this by right clicking the executable and selecting Properties from the contextual menu
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Four

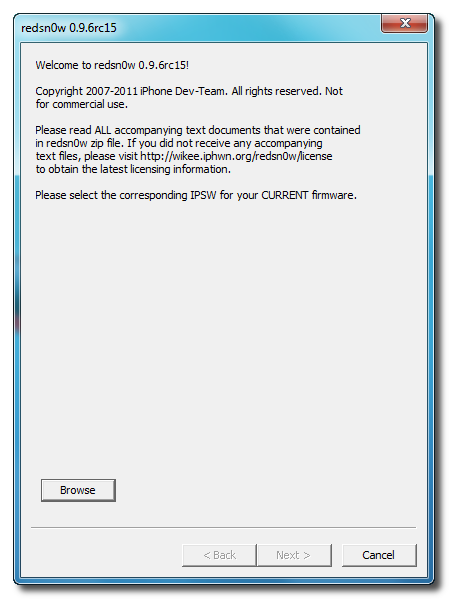

Once RedSn0w opens click the Browse button
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Five

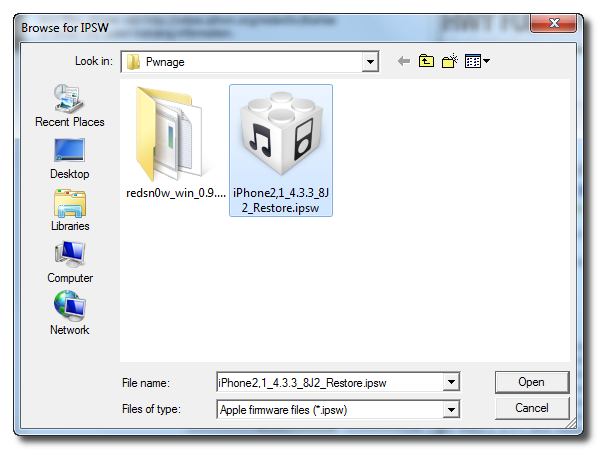

Select the 4.3.3 firmware ipsw we placed in the Pwnage folder on our desktop then click Open.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

You will be asked if this device is a newer fixed model. If yours is then click the Yes button; otherwise, click the No button.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Six

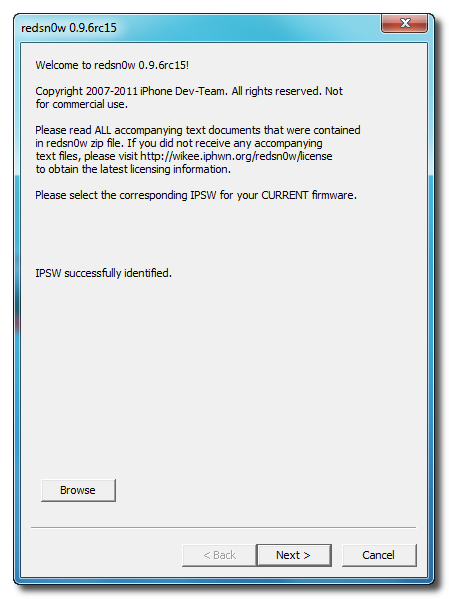

Once the firmware has been verified click the Next button to continue.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Seven
RedSn0w will now prepare the jailbreak data
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Eight

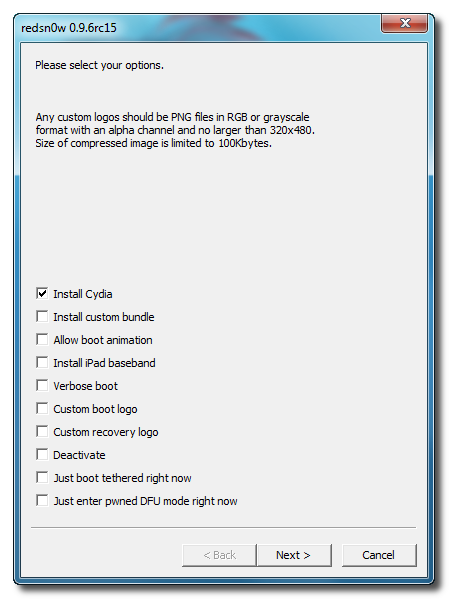

From this window you can select the jailbreak options you would like.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Verbose boot displays detailed information on boot of your device and is generally only needed by developers and advanced users.

Make sure Cydia is selected. For this tutorial we will also select Custom boot logo and Custom recovery logo.

When you click to select each custom logo option a dialog window will appear asking you to select the image. Locate the image you would like to use then press the Open button.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

*Remember the rules for boot logos are: RGB or Grayscale format with Alpha channel and dimension below 320x480. If you would like to use the iClarified ones they can be found here: Boot Logo, Recovery Logo

If you read the warning above and you would like to update your baseband to the 06.15 iPad version for unlock then check Install iPad Baseband. Click Yes when prompted to confirm your decision.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Click the Next button to continue
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Nine

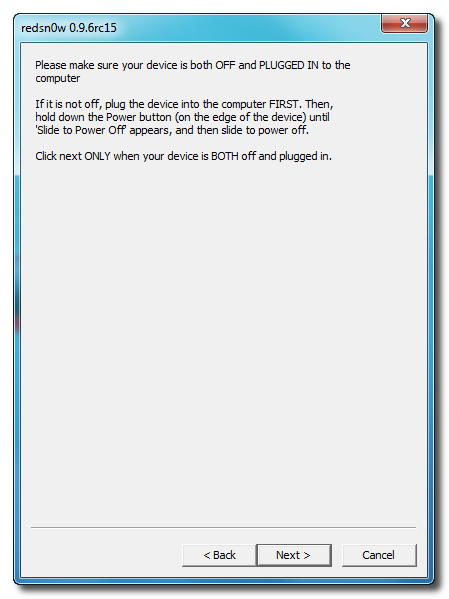

Please plug your iPhone into the computer and make sure its OFF then click the Next button
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Ten

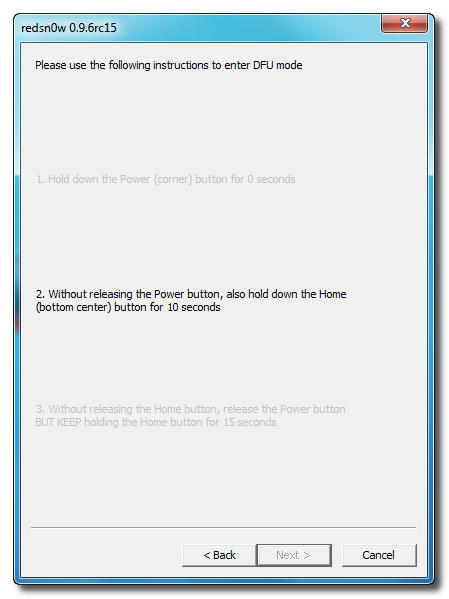

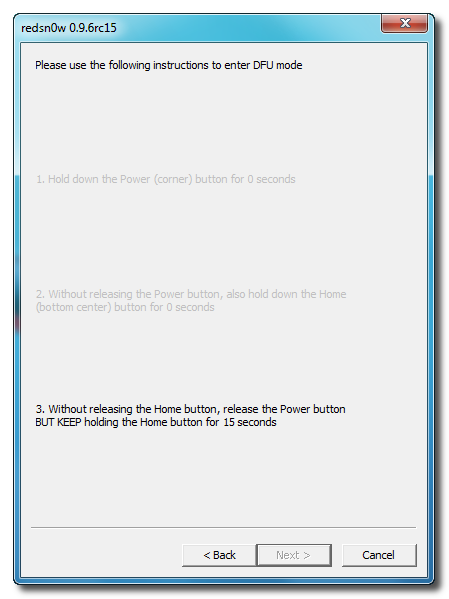

RedSn0w will now guide you through the steps to get into DFU mode. You can find more help with DFU mode here
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Hold down both the Home button and the Power button for 10 seconds.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Release the Power button and continue holding the Home button until RedSn0w detects the device.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Eleven

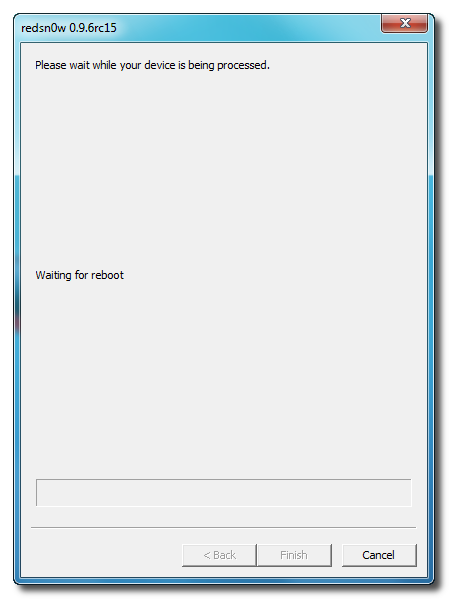

Your iPhone will now reboot
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Twelve

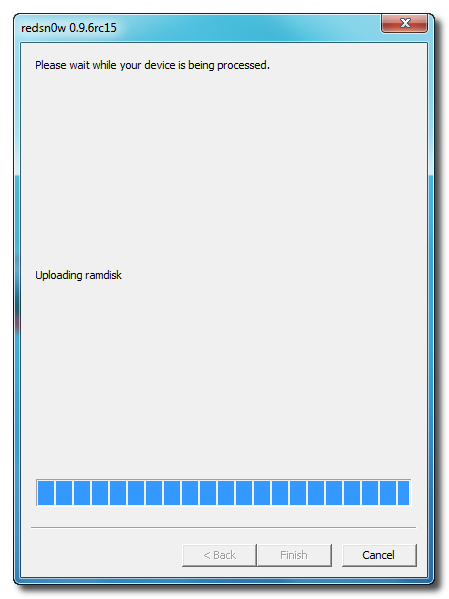

RedSn0w will then begin uploading the new RAM Disk and Kernel.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

Step Thirteen

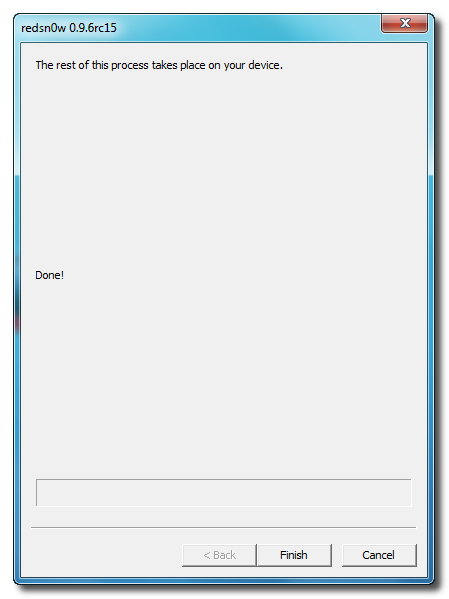

Once this is complete you will be notified that RedSn0w is done. Click the Finish button. When your iPhone finishes rebooting (5 minutes or so) it will be jailbroken with Cydia on the SpringBoard.
How to Jailbreak Your iPhone 3GS Using RedSn0w (Windows) [4.3.3]

*As usual a big thanks to the iPhone Dev-Teams, Geohot, and I0n1c for their hard work and contribution to the iPhone community.
**Windows 7 users can try running RedSn0w as an administrator in Windows Vista or XP compatibility mode if you experience any difficulties.
