Things You Need:
1. SIM Card Programmer (I used an Infinity USB Unlimited purchased from here). NOTE***: Do not purchase a programmer from Wizard Satellite. I learned that lesson the hard way.
2. Silver Card (I purchased mine at the same time as the programmer from here).
3. Your SIM Card (NOTE*** : This must be a V1 SIM Card. A V1 card is an older SIM card, probably a few years old that you can easily extract a KI number from. I will try to compile a list of SIM cards that are V1 in the near future.
4. SimEmu 6.01 (Download from: here)
5. Woronscan 1.09 (Download from: here)
This tutorial makes a duplicate of your SIM Card. In some countries doing this may be against the law. Check to make sure you are legally allowed to do this before attempting the tutorial.
SETUP YOUR PROGRAMMER
I will take you through the steps to install the Infinity USB Programmer. If you plan on using a different programmer then skips these steps and refer to manual of your programmer.

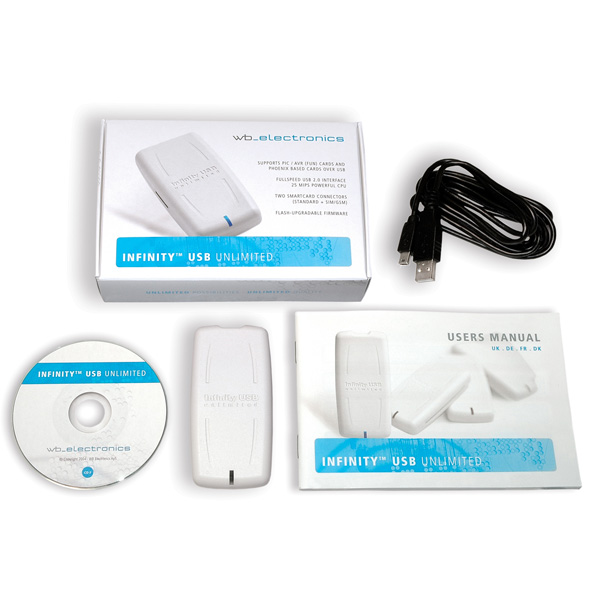

Unpackage your Infinity USB Programmer and connect it to the computer via the included USB cable.
The Found New Hardware wizard will open. Click Locate and install driver software.
A popup will appear asking you to permit this action. Click the Continue button.

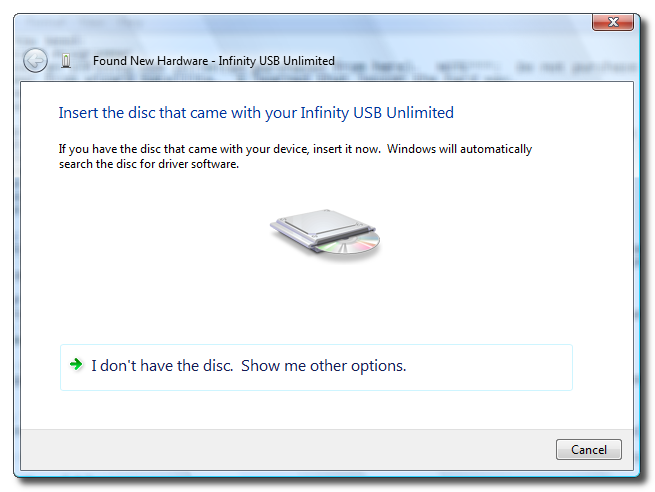

A popup will appear asking you to insert the disc that came with the programmer. Do this now.

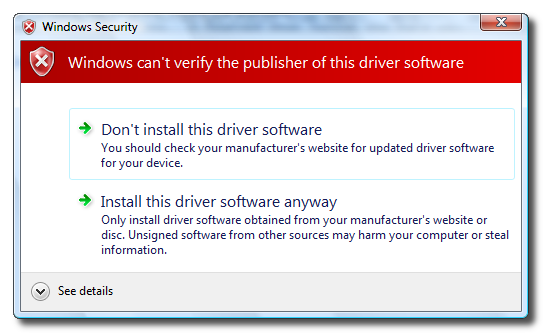

Another popup will appear telling you that windows can't verify the publisher of this driver software. Click Install this driver software anyway.

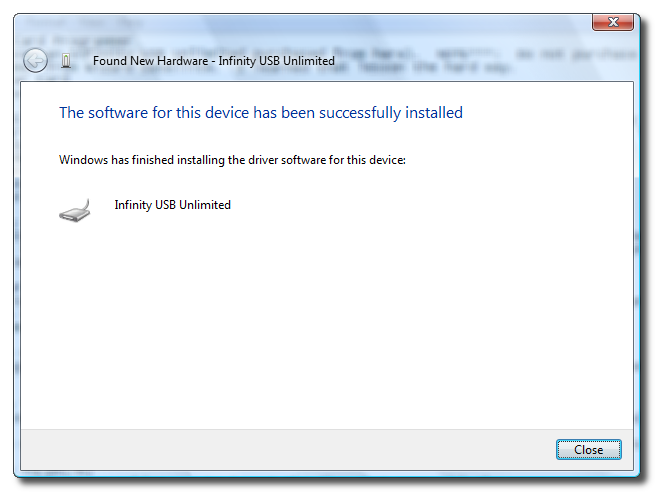

You will now be notified that windows has successfully installed the software for this device. Click the Close button. Notice also that the light on your programmer will change from red to a bluish purple.

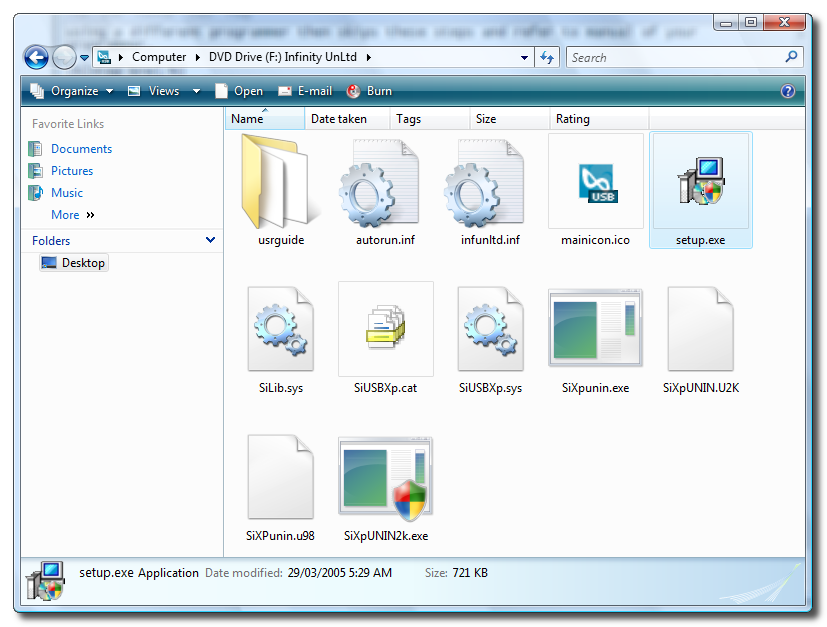

Open My Computer and go to your disc drive. Double click setup.exe to launch the programmers software setup.
Complete the installation and at the end make sure to launch the program.
From the popup that appears select your language then click the Ok button.

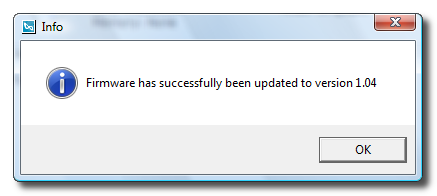

You may get a firmware updated message. Click the Ok button.

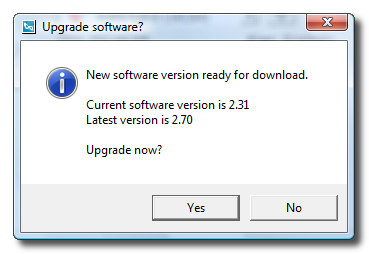

You will then get a new software message popup. You must unfortunately click to Yes to update.

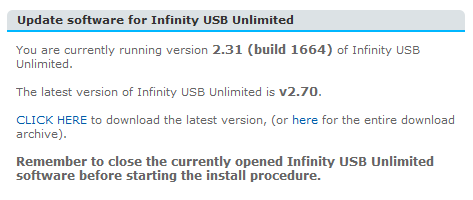

You will be taken to a website to download the latest software. Download it and install it. Once it finishes you will be prompted to restart.

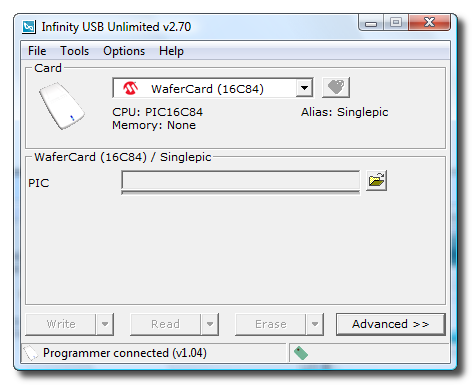

Once the computer has rebooted launch the Infinity USB Unlimited program from your desktop.
If you get prompted about a firmware update click the Ok button.
Click to select Virtual COM port (VCP) mode from the Tools menu.

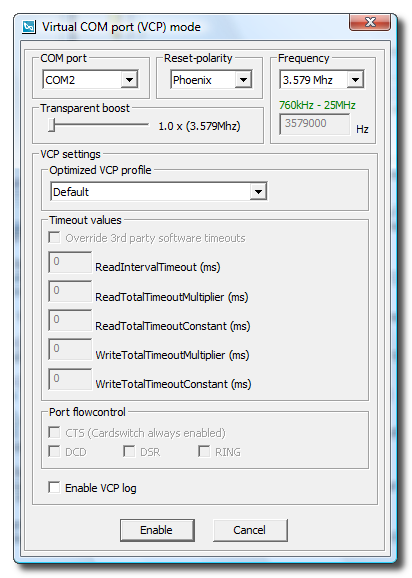

A popup window will appear. Take note of the COM port. Mine is COM port 2. Then click the Enable button.

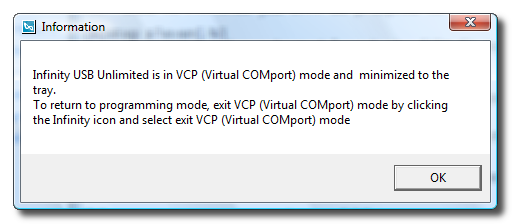

You will be notified that your programmer is in VCP mode. Click the Ok button.
FIND YOUR IMSI, KI, and ICCID
Download Woronscan 1.09 using the link above.
Open the zip file(ws109.zip) that downloads and drag Woron_Scan.exe to your desktop.
Insert your working SIM into the programmer. The card must be insert with the gold part down and completely inside the programmer.
Double click to launch Woron_Scan.exe from your desktop.
Click to select Settings from the Card Reader menu.

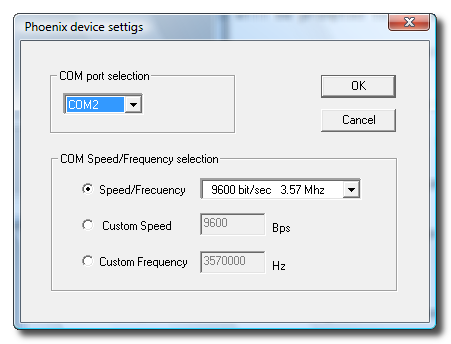

Choose the COM port of your programmer that we found above and click the Ok button.
Select IMSI select from the Tasks menu.
Woron_Scan will display your IMSI number. Take note of this. (I've blanked some of my numbers out)
Select ICC select from the Tasks menu.
Woron_Scan will display your ICCID number. Take note of this. (I've blanked some of my numbers out)
Select KI Search from the Tasks menu.

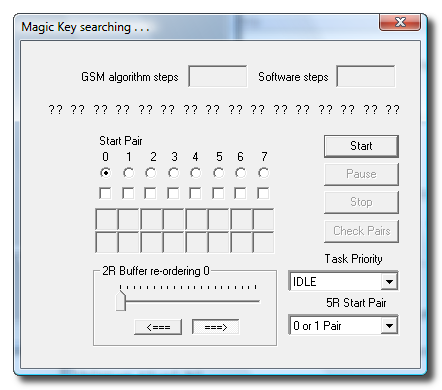

A dialog box will open called Magic Key searching. Click the Start button.
This could take a really long time; however, eventually the program will find a KI value. You will notice the series of questions marks in the Magic Key searching... window will slowly change to numbers. Once all the question marks have turned into numbers you have found your KI number. Write it down. (I've blanked some of my numbers out)
NOTE***: This process took me almost an hour. It might take more or less time.
NOTE***: If you do not have a V1 SIM you might get a message similar to this when trying to find your KI number. Starting 2R attack on 0 pair....
The GSM algorithm is not comp128-1 ...Scanning stoped...
Take your working SIM card out of the programmer and insert the SIM card that came with your iPhone.

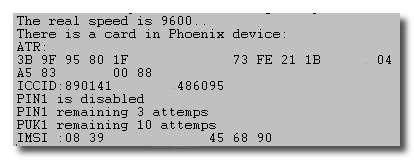

Select ICC select from the Tasks menu. Then once you get an ICCID select IMSI select from the Tasks menu. Take note of the IMSI. (I've blanked some of my numbers out)
Exit Woron Scan.
Remove the SIM Card from the programmer.
MAKE THE SUPERSIM
Download SIM_EMU_6.01_CFG_v2.1.zip from: here
Launch the SIM_EMU_6.01_CFG_v2.1.exe file from the zip to install it.
Download SIM_EMU_6.01_iphone_u1.rar from: here
Extract the two HEX files onto the desktop.
Put your Silver Card into the programmer. Do not break the card apart. Put the large card into the programmer with the gold part facing up and completely inserted.
Run Sim-Emu 6.01 Configurator from your programs list.
Click on the Configure tab.
Click the Read from disk button.

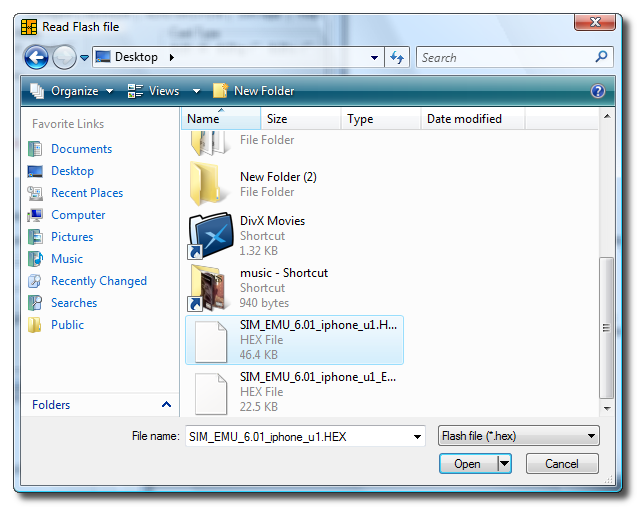

Select the SIM_EMU_6.01_iphone_u1.HEX file we saved to the desktop, then click Open.
A popup will appear saying Flash read from file click the Ok button.

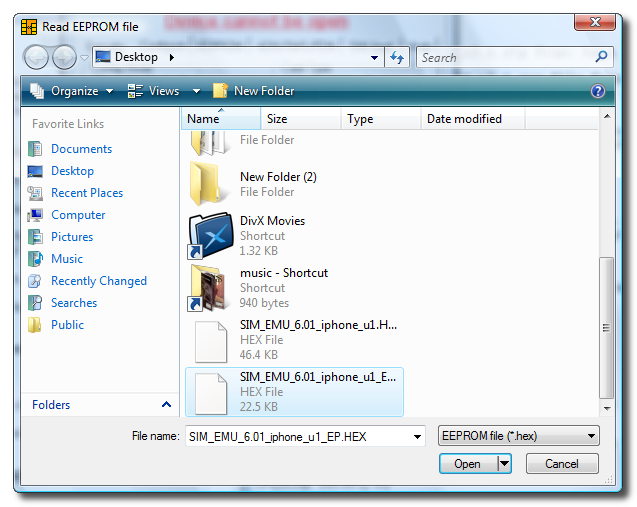

Another popup will appear. Select the SIM_EMU_6.01_iphone_u1_EP.HEX file we saved to the desktop and then click Open.
A window will popup saying EEPROM read from file. Click the Ok button.

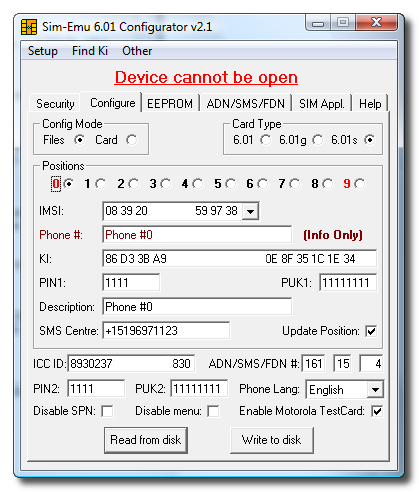

You will notice that positions 0 and 9 are colored red. That is good.

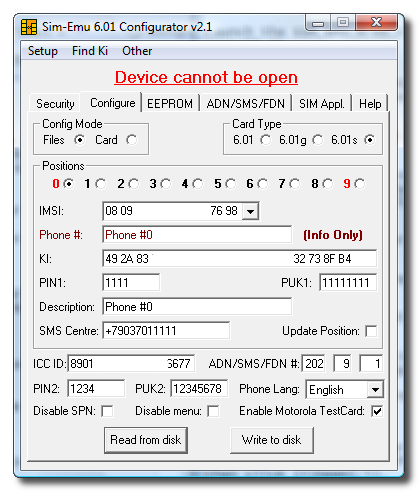

Make sure position 0 is selected type in the data which you got from your carrier SIM with Woronscan (IMSI,Ki & ICCID).
For ADN/SMS/FDN# type 161, 15, 4
For SMS Centre type in your Carrier SMS center number. This is the number you dial for voicemail. Make sure you include the +1 in front for North America.
Type in 1111 for PIN1 and 11111111 for PUK1.

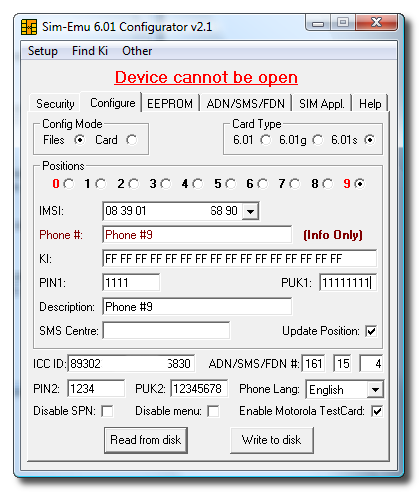

Now select position 9. Enter the IMSI from the SIM card that came with your iPhone (AT&T) and set PIN1and PUK1 to the exact same thing as your entered for position 0.
Click the Write to disk button.

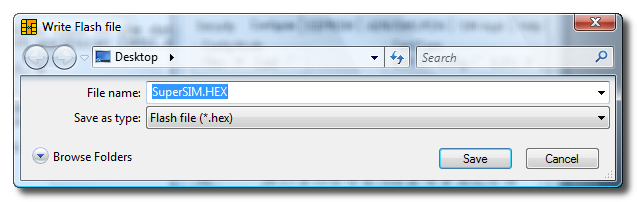

A write flash file window will appear. Name the flash file SuperSIM.HEX and click the Save button. I saved the file to the desktop.

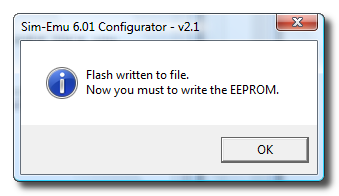

You will be notified that the Flash was written to file. Click the Ok button.

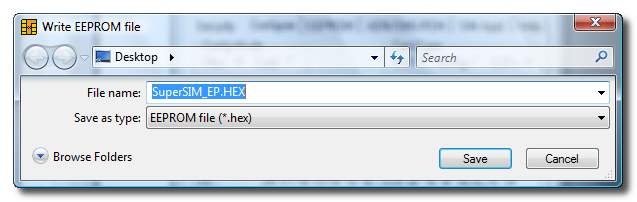

A write EEPROM file window will appear. Name the EEPROM file SuperSIM_EP.HEX and click the Save button. I saved the file to the desktop.
When notified that the EEPROM was written to file click the Ok button.
Close Sim-Emu and launch the Infinity USB Unlimited program from your desktop or the system tray.
Select SilverCard from the dropdown list.

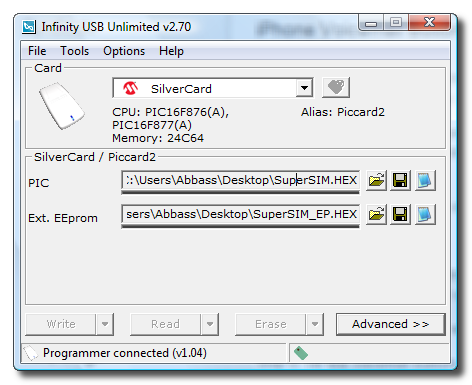

You will see two file fields in the center of the window. Load SuperSIM.HEX into the top one. Then load SuperSIM_EP.HEX into the bottom one.

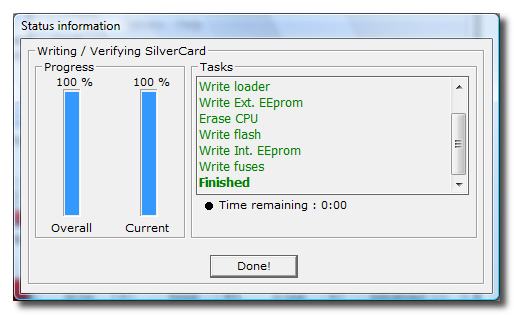

Now click the Write button. You will be shown the status of the write process. Click the Done button when it is complete!
Pop the small SIM card out of the large card carefully. If you didn't buy the SilverSIM I did you might have to cut it manually. Follow these instructions to do that: http://www.mobileshop.org/usertech/simcutting.htm
JAILBREAK YOUR IPHONE
Place your AT&T SIM into your iPhone and follow this tutorial to Jailbreak your iPhone!
MAKE YOUR SUPERSIM WORK
Place your SuperSIM into your iPhone.

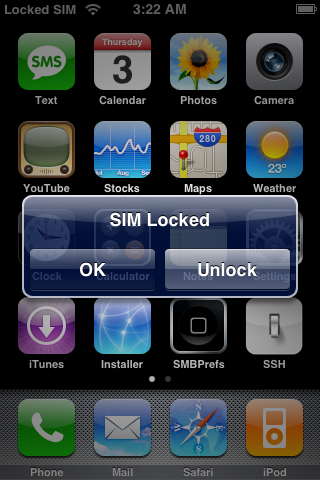

A popup message will appear letting you know that a locked SIM has been inserted. Press the Unlock button.

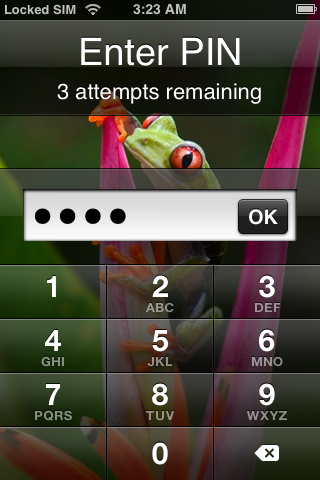

Enter 1111 as the pin and press Ok.

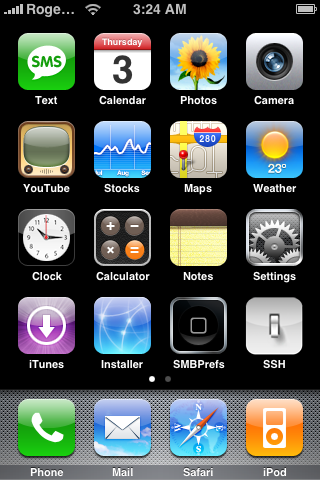

The iPhone will now connect to your wireless carrier and you are good to go!
Whoops wait a minute. I noticed the Voicemail button doesn't work for me. Go to your keypad and call this number: *5005*86*yourvoicemailphonenumber#
Obviously replace yourvoicemailphonenumber with your full voicemail number ie. 15196971123.
Wait a few seconds after pressing call (It won't actually call anyone) and then your Voicemail button will work!
I'd like to send a big thanks to Viper who help me get through this! Thanks for your help!
Also, please do not take this tutorial and copy it elsewhere. Please link to it. Not only are you stealing my bandwidth but putting to waste the many long hours I worked on this. Thank you.
