Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

Posted November 3, 2009 at 11:54pm by iClarified
EnglishChinese (Traditional)FinnishFrenchGermanItalianJapaneseRomanianRussianSpanishSwedish
這是一篇給蘋果電腦使用者的教學,教導你如何使用 BlackRa1n/BlackSn0w 來越獄/解鎖你的 iPhone 3G,3GS。

這篇破解教學適用於軔體版本(firmware)3.1.2 , 基頻版本(baseband)05.11.07 以上的 iPhone 手機。

對於那些使用新版 iPhone 3GS (更新過 Bootrom), BlackRa1n 目前只能提供有限度的越獄功能,意思是說,假如你的 iPhone 使用 BlackRa1n 越獄,然後不小心將它用到沒電的狀態,那麼你得重新連接 iPhone 到你的電腦,然後再執行一次 BlackRa1n 來重新啟動。


再次提醒您,在依循下面的教學之前,請先確定你的 iPhone 是否為軔體版本(firmware)3.1.2 , 基頻版本(baseband)05.11.07,假如不是,請透過 iTunes 來更新你的 iPhone。

假如你想了解在 Windows 系統上的教學步驟,請點這裡。好的,我們要開始囉!




步驟一

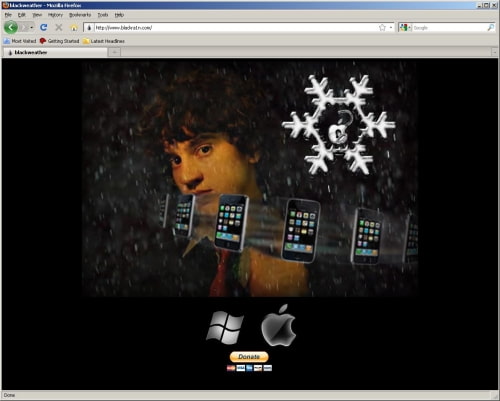

首先請連上 http://www.blackra1n.com 網站,點一下螢幕下方的蘋果標誌,就可以預備下載工具軟體。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

步驟二
請將檔案下載儲存到你的電腦桌面上Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

步驟三
雙擊 blackra1n 這個壓縮檔案,它會自動解壓縮為一個有黑雨圖示的應用程式,然後再點兩下啟動這個黑雨程式。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

步驟四

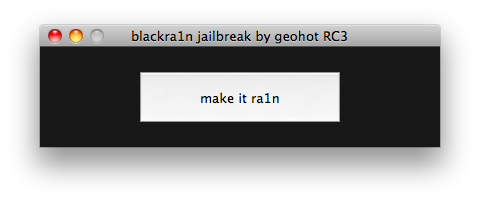

再次確認你的 iPhone/iPod Touch 正確連接在你的電腦上,然後請點擊大大的「make it ra1n」按鈕。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

步驟五

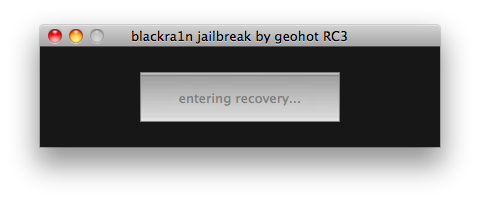

你的 iPhone 會開始進入復原模式(recovery mode)。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

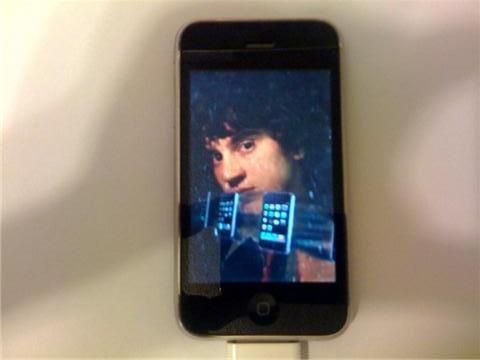

接下來,在復原狀態下,你應該會在你的設備螢幕上看到 GeoHot 羞澀又英俊的臉龐 ...
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

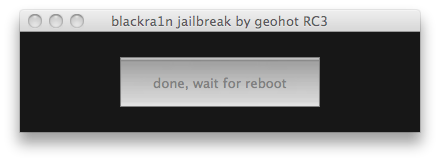

blackra1n 將會開始處理一些資料,當處理完畢後,你的設備將會重新啟動(reboot)。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

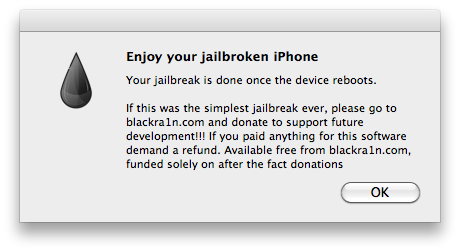

這時候,你應該會同時看到一個彈跳式視窗,裡面的訊息大意為這是個免費軟體工具,假如您願意,請以實際的捐款行動來贊助 GeoHot,他的 email 為 geohot@gmail.com。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

步驟六

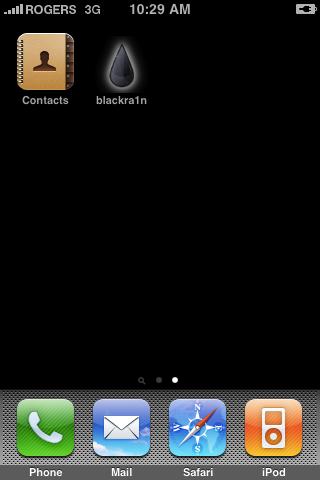

一旦你的設備重新啟動後,就代表你已經越獄成功囉!你應該會在你的設備螢幕上看到一個黑雨圖示的 blackra1n 程式,請確認你現在是可以連線網際網路的狀態,就可以啟動這個程式了。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

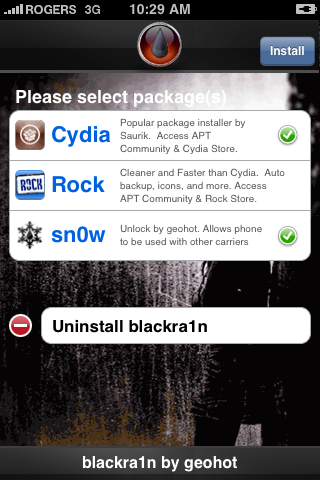

選擇你想要安裝的輔助安裝程式(installer application),假如你的手機想要「解鎖」,請點一下 sn0w。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

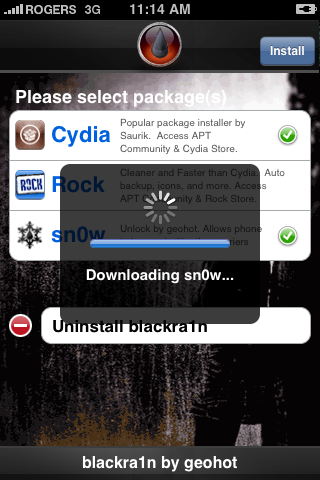

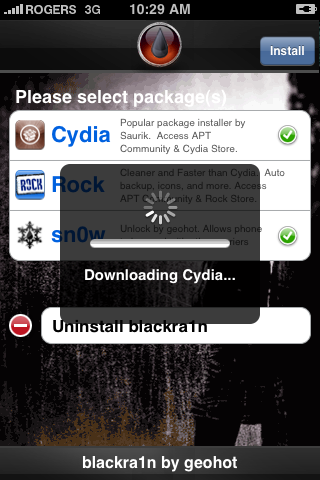

BlackRa1n 會自動下載需要的程式碼,並自動安裝。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

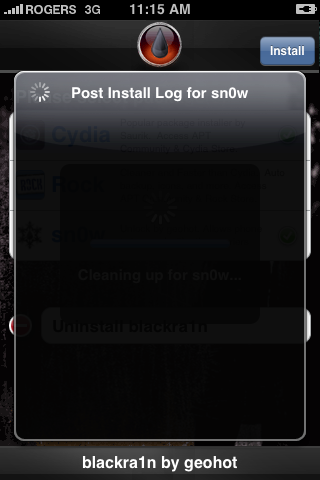

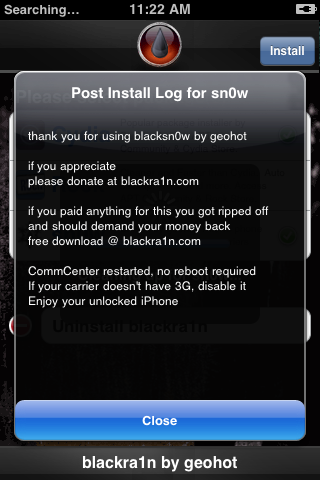

假如你使用 blacksn0w 解鎖,你會看到「Post Install log for sn0w」這個訊息視窗, CommCenter 會自動重啟,但不需要整台設備重新啟動。最後再按下「Close」按鈕。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

步驟七
當 BlackRa1n 完成所有安裝後,螢幕視窗上會多一個剛剛你安裝的輔助安裝程式(這裡以 Cydia 示意)。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS

步驟八

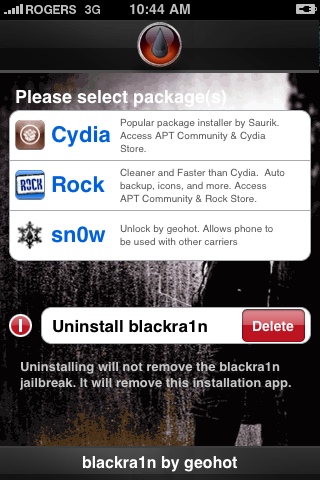

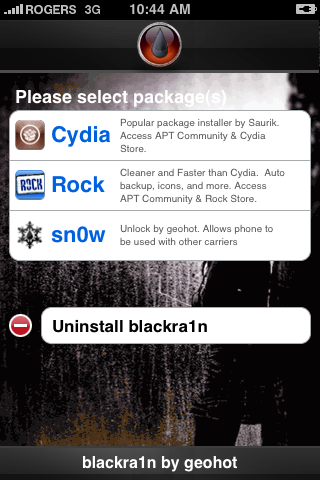

若是你確定輔助安裝程式可以正常使用,你可以在 BlackRa1n 程式中,直接點選「Uninstall blackra1n」按鈕來移除 BlackRa1n 程式。
Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS Mac OSX 下如何透過 BlackSn0w 越獄/解鎖你的 iPhone 3G,3GS


***THANKS: A big thanks to Geohot for making this jailbreak and unlock possible. Also thanks to those who contributed to making it a success. You can donate to Geohot using the button below. Please note these donations go to Geohot and not to iClarified.
