How to Jailbreak Your iPhone 3G on OS 3.1.3 Using PwnageTool (Mac)

Posted February 14, 2010 at 11:52pm by iClarified | Please help us and submit a translation by clicking here | 1118165 views
Swedish  Korean  Portuguese (Brazil)  Spanish  Polish  Slovak  Russian  French  Dutch  Portuguese  Romanian

This tutorial will show you how to jailbreak your 3G iPhone by creating a custom ipsw that can automatically jailbreak, install applications, and add your own boot logos.

To learn how to use PwnageTool to unlock/jailbreak a 2G iPhone you can use the tutorial which is here or for the iPhone 3GS click here

Watch the Video!
For your convenience this tutorial is available in video format also. Click the Watch It button to view the tutorial!









Step One

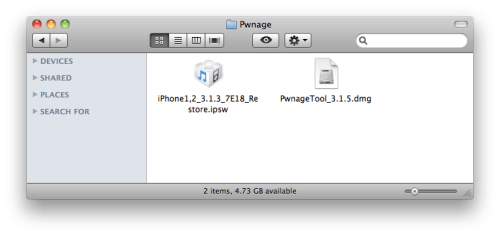

Make a folder called "Pwnage" on the desktop. In it, you will need a couple of things. PwnageTool 3.1.5, found here

You will also need the 3.1.3 iPhone firmware.
3.1.3 (3G): iPhone1,2_3.1.3_7E18_Restore.ipsw

When downloading the IPSW file, it is best to download it with Firefox since Safari often auto extracts it!


Step Two
Double click to mount PwnageTool 3.1.5 then drag the PwnageTool icon into the Pwnage folder.


Then from the Pwnage folder double click to launch the PwnageTool application.


Click Ok if presented with a warning.


Step Three
Click to select Expert Mode from the top menu bar


Step Four
Click to select your iPhone. A check-mark will appear over the image of the phone.


Step Five
Click the blue arrow button to continue. You will be brought to the "Browse for IPSW" page. On my laptop, it automatically found the IPSW. If PwnageTool doesn't automatically find the ipsw file you can click Browse for IPSW....


Click to select the found IPSW file, a checkmark will appear next to it. Then click the blue arrow button to continue.


Step Six
You will then be brought to a menu with 7 choices. Click to select General then click the blue arrow button.


The General settings allows you to decide the partition size. Check Activate the phone if you are not with an official carrier then click the blue arrow button.


NOTE*: Deselect Activate if you have an iPhone legitimately activated on an official carrier.
NOTE*: You may need to increase the size of the root partition slightly. My first attempt failed at creating the IPSW until I increased the size to about 695 MB.


The Bootneuter settings are greyed out for the 3G iPhone. Click the blue arrow button.


The Cydia settings menu allows you to create custom packages so you do not have to manually install the necessary them later.


Click to select the Download packages tab. Then click the Refresh button to display all the available packages. Double clicking the package you want will download it and make it available in the Select Packages tab.


Checkmark the ones you want then Click the blue arrow button.


The Custom Packages Settings menu displays listed package settings for your custom IPSW. For know leave these settings as is. Click the blue arrow button to continue.


The Custom Logos Settings menu allows you to add your own images as boot logos. Click the Browse button to select your Boot logo and Recovery logo. If you would like to use the iClarified ones they can be found here: Boot Logo, Recovery Logo


Remember the rules for them: RGB or Grayscale format with Alpha channel and dimension bellow 320x480...


Click the blue arrow button to continue.

Step Seven
You are now ready to begin the pwnage process! Click the Build button to select it then click the Blue arrow button to begin.


Step Eight

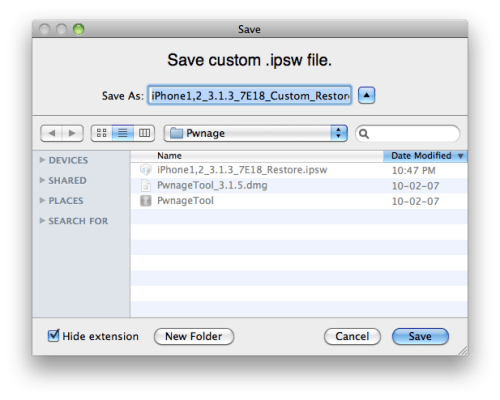

You will be asked to save your custom .ipsw file. Save it to your Pwnage folder you created on your Desktop.


Your IPSW is not being built. Please allow up to 10 minutes.


You will be asked to enter your administrator password. Do this then click the OK button.


When prompted if your iPhone has been Pwned before, we clicked No. It allows for a more thorough restore.


You will be asked to turn off the device. Make sure it is connected to the USB port.


Step Nine
Be ready to follow directions now. It will ask you to hold the home button and the power button for 10 seconds. Then, you will have to release the power button and hold the home button for 10 seconds to enter DFU.


If you fail, it will show you a message. Click Yes. Unplug the iPhone from the USB. Turn it off, then turn it back on. Plug it back into the USB and turn off the iPhone when prompted.

When done correctly, PwnageTool will display a message telling your that it successfully entered DFU mode. iTunes will also pop-up.




Step Ten
In iTunes, hold the Alt/Option key and click Restore.


Step Eleven

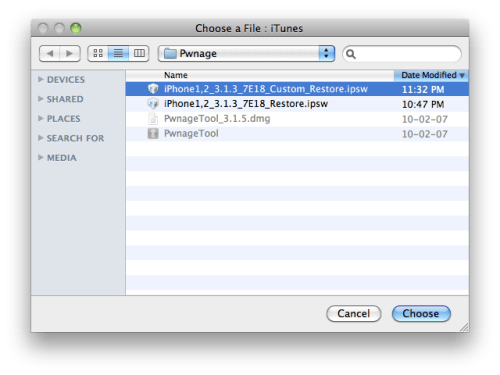

Navigate to the Pwnage folder on your desktop using the dialog window that appears. Select the custom IPSW that was created (iPhone1,2_3.1.3_7E18_Custom_Restore.ipsw) and click the Open button.


Step Twelve
iTunes will now restore the firmware on your iPhone. This can also take up to 10 minutes.


If you so desire you may restore from a previous backup to keep all your settings or set your iPhone up fresh.


Step Thirteen
Once the restore is completed your iPhone will reboot and you will notice Cydia is present on the SpringBoard!
Share
Add Comment
Pramodh - November 25, 2013 at 4:01pm
Many thanks for the precise tutorial. Worked flawlessly for me and I have android successfully working on my iPhone 3g which has 3.1.3. However, I am unable to get data working in android. Can someone help please? Should I setup an APN manually?
Clement Rhein - November 28, 2012 at 5:19pm
I've one this process with ease with my iPhone 2G. I'm now trying doing the same with my iPhone 3G. All is fine apart from the DFU mode. I have tried times and times again, leaving it a little less than 10 sec, leaving a little more than 10 sec, right on the dot on 10 sec... Not having any luck. I have tuned the device off, disconnected, turn back on again, wait, and connect again between each time. Anybody can help? Thanks
Thitinat - June 14, 2013 at 2:22pm
Inut1982
Thitinat - June 14, 2013 at 2:23pm
Thitinat Sirichang
Thitinat - June 14, 2013 at 2:24pm
5100200252615
Thitinat - June 14, 2013 at 2:25pm
M.iclarified.com
bigbutts - July 8, 2011 at 9:08pm
Hey! Is there anyway to change the custom logos after the phone has already been jailbroken using the program?
Eddy - January 29, 2011 at 5:18pm
Worked great for me, many thanks. Cydia came up with some errors but worked fine in the end (no fault of this tutorial).
MegaSuperAdrian - December 21, 2010 at 1:46pm
I get “PwnageTool_3.1.5.dmg.5344262.TPB.torrent” instead of “PwnageTool_3.1.5.dmg” and when I double click it it asks me to choose an application to open it. And I\'m stucked. I tried to rename the folder by deleting it\'s last part but it\'s not working. Please help !!!!
Zero - December 21, 2010 at 2:13pm
............ Use uTorrent for Mac or any other BitTorrent app to download PwnageTool
