How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Posted February 15, 2010 at 12:03am by iClarified
DutchNorwegianPortuguese (Brazil)SpanishSwedish
This tutorial will show you how to jailbreak your iPhone 3GS using PwnageTool for Mac. PwnageTool now supports the latest 3.1.3 firmware.

Step One

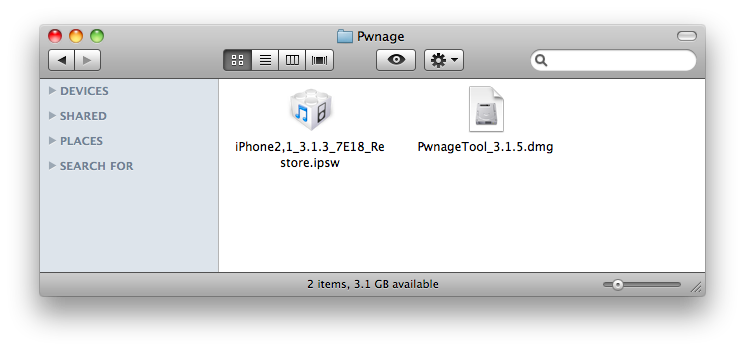

Make a folder called "Pwnage" on the desktop. In it, you will need a couple of things. PwnageTool 3.1.5, found here or here

You will also need the 3.1.3 iPhone firmware.
3.1.3 (3GS): iPhone2,1_3.1.3_7E18_Restore.ipsw


When downloading the IPSW file, it is best to download it with Firefox since Safari often auto extracts it!
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Two

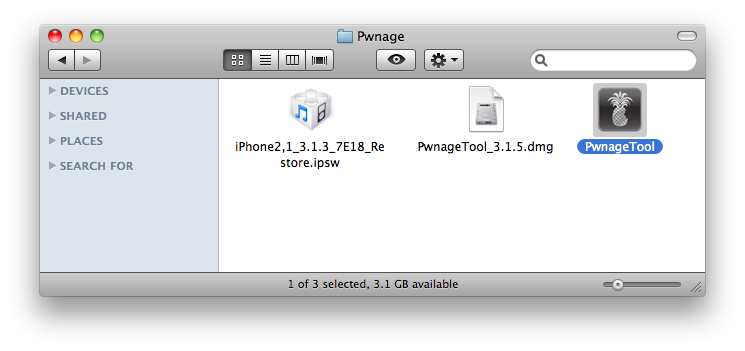

Double click to mount PwnageTool 3.1.5 then drag the PwnageTool icon into the Pwnage folder.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Then from the Pwnage folder double click to launch the PwnageTool application.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Click Ok if presented with a warning.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Three
Click to select Expert Mode from the top menu bar
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Four
Click to select your iPhone. A check-mark will appear over the image of the phone.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Five
Click the blue arrow button to continue. You will be brought to the "Browse for IPSW" page. On my laptop, it automatically found the IPSW. If PwnageTool doesn't automatically find the ipsw file you can click Browse for IPSW....
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Click to select the found IPSW file, a checkmark will appear next to it. Then click the blue arrow button to continue.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Six
You will then be brought to a menu with 7 choices. Click to select General then click the blue arrow button.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

The General settings allows you to decide the partition size. Check Activate the phone if you are not with an official carrier then click the blue arrow button.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

NOTE*: Deselect Activate if you have an iPhone legitimately activated on an official carrier.
NOTE*: You may need to increase the size of the root partition slightly. My first attempt failed at creating the IPSW until I increased the size to about 695 MB.


The Bootneuter settings are greyed out for the 3G iPhone. Click the blue arrow button.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

The Cydia settings menu allows you to create custom packages so you do not have to manually install the necessary them later.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Click to select the Download packages tab. Then click the Refresh button to display all the available packages. Double clicking the package you want will download it and make it available in the Select Packages tab.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Checkmark the ones you want then Click the blue arrow button.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

The Custom Packages Settings menu displays listed package settings for your custom IPSW. For know leave these settings as is. Click the blue arrow button to continue.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

The Custom Logos Settings menu allows you to add your own images as boot logos. Click the Browse button to select your Boot logo and Recovery logo. If you would like to use the iClarified ones they can be found here: Boot Logo, Recovery Logo
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Remember the rules for them: RGB or Grayscale format with Alpha channel and dimensions below 320x480...
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Click the blue arrow button to continue.

Step Seven
You are now ready to begin the pwnage process! Click the Build button to select it then click the Blue arrow button to begin.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Eight
You will be asked to save your custom .ipsw file. Save it to your Pwnage folder you created on your Desktop.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Your IPSW is now being built. Please allow up to 10 minutes.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

You will be asked to enter your administrator password. Do this then click the OK button.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

You will be asked if your iPhone has been pwned before. If unsure click the NO button.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Nine
If your iPhone isn't already connected to the computer connect it now.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

After delivering the payload PwnageTool will have placed your iPhone in recovery mode. Click OK to close the popup message telling you this.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

iTunes will also pop-up saying it has detected an iPhone in recovery mode.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Ten
In iTunes, hold the Alt/Option key and click Restore.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Eleven

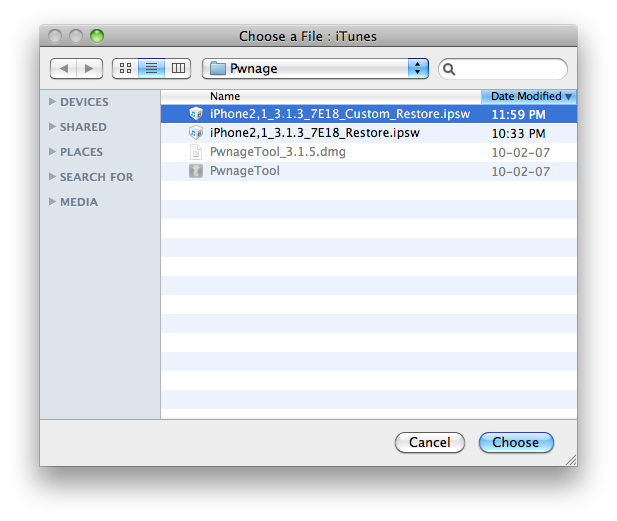

Navigate to the Pwnage folder on your desktop using the dialog window that appears. Select the custom IPSW that was created (iPhone2,1_3.1.3_7E18_Custom_Restore.ipsw) and click the Open button.
How to Jailbreak Your iPhone 3GS Using PwnageTool [Mac]

Step Twelve
iTunes will now restore the firmware on your iPhone. This can also take up to 10 minutes. Once done you will be rebooted into jailbroken iPhone OS 3.1.3!



***THANKS: Thank you to the Dev-Team for their hard work in making this jailbreak and tutorial possible!
