How to Make iPhone SMS Alert Vibrate Longer Using Windows

Posted January 20, 2008 at 3:33pm by iClarified
Currently the iPhone SMS Alert vibrates for about .4 of a second. Barely long enough to feel it. You can make it vibrate longer by following these easy steps.

You can find a Mac version of this tutorial here:
How to Make iPhone SMS Alert Vibrate Longer

Step One
Click to launch WinSCP from your list of Programs.
How to Make iPhone SMS Alert Vibrate Longer Using Windows


Step Two

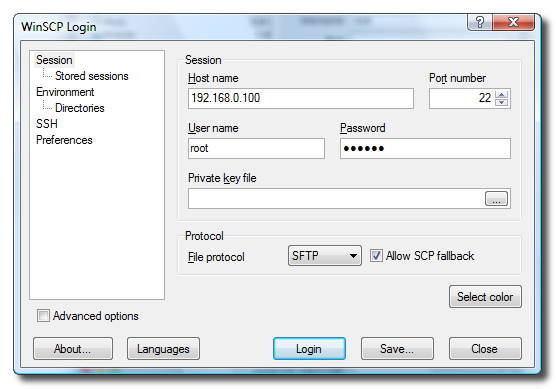

Enter your iPhone's IP Address in the Host Name: field. Enter root into the User name field. Enter alpine or dottie in the Password field. Now click the Login button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

If you do not know you iPhone's IP Address you can find it here:
How to Find the IP Address of Your iPhone

Step Three

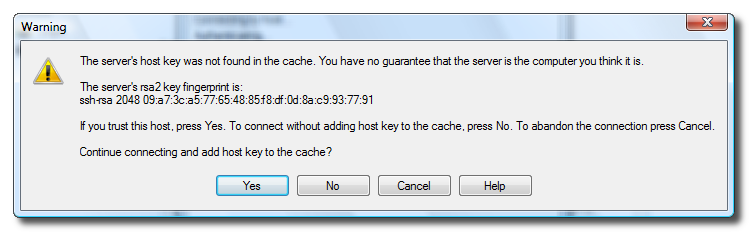

If asked to add the host key to cache click the Yes button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Four

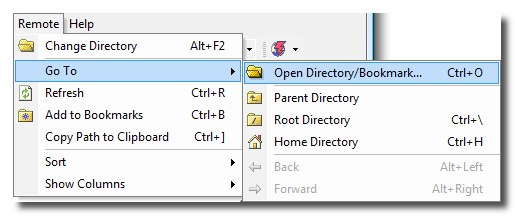

Once WinSCP logs into your iPhone click Open Directory/Bookmark from the Remote:Go To Menu.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Five

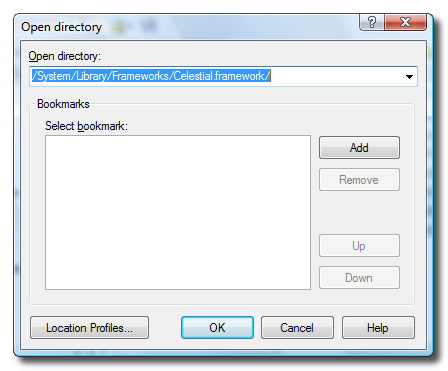

Enter /System/Library/Frameworks/Celestial.framework/ into the Open directory field. Then click the Ok button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Six

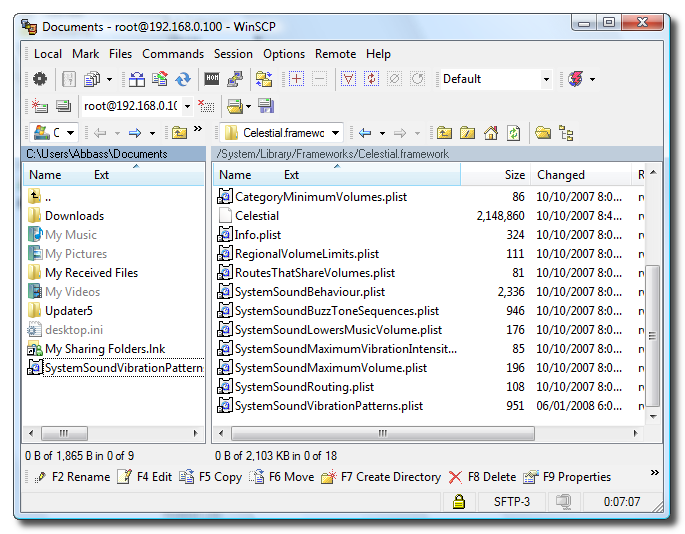

WinSCP will go to the Celestial.framework directory. Drag SystemSoundVibrationPatterns.plist from the right pane to the left pane.

If a message box pops up click the Copy button to begin copying the file.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Seven

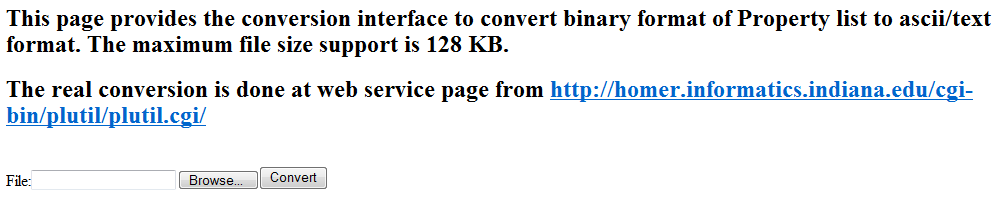

Open your web browser and navigate to:
http://140.124.181.188/~khchung/cgi-bin/plutil.cgi
How to Make iPhone SMS Alert Vibrate Longer Using Windows

NOTE***: This link converts the plist from binary to text. Thanks to Snowbird for providing this link. If you have already done this once before then there is no need to do it again.

Step Eight

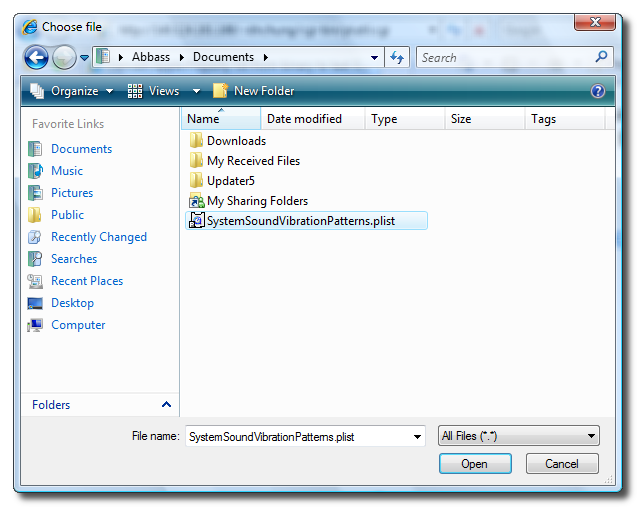

Click the Browse button and select the file you just downloaded from the iPhone (SystemSoundVibrationPatterns.plist). Then click the Open button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Nine

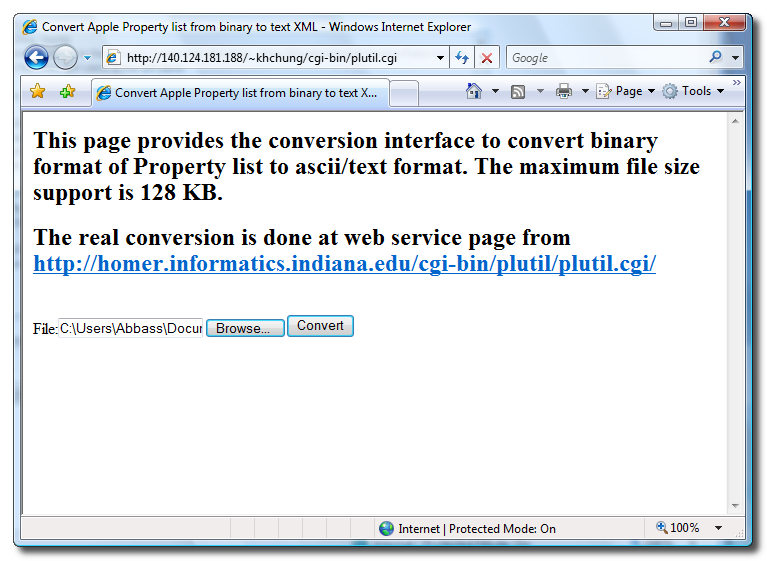

Back on the webpage click the Convert button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Ten

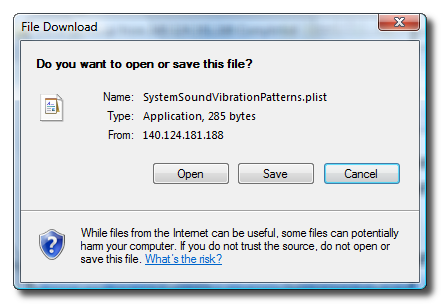

If prompted whether to open or save click the Save button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Eleven

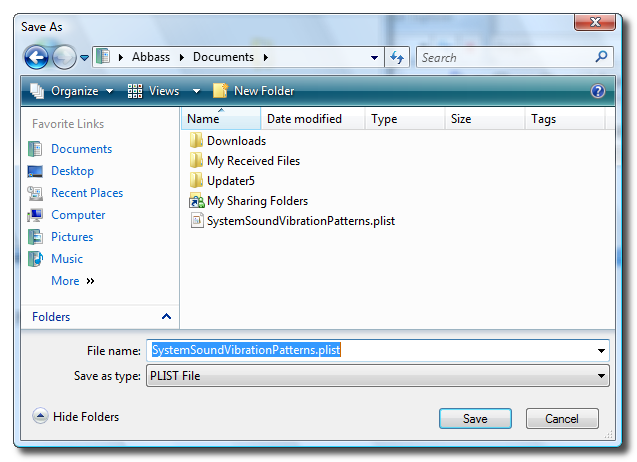

Navigate to the location we open the file from originally then click the Save button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Twelve

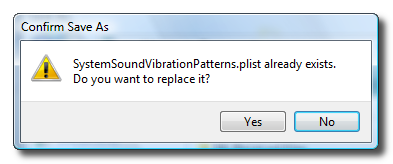

You will be notified that the file already exists. Click the Yes button to overwrite the binary version with the newly converted text version.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Thirteen

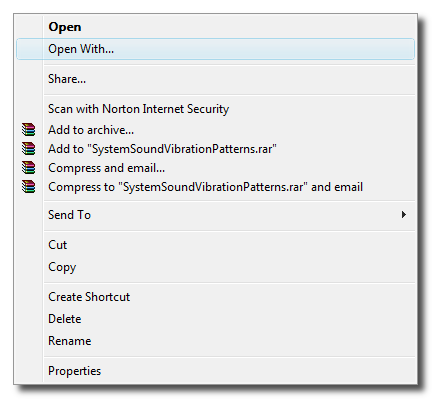

Back in WinSCP right click the SystemSoundVibrationPatterns.plist file in the left pane and select Open With from the popup menu.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Fourteen

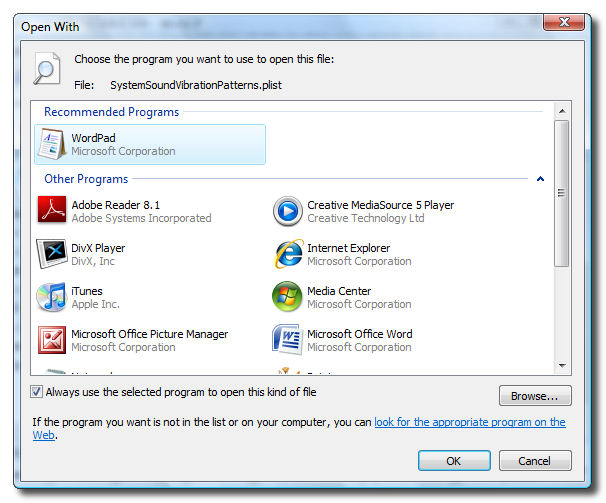

From the popup window that appears select the Wordpad program and click the Ok button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Fifteen

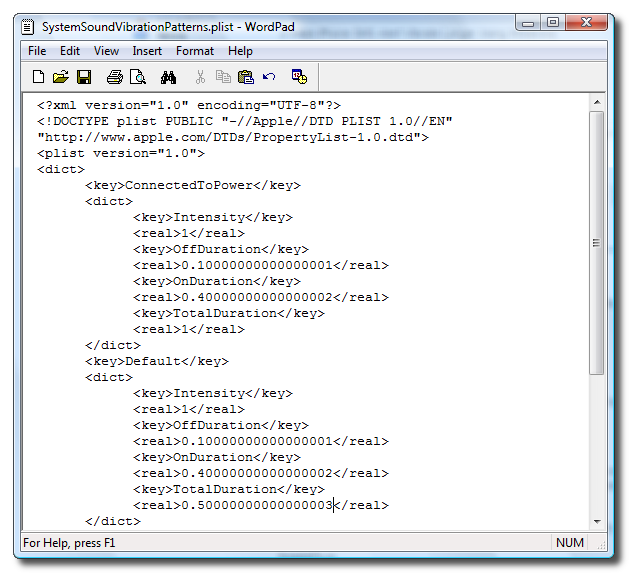

Wordpad will open SystemSoundVibrationPatterns.plist. Notice that under the Default key you see OffDuration, OnDuration, and TotalDuration.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Sixteen

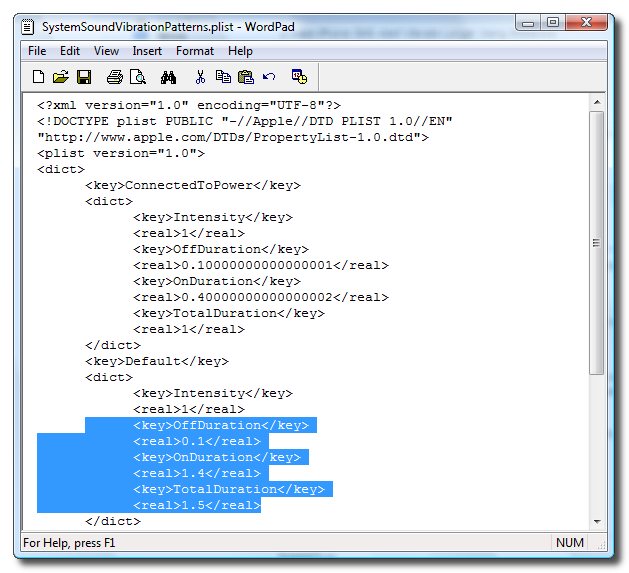

Change OnDuration to a longer value. I set it to 1.4 instead of .4, increasing it by 1.0. Then add the same amount you added to OnDuration to the TotalDuration number. I set it to 1.5 increasing it by 1.0.

A setting of 1.4 will make your phone vibrate for around 1.4 seconds.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Ten
Select Save from the File Menu.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Eleven
Now back in WinSCP drag SystemSoundVibrationPatterns.plist from the left pane to the right pane.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

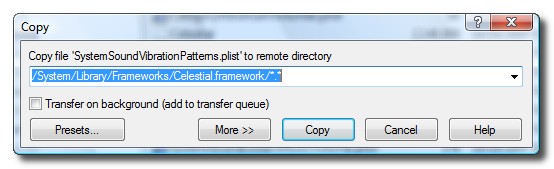

It will ask you to confirm the copy. Click the Copy button.
How to Make iPhone SMS Alert Vibrate Longer Using Windows

Step Twelve
Reboot your iPhone to see the changes take effect !

NOTES***:
A big thanks goes out to one4house, fabiopigi, and Snowbird for figuring this stuff out!
