Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Posted December 28, 2011 at 5:19am by iClarified
EnglishItalianSpanish
A continuación las instrucciones para liberar su iPhone 3GS con iOS 5.0.1 utilizando PwnageTool para Mac.

Paso Uno

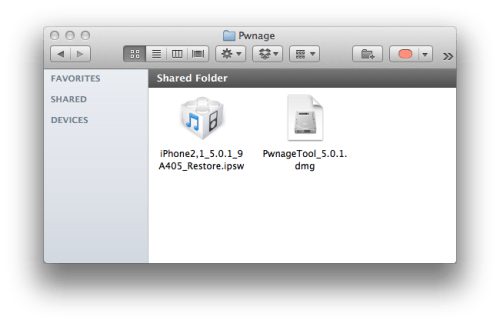

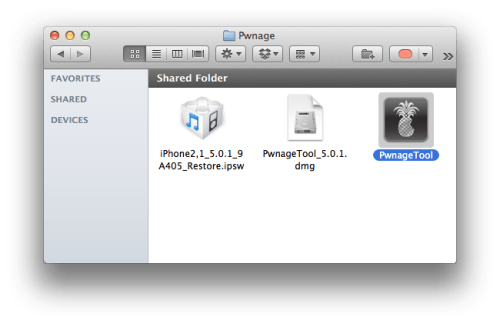

Cree una carpeta llamada "Pwnage" en el desktop. En ella, necesitará un par de cosas. PwnageTool 5.0.1, encontrado aquí.

También necesitará el firmware de iPhone 5.0.1, encontrado aquí.


Al descargar el archivo IPSW, es mejor hacerlo con Firefox, ya que Safari frecuentemente lo autoextrae!
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Dos
Haga doble click para montar el PwnageTool, luego arrastre el ícono de PwnageTool dentro de la carpeta "Pwnage".
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Luego, desde la carpeta "Pwnage", haga doble click para lanzar la aplicación "PwnageTool"
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

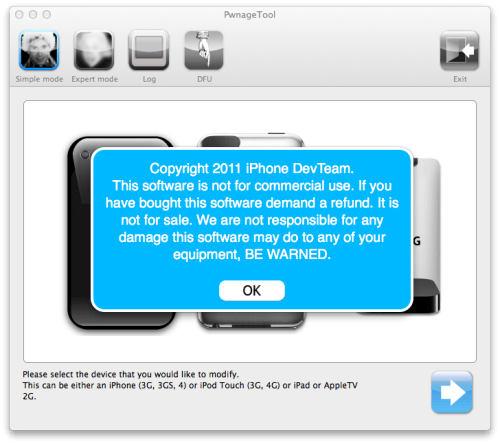

Haga click en Ok si se le presenta el siguiente warning:
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Tres
Haga click para seleccionar "Expert Mode" en la barra de menú de la parte superior.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Cuatro

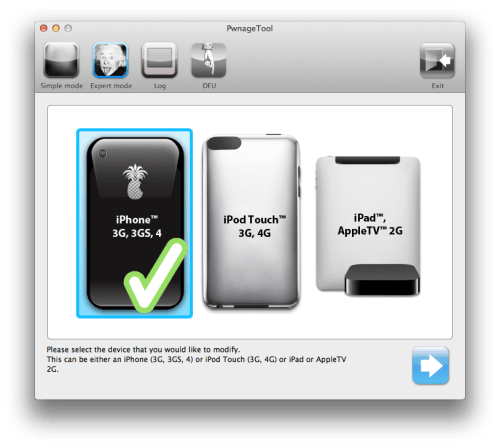

Haga click para seleccionar su dispositivo. Un checkmark aparecerá sobre la imagen del dispositivo. Seleccione la flecha azul para continuar.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Cinco

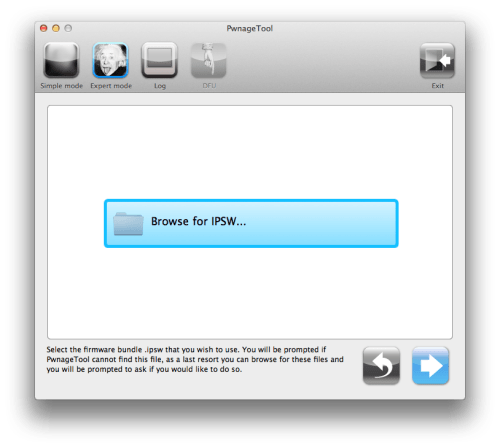

Será dirigido a la página de "Browse for IPSW". Seleccione el botón "Browse for IPSW..."
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

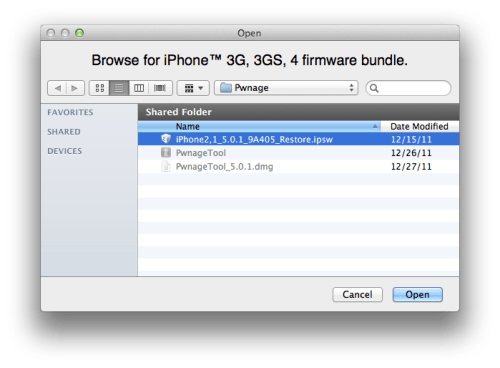

Desde la ventana emergente, seleccione su archivo de firmware en la carpeta "Pwnage", y haga click en el botón "Open".
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Seis

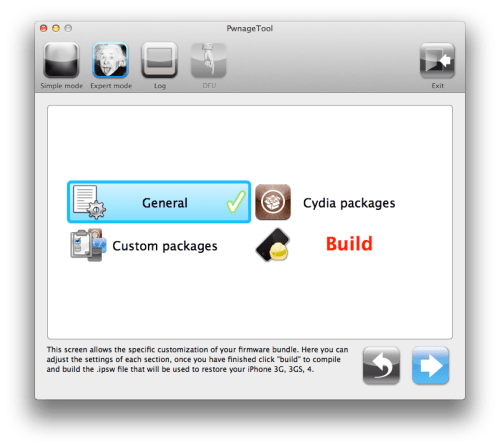

Será entonces llevado a un menú con varias opciones. Seleccione "General" y luego el botón con la flecha azul.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

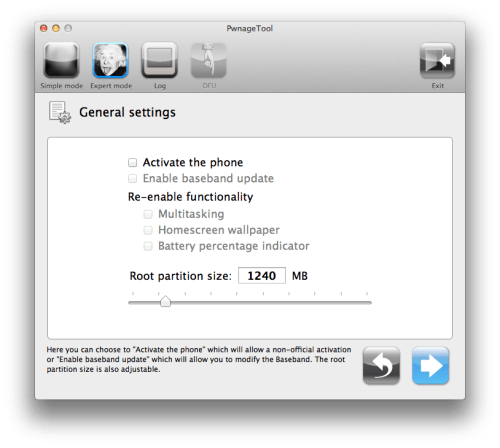

Las configuraciones en "General" le permiten decidir el tamaño de la partición. Escoja "Activate the phone" si no lo tiene con un carrier oficial y luego presione el botón de la flecha azul.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

NOTA*: No seleccione "Activate" si tiene un iPhone legitimamente activado con un carrier oficial.

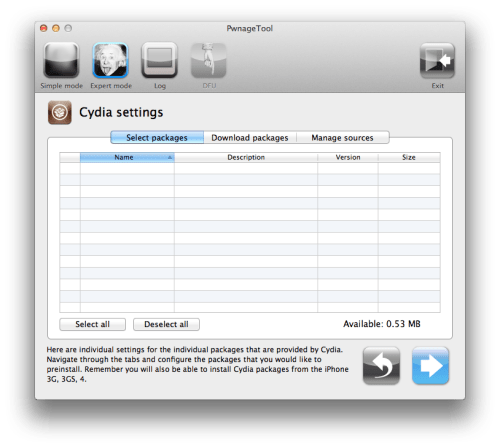

El menú de configuraciones "Cydia" le permiten crear paquetes personalizados, de forma que no tenga que instalar manualmente los paquetes más tarde.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

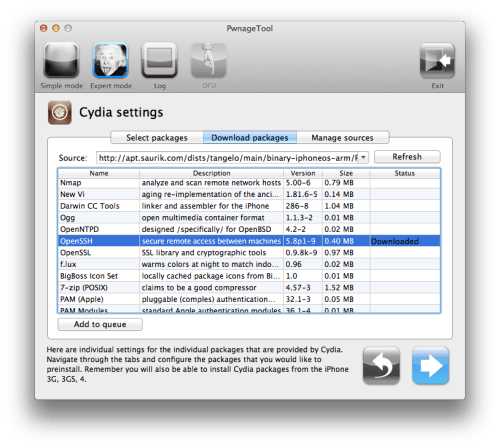

Haga click para seleccionar el tab "Download packages". Luego, seleccione el botón "Refresh" para mostrar todos los paquetes disponibles. Haciendo doble click en el paquete deseado lo descargará y colocará como disponible en el tab "Select Packages".
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

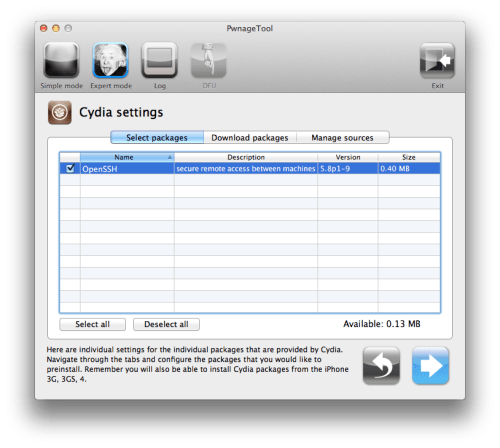

Seleccione con un checkmark los que guste, luego seleccione el botón de la flecha azul.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

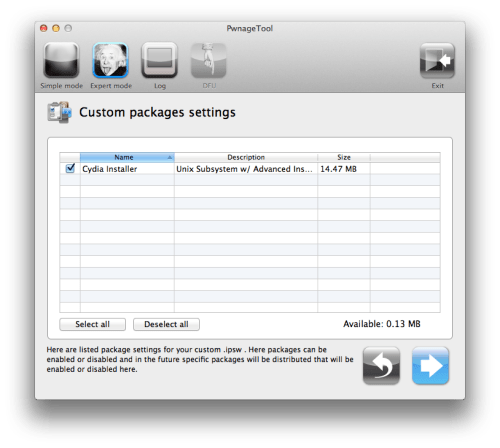

El menú "Custom Packages Settings" muestra las configuraciones de los paquetes listados para su IPSW personalizado. Por ahora deje las configuraciones como están. Seleccione el botón de la flecha azul para continuar.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Siete

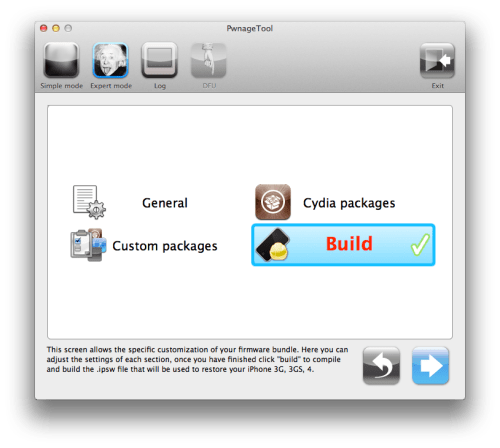

Ya está listo para comenzar el proceso de Pwnage! Haga click en el botón "Build" para seleccionarlo y luego el botón de la flecha azul para comenzar.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Ocho

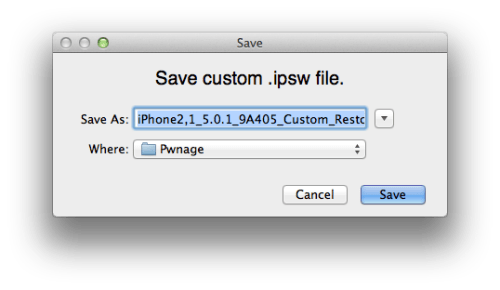

Se le pedirá el guardar su .IPSW personalizado. Guárdelo en la carpeta "Pwnage" que creó en su desktop.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

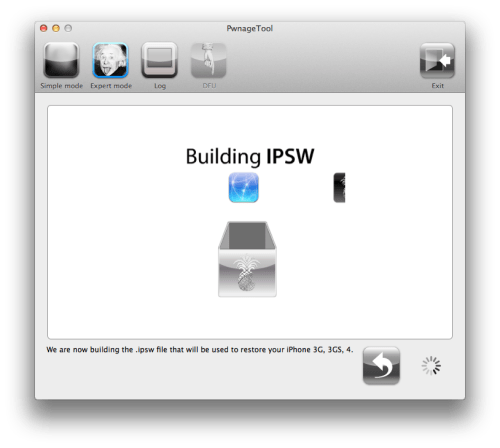

Su IPSW está siendo ahora construido. Por favor espera hasta unos 10 minutos.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

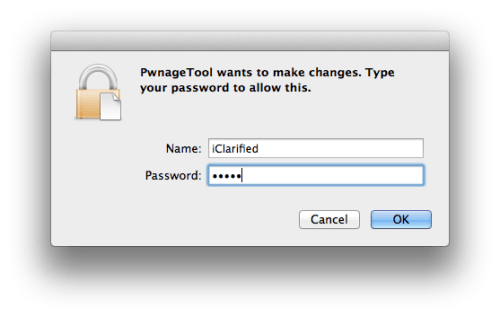

Se le pedirá su password de administrador. Hágalo, y luego presione el botón "OK".
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Nueve

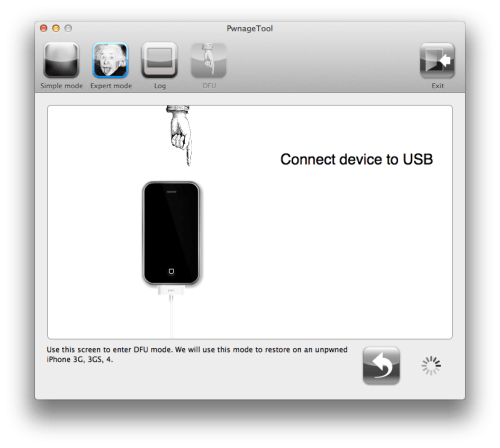

Una vez que su IPSW haya sido construido se le pedirá el conectar su iPhone a la computadora. Una vez que detecte su dispositivo, PwnageTool le guiará en los pasos a seguir para poner su iPhone en modo DFU.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

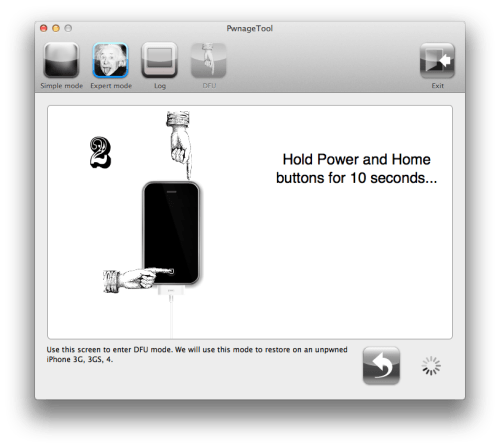

Presione y mantenga presionado los botones de Power y Home por 10 segundos.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

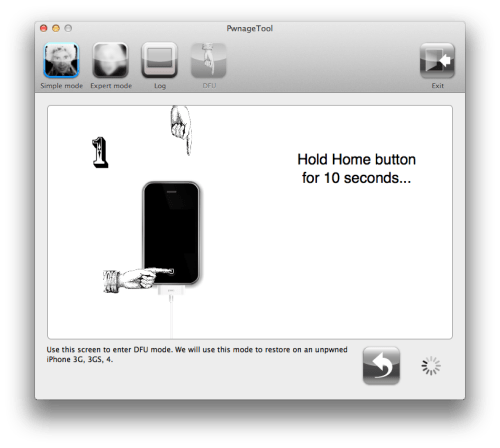

Luego, suelte el botón de Power y continue presionando el de Home por otros 10 segundos.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

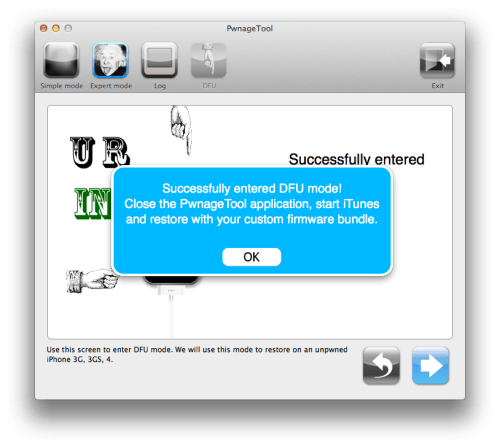

Una vez que su iPhone está en modo DFU, PwnageTool le pedirá iniciar iTunes.
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Diez

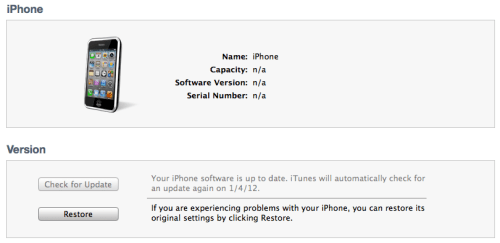

En iTunes, mantenga presionada la tecla "Alt/Option" y haga click en "Restore".
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Once

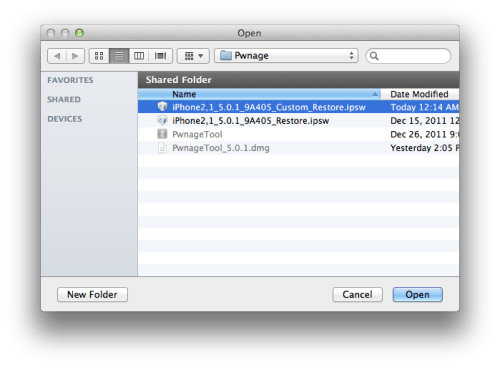

Navegue a la carpeta "Pwnage" en su desktop usando la ventana de diálogo que aparece. Seleccione el IPSW personalizado que fué creado previamente y haga click en el botón "Choose".
Cómo aplicar jailbreak a su iPhone 3GS utilizando PwnageTool (Mac) [5.0.1]

Paso Doce
iTunes restaurará ahora el firmware en su iPhone. Esto también puede tomar hasta 10 minutos. Una vez listo, se reiniciará con iOS 5.0.1 liberado!


***AGRADECIMIENTOS: Gracias al iPhone Dev-Team, Chronic Dev-Team, I0nic, y Geohot por su duro trabajo en hacer este jailbreak y tutorial posible!
