iFixIt Apple TV Teardown Reveals 8GB Storage, 256MB RAM

iFixIt Apple TV Teardown Reveals 8GB Storage, 256MB RAM

Posted September 29, 2010 at 3:41pm by iClarified · 9563 views

Findings:
● The solder pads near the side of the logic board look to be a *perfect* match for a dock connector!
● A couple of connectors shy of a full-on computer
● Samsung K9LCG08U1M 8GB NAND Flash chip
● Wi-Fi board brought to you courtesy of Panasonic!
● Broadcom BCM4329XKUBG 802.11n Wi-Fi/Bluetooth/FM chip on the Panasonic board,
● 256 MB RAM
● Just 5.95 watts

Apple TV Repairability: 8 out of 10 (10 is easiest to repair)
● Relatively easy to open case that can be easily reassembled.
● Separate power supply board that can be replaced independently of the logic board.

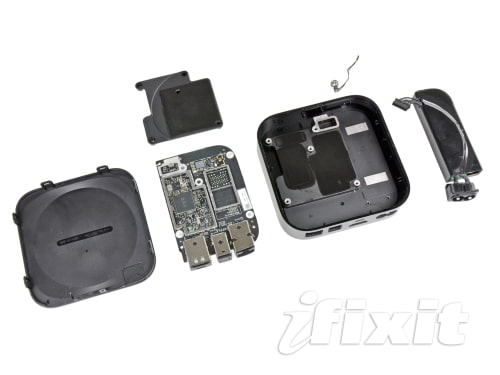

● Simple design - there's 6 pieces!
● Relatively common fasteners (Phillips and T6 Torx) found throughout.
● Thermal pads rather than thermal paste means no messy cleanup.
● Lots of expensive electronics housed on one singular board means that if one fries, the board is toast.
