How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Posted November 22, 2007 at 7:27pm by iClarified
These are instructions are on how to unlock a 1.1.1 iPhone or an iPhone that has been upgraded to 1.1.2 firmware. These instructions do not work for a 1.1.2 iPhone new from the store.

If your firmware is 1.1.1 please use iTunes to update to latest firmware(1.1.2) before starting this tutorial! You need to do this otherwise the unlocker used in this tutorial won't work.


DOWNGRADE TO 1.1.1


For this you will need iBrickr 0.91, iTunes 7.5, and iPhone Firmware 1.1.1

- Update iTunes to get the latest version.
- Download iBrickr 0.91 from: here
- Download iPhone Firmware 1.1.1 from: here

Step One
Connect your iPhone to your PC and launch iTunes
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Two
Press and hold Home and Power button of your iPhone at the same time. Once the screen turns black, release the power button but keep on holding the Home button until Apple logo changes to the restore screen. Note: The screen may also just stay black. This is normal. Just hold the home button till iTunes detects the iPhone.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Three
iTunes will then detect an iPhone in restore mode.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Hold down the Shift key and click Restore.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

A dialog window will appear asking you to select the firmware to restore to. Select the 1.1.1 firmware we downloaded earlier (iPhone1,1_1.1.1_3A109a_Restore.ipsw)
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

At the end of the restore you will get Error 1015. This is okay. Simply click the Ok button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Another popup will appear telling you your iPhone is in recovery mode. Click the Ok button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Four
Exit iTunes by selecting Exit from the File menu. Press Control+Alt+Delete on the keyboard. Select to Start Task Manager.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Click to select the Processes tab from the Windows Task Manager window.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Select iTunesHelper.exe from the list of processes and then click the End Process button. A popup will appear asking you to confirm the end process. Click the End Process button from the popup.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

You can now close Windows Task Manager by click the X at the top right of the window.

Step Five

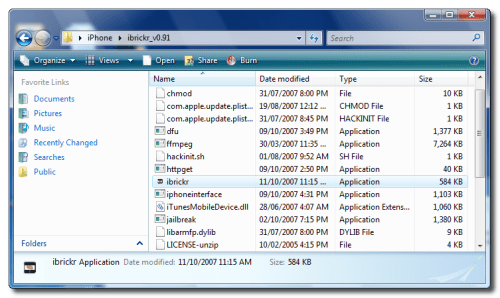

You will notice your iPhone is still in recovery mode. To exit recovery mode launch iBrickr.exe which you downloaded earlier.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Click the Boot the phone link.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

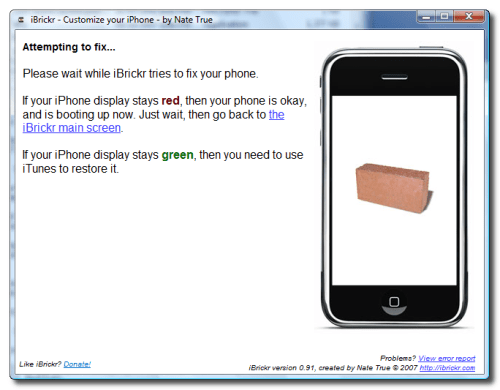

iBrickr will say Please wait while iBrickr tries to fix your phone.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

The iPhone will reboot and display the Activate screen again!
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

You can now close iBrickr.


JAILBREAK 1.1.1

Step One
At the "Activate iPhone" screen move the slider to the right for emergency calling.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Two
Dial "*#307#" then press the Call button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Three
You will hear the phone call itself. Use the back arrow to clear the number you just enter. Now dial "0" then press the Call button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Four
Now you will be able to see the incoming call. Press the Accept button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Five
Now press the Hold button to put the call on hold.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Six
The phone will call itself again. This time press the Decline button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Seven
We now are shown the keypad again. Click the contacts tab at the bottom. We are now presented with an empty contacts menu. Click the plus(+) button to add a new contact.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Eight
Press Add New URL.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Nine
Input prefs: as the url then press the Save button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Ten
Press Add New URL again.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Eleven
Input http://jailbreakme.com as the url then press the Save button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twelve
Now in the contact view you will see the 2 urls. Press the prefs: url.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Thirteen
This will bring up the iPhone's Settings Menu. Select your wireless network from the Wi-Fi category. Press the Settings button at the top left to go back to the Settings Menu.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Fourteen
Select the General category from the Settings Menu. Then select the Auto-Lock subcategory.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Press to select Never from the list of Auto-Lock times.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Press the Settings button at the top left to return to the settings window.

Step Fifteen
Press the Home button. At the "Activate iPhone" screen move the slider to the right for emergency calling.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Sixteen
Now dial "0" then press the Call button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Seventeen
Now you will be able to see the incoming call. Press the Accept button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Eighteen
Now press the Hold button to put the call on hold.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Nineteen
The phone will call itself again. This time press the Decline button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty
We now are presented with our contacts menu. Press to select the contact we added.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty One
Press the http://jailbreakme.com url. This will open Safari and take you to jailbreakme.com
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty Two
Scroll down to the bottom of the page and press Install AppSnapp.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows


Phone will return to activation screen, but don't panic, just wait. iPhone should automaticly restart after almost a minute. When the phone starts again, it should no longer say Slide to emergency, but rather Slide to Unlock. This means it was successfull!
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows


UNLOCK 1.1.1
Step One
Press to select Settings from your springboard.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Two
Press to select General from the list of categories.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Three
Press to select Auto-Lock from the General menu.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Four
Press to select Never from the list of Auto-Lock times.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Five
Press the Home button to return to your springboard.

Step Six
Press to select Installer from your springboard.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Seven
Press Donate Later to continue into the Installer app. Note: Come back later and donate as this app is helping you out a ton!
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Eight
Press to select the Install tab at the bottom of the screen.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Nine
Press to select the System category.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Ten
Press to select BSD Subsystem from the list of packages.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Eleven
Press to select the Install button at the top right.

Step Twelve
Press the Install button to confirm installation.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Thirteen
Once installation is complete press to select the Sources tab at the bottom right of the screen.

Step Fourteen
Press to select the Edit button at the top right hand corner.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Fifteen
Press to select the Add button at the top left hand corner.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Sixteen
Enter http://installer.iClarified.com as the source url and press the Ok button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Seventeen
Press the Done button at the top right of the screen.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Eighteen
Press the Install tab at the bottom of the screen.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Nineteen
Press to select iClarified from the list of categories.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty
From the list of packages press to select anySIM 1.2u.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty One
Press the Install button at the top right of the screen.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty Two
Press to select the red Install button that appears.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty Three
Once install is complete return to the springboard by pressing the Home button.

Step Twenty Four
Press the anySIM icon to begin the unlock. How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty Five
Make sure your authorized SIM is in the phone and press the Ok button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty Six
Slide to slider to right to begin unlocking
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty Seven
Scroll down and press Unlock my phone
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twenty Eight
Once its done click the Ok button. and you will be returned to your springboard.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

UPGRADE TO 1.1.2
- Download the Jailbreak 1.1.2 package from: 1.1.2-jailbreak.zip
- Download the new ipetools from: ipetools.zip
- Download the 1.1.2 Firmware from: here

At this point normally we would have installed OktoPrep from Installer (Tweaks 1.1.1 Category). The new jailbreakme.com is supposed to do this for you now. I've heard a couple reports of the site not doing it so I've left this in the tutorial for now!

Step One
Reboot your phone by holding down the Sleep/Wake button for three seconds. Move the power slider to right to power down. Then press the Sleep/Wake button again to power back on.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Two
Launch iTunes.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

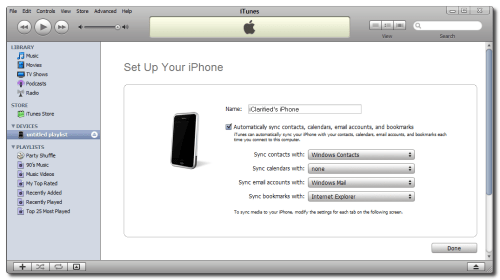

Name your iPhone if it asks then click the Done button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Three
If you get a dialog window asking you to update to 1.1.3 click the Don't Install button.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows
(NOTE*: The image says 1.1.2 in this example because i don't have the new image yet).

Hold down Shift and click the Update button to update to 1.1.3
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

A dialog window will appear asking you to select the firmware to restore to. Select the 1.1.2 firmware we downloaded earlier (iPhone1,1_1.1.2_3B48b_Restore.ipsw)

Once complete a dialog box will appear letting you know you have updated successfully.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

When it finishes updating, the iPhone will have been restarted. The new emergency slider and connect to iTunes image will be on the iPhone.

Step Four
Close iTunes then extract the 1.1.2-jailbreak.jar we downloaded earlier. A folder will be extracted called 1.1.2-jailbreak.

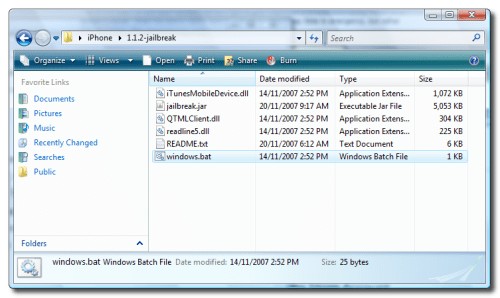

Double click windows.bat from within this folder to start the jailbreak.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Five
A popup will appear asking you to enter the desired password and whether or not to enable SSH. Make sure you check to enable SSH and then press Jailbreak!
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

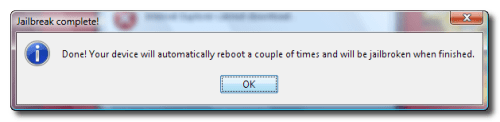

Whens it done a popup will appear letting you know the jailbreak has been successful! During this process the phone may be rebooted a few times.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Six
From your springboard press to run the Installer application.

Press to select the Install tab at the bottom.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Press to open the System category.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

From the System Category press to select BSD Subsystem.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Then press the Install button at the top right of the screen. When prompted select Install again to begin the installation.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Once the install has finished you will be placed back at the Category list.

Step Seven
Extract ipetools.zip that we downloaded earlier. You will extract a folder called ipetools. Inside this folder is "ipe-lockdownd-tools.tgz". We need to copy this to the iPhone.

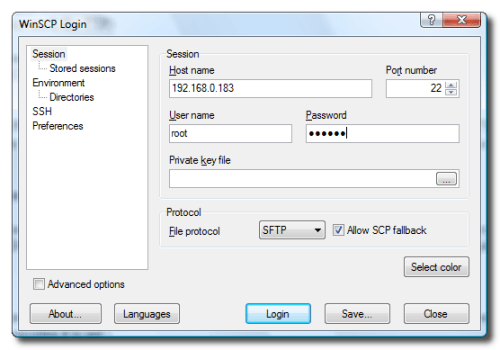

Go back to WinSCP. Log back into your iPhone using the same procedure as before.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

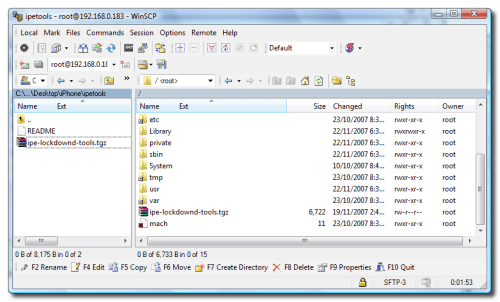

On the left navigate to the folder that contains "ipe-lockdownd-tools.tgz" and on the right navigate to your root directory. Copy "ipe-lockdownd-tools.tgz" to your root directory.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Eight

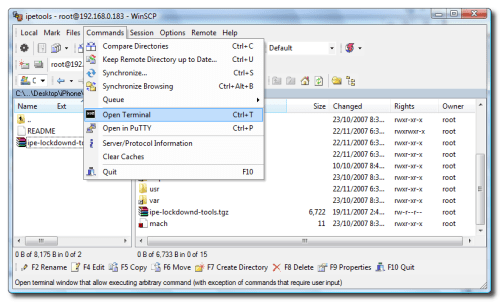

Select Open Terminal from the Commands menu.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

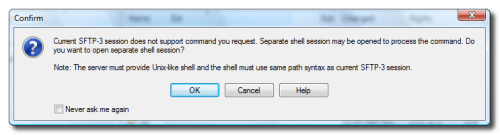

You may be asked to Confirm. Click Ok.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Nine

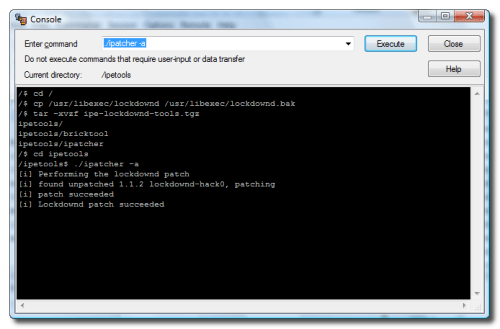

Enter the following commands then press the Execute button after each line:

cd /
cp /usr/libexec/lockdownd /usr/libexec/lockdownd.bak
tar -xvzf ipe-lockdownd-tools.tgz
cd ipetools
./ipatcher -a

How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Ten
Reboot your phone by holding down the Sleep/Wake button for three seconds. Move the power slider to right to power down. Then press the Sleep/Wake button again to power back on.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Eleven
Go back to WinSCP. Log back into your iPhone using the same procedure as before.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Twelve
Select Open Terminal from the Commands menu.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

You may be asked to Confirm. Click Ok.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Thirteen

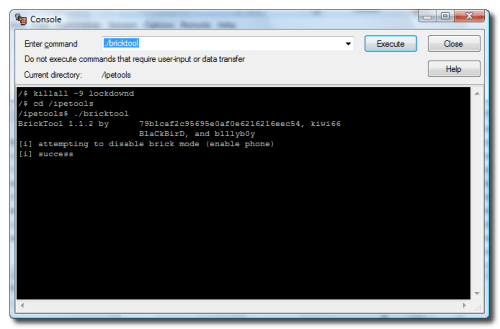

Enter the following commands then press the Execute button after each line:

killall -9 lockdownd
cd /ipetools
./bricktool

How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

Step Fourteen
Reboot your phone by holding down the Sleep/Wake button for three seconds. Move the power slider to right to power down. Then press the Sleep/Wake button again to power back on.
How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows

You can now put in any SIM. You have an unlocked iPhone!!!

NOTES:
I'd rapidly improving the quality of my own screenshots; however, some of them have been obtained from around the net. Most notably I'd like to give thanks to Mark from HacktheiPhone.

THANKS:
Well, I also really need to thank all the developers who have been working like crazy to make this tutorial even possible, the iPhone Dev Team and the ipetools creators - 79b1caf2c95695e0af0e6216216eec54 -BlaCkBirD -Zibri -b1llyb0y -kiwi66 -rdh.
A big thanks to chainsawwws who helped me get through these steps successfully!
Add Comment
Would you like to be notified when someone replies or adds a new comment?
Yes (All Threads)
Yes (This Thread Only)
No
iClarified Icon
Notifications
Would you like to be notified when we post a new Apple news article or tutorial?
Yes
No
Comments (51)
You must login or register to add a comment...
Avram M.
Avram M. - July 1, 2017 at 3:30pm
There is a much easier way to unlock your phone . here are the steps: 1. download iTunes on your computer 2.download ibrickr on your computer 3. connect your iPhone to your computer with USB. 4.launch ibrickr from the directory you installed it to 5.in ibrickr you will see some instructions . They are to jailbreak your phone. do those then relaunch ibrickr . 6 . Click the applications tab .you will see more instructions. when you jailbroke it did not automatically install installer for you . these instructions are to do that .do those .7.click the browse tab 8. click the anysim tab. This will install anysim on your iPhone . 9. Disconnect your phone from the computer 10. Insert your new SIM card 11 launch anysim. 12. click the ok tab then wait for it to complete. It should take about 15 minutes.
NIcole
NIcole - February 17, 2008 at 5:58pm
HK, Please let me know if you figure out how to get past the anysim error message.
HK
HK - February 17, 2008 at 12:37am
Hey, Ali try running the appsnap while you're connected to iTunes. I have the same problem Nicole has, I keep getting "error package download failed". Then I downloaded anysim 1.2 from a different source. It said "anysim cannot unlock this phone. anysim will now quit". The first time I followed this tutorial everything went smoothly, I only got problems after I restored my firmware.
rockingkev
rockingkev - February 15, 2008 at 9:00pm
Hey, is there abetter way to get or a simpler way to get iWorld the iClarified way is too hard to follow......I have a 1.1.3 iphone that has been jailbroken...... also how do I upgrade my firm ware to 4.03.13 from 4.02.13. Need detail specs for both...I'm not a technical person.....PLEASE HELP!!!!!!
nicole
nicole - February 15, 2008 at 7:41pm
whenever i try to install anySIM it says "error package download failed". what am i doin wrong? im on step 20 of Unlocking
ali
ali - February 13, 2008 at 10:56am
helppppp i am on 1.1.1 and i ran install app snap .it went to the activation screen but never did anything help meee
Regie
Regie - February 9, 2008 at 11:28pm
iClarified, how can i run the windows.dat? I double click this file but doesnt work. Please help help
Regie
Regie - February 9, 2008 at 11:22pm
nice tutorials
Mike
Mike - January 12, 2008 at 10:18pm
I just bought a new 1.0.2 iPhone from the AT&T store. How should I unlock it with a Windows PC? Should I ugrade it to 1.1.1? Then upgrade from 1.1.1 to 1.1.2? And then follow the tutorial "How to Unlock a 1.1.1 or 1.1.2 Upgraded iPhone Using Windows"? Thank-you for the help.
raheel
raheel - January 12, 2008 at 3:47am
hi i am stuck at step 14 my iphone crashes as soon as i go into the wifi connections and restored it couple of time but nothing it still does the same thing ... :( plz help
Andrew
Andrew - January 12, 2008 at 1:22am
I receive a message when i run jailbreak for 1.1.2 that i did not rut okto prep although i did run it.. Any ideas?
Aljan
Aljan - January 12, 2008 at 12:05am
Jin, I had the same problem and what i did was repeating the anySim process this time with version 1.2 instead of 1.1 (after completing the whole guide and getting the incorrect Sim message) with the ATT card in. It workd for me, just run anySIM1.2 at the end with ATT card, shut down iPhone, insert your SIM and done. Hope it helps
Andrew
Andrew - January 11, 2008 at 3:37pm
I followed your tutorial but when i try to install the installer from the jailbreakme.com it just goes to the activation screen without doing anything. I tryied it several times, but it jus won't work. PLS help. I have to mention that i had an unlocked 1.1.1 phone which crashed and i had to update it to 1.1.2. At which point i started following your tutorial. Tnx
fong
fong - January 8, 2008 at 12:46pm
hey iClarified, great work, but i was just wondering, would this method jailbreak and unlock OTB 1.1.2 (week 50) iphones? i heard there was a problem with the baseband, is this true? can this resolve the baseband too?
99Percent
99Percent - January 3, 2008 at 5:40pm
Okidoke, fixed the keypad issue and also crashing on sms and phone features. What I did was install the iWorld app, and that did it. Maybe you should note that too in the tutorial. Also another tip: copy and paste the commands when using the terminal tool to avoid typos. Thanks again.
99Percent
99Percent - January 3, 2008 at 3:17pm
Just did the whole tutorial. My phone is of the first release (bought it June 29) and was activated with AT+T with update to 1.1.2. Seems to works now with Telcel Mexico. The only issue I have right now is that the keypad aborts at the first number entered. Still works with contacts. A couple of notes on the tutorial: Should be noted never to disconnect the iPhone from the usb. Also I needed to reinstall the OpenSSH after step 6 in the upgrade 1.1.2 process (maybe because I had updated the installler app). Thanks and great work!!!
iClarified
iClarified - December 30, 2007 at 1:52pm
jin, did AnySIM install successfully ? Did you update (not restore) to 1.1.2 successfully?
iClarified
iClarified - December 30, 2007 at 1:50pm
Jerry, make sure you completed step 7 correctly and copied the file to the right location. Use the command 'ls' in Terminal to make sure the file is there. If the file is not present then the 'tar' command will definitely not work.
jin
jin - December 30, 2007 at 12:31am
thanks for great tutorial, my i phone verison is 44th week, i try to unlock it with your instruction. but after i done all the steps it still says "this iphone must be used with an approved sim" can you help me to solve the problem. thanks!
jerry
jerry - December 30, 2007 at 12:10am
hello, u tutorial is great. but i got stuck on the step 9, when it asked me to run WinSCP to open commands, when i entered command tar -xvzf ipe-lockdownd-tools.tgz, it fails with return code 2 and error msg. and it keep say no such file. can you please help me to fix it, i got stucked. thanks!
Recent. Read the latest Apple News.
RECENT
Tutorials. Help is here.
TUTORIALS
Where to Download HomePod Firmware Files From
Where to Download macOS Sequoia
AppleTV Firmware Download Locations
Where To Download iPad Firmware Files From
Where To Download iPhone Firmware Files From
Deals. Save on Apple devices and accessories.
DEALS
