Jak wygenerować unikalny certyfikat twojego iPhone 3GS'

Posted June 26, 2009 at 1:52am by iClarified
Instrukcja krok po kroku jak wygenerować unikalny certyfikat twojego iPhone 3GS' iBSS używając Windows PC

Apple dołożył dodatkową warstwę zabezpieczeń wraz z prowadzeniem iPhone 3GS zwaną ECID. Gdy iTunes uruchamia restore/odtwórz proces, w tej samej chwili kontaktuje się z serwerem Apple by wygenerować podpis odpowiadający tylko jednemu (twojemu) urządzeniu. Ważne jest by wyłonić te podpisy zanim wyjdzie poprawione oprogramowanie do twego iPhona 3GS.

Krok pierwszy
Wprowadź swgo iPhona w " recovery mode ". Jeżeli nie wiesz jak, skorzystaj z tego opisu this tutorial.

Krok drugi

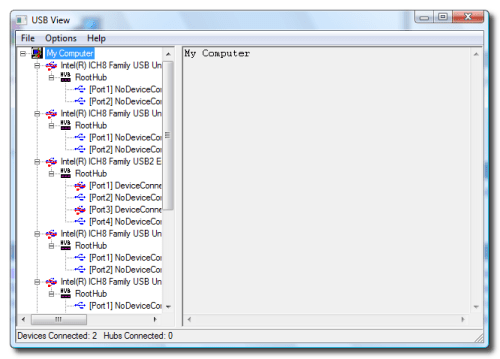

Uruchom aplikację USBView. Jeżeli jeszcze nie masz takiej to możesz ją pobrać z tąd. Jest to mała aplikacja od Microsoft.
Jak wygenerować unikalny certyfikat twojego iPhone 3GS'

Jak wygenerować unikalny certyfikat twojego iPhone 3GS'

Krok trzeci
Wybierz Config Discriptors z Options.
Jak wygenerować unikalny certyfikat twojego iPhone 3GS'

Krok czwarty
Wybierz Refresh z File.
Jak wygenerować unikalny certyfikat twojego iPhone 3GS'

Krok Piąty

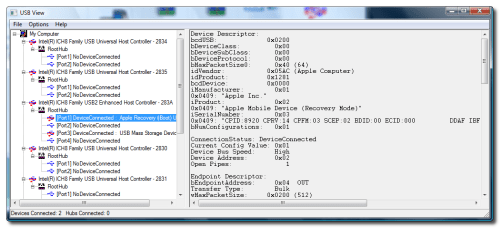

Wybierz urządzenie Apple Recovery (iBoot) z drzewa urządzeń USB w lewym panelu nawigacyjnym, następnie zaznacz i skopiuj (zaznacz i wciśnij Control+c) twoje ECID z prawego panelu nawigacyjnego.
Jak wygenerować unikalny certyfikat twojego iPhone 3GS'

Krok szósty

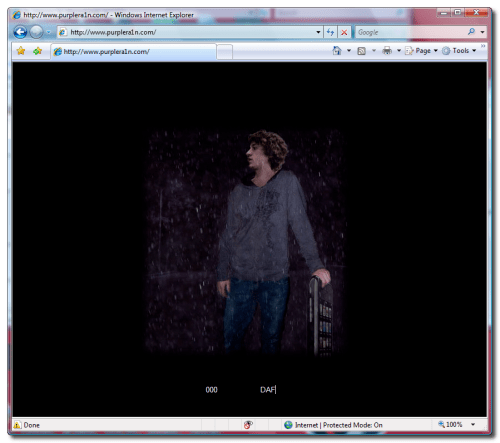

Otwórz przeglądarkę internetową i przejdź na stronę purplera1n.com. Wklej (control+v) swoje ECIDw wyznaczone pole i wciśnij Enter.
Jak wygenerować unikalny certyfikat twojego iPhone 3GS'

Krok siódmy
Strona wygeneruje plik i poprosi cię o zapisanie lub otwarcie go. Wybierz Save/Zapisz plik i ukryj w bezpieczne miejsce tak aby mógł się przydać w przyszłości.
Jak wygenerować unikalny certyfikat twojego iPhone 3GS'
Add Comment
Would you like to be notified when someone replies or adds a new comment?
Yes (All Threads)
Yes (This Thread Only)
iClarified Icon
Would you like to be notified when we post a new Apple news article or tutorial?
Comments (34)
You must login or register to add a comment...
BRIKZ - July 6, 2009 at 1:56pm
I am not sure you even need this step anymore with his new jailbreak. I did purplera1n and never even used those other files. So maybe they arent necessary.
BRIKZ - July 4, 2009 at 3:43pm
On the site now is the new program does this mean that you can't generate a unique certificate anymore? Or what do i do now if i don't have it yet?? Please reply.
J - July 5, 2009 at 6:54pm
Worked fine, under the Windows & Apple logo there is a area to insert the number!
Bleikur - July 2, 2009 at 11:54am
I did exactly as described. purplera1n.com however reloads the page but does not deliver any file. Has any of you guys managed to solve that same issue?
richard Miller
richard Miller - July 2, 2009 at 12:28pm
i aint getting nothing either - both safari and firefox... anyone got any ideas?
J - July 5, 2009 at 6:50pm
Worked for me........ inserted the number & a file was generated!
Kris - July 2, 2009 at 12:12am
if you can't find the field on the page tab to it
spartacus - July 1, 2009 at 11:04am
I tried inputting my ECID and I get no response from the website about downloading the file. I have tried pasting it in and manually typing it all in. After I hit return, I get nothing. I am 100% sure it's the correct number, it's 16 digits, it's HEX. WTF am I doing wrong? Anyone else having this problem?
rvs007 - July 1, 2009 at 11:38am
Are you doing this with a 3G or a 3GS iPhone? This only works with the 3GS.
spartacus - July 2, 2009 at 9:53am
Of course my phone is the 3G S. I wouldn't be trying this otherwise. XP
jsg - June 29, 2009 at 8:59pm
I have tried to find the "iBoot" on the tree for usbview and it does not show up on my computer. Is there anything else I can try?
m17 - June 29, 2009 at 4:40am
Great! works exactly as it says... however, it didn't mention how to exit from DFU mode - if you are stuck (like me), just hold power & home buttons for about 10secs and the phone should restart itself. Thanks guys!
Brynna - June 29, 2009 at 2:07am
I'm new at this iphone thingy. I'm confused, why does the ECID need to be entered into that website?
Chonburi Am
Chonburi Am - June 28, 2009 at 8:52pm
when i go to control v and paste into the website all i see it say is device descripto and i click enter and it says ECID must be a hex string.Can someone please help me thanks
researchermo - June 28, 2009 at 9:06pm
Did you copy it directly from the USB view window? DON'T incude anything but the numeric string to the right of EICD. There are several numbers on that line, you only want what is from the space after the colon to the space that goes to the next element on that line.
ericidle - June 26, 2009 at 3:17pm
worked a treat, if you having difficulty read it again you only need the data that follws ECID: Scroll to the right in USB View its contained in the long line of data, this is the only line which extends so far right, the ECID data is the hexadecimal immeiately following ECID: when your in the purple ra1n screen scroll to the bottom and click slighly left of center until the cursor appears in the appropriate field, its hidden black on black so not eassily spotted, paste your ECID data here and hit enter, this will open and file save widow, just save that file where you can find it for a purplera1ny day perhaps :o)
rvs007 - June 27, 2009 at 2:38am
I was able to get into recovery mode and get the ECID.. However, when I put the string into the purplera1n website, it doesn't return anything.. no file, no option to save or view... anyone has this problem?
Ericidle - June 27, 2009 at 9:14am
Did you hit enter after you pasted ecid into the field?
Rvs007 - June 27, 2009 at 10:40am
Ya I did. I just realized this is only for the 3GS... I was doing it for my 3G which is probably the reason why it won't accept the ECID and return a text file. I'll try it again when I get my 3GS which is backordered for now :-(
MerchantWireless - June 26, 2009 at 11:36am
Got it! Thanks again Geohot! I was in Boston a while back when you had unlocked the Iphone for the first time. You are the Man! I can't wait to jailbreak/unlock my 3GS!
Steve Anderson
Steve Anderson - June 26, 2009 at 10:19am
i waste of time Five Select the Apple Recovery (iBoot) device from the USB Device Tree in the left panel then Copy (highlight and press Control+c) your ECID from the Descriptor fields on the right. is this every thing in the right pane also when you go to website there is nothing there just a puff holdin g onto a iphone
researchermo - June 26, 2009 at 10:29am
That "puff" is geohot, and you might want to thank him rather than insult him. Now, to help you out, click around under the pic until you hit the field, you WILL find it, but it is invisible. Paste in your EICD and hit enter, your key WILL be generated.
researchermo - June 26, 2009 at 3:04pm
It6 wasn't blinking for me, I had to click around until I hit it and then it started blinking. Still, not nice to insult those upon whom you depend at this point!
dido - June 26, 2009 at 3:11pm
What part is my EICD? Is it everything on right screen or part of it? Tnx.
madcow - June 26, 2009 at 8:05pm
it's a part within the long string of stuff. You'll see it if you scroll to the right. only a few (8 or so) digits/letters long
dido - June 26, 2009 at 8:52pm
Tnx, I got it. I'll try it again.
VIC - June 26, 2009 at 5:59am
researchermo - June 26, 2009 at 10:02am
There are no links on the purplera1n site? how did you get the file generated?
researchermo - June 26, 2009 at 10:29am
Found it!
vic - June 26, 2009 at 5:57am
i visited the site but i got nothin over there?
jaylou180 - June 26, 2009 at 8:50am
i had the same problem. the field is right under the picture. just click around under the picture. its invisiblel
researchermo - June 26, 2009 at 10:30am
Thanks man, that was driving me crazy.
Deez - June 26, 2009 at 2:05am
Thanks to y'all for always coming through.
LarryLP - June 29, 2009 at 8:00am
Thanks dudz. Worked a treat!
