How to Jailbreak Your 2G iPod Touch (Windows)

Posted March 11, 2009 at 2:06pm by iClarified
CzechDutchFinnishFrenchPortuguese (Brazil)SpanishVietnamese
These are instructions on how to jailbreak your 2G iPod Touch using Windows and Voltage.

Step One
Create a folder called Pwnage on your desktop and download Voltage into that folder.
- Voltage
How to Jailbreak Your 2G iPod Touch (Windows)

Step Two
Double click the Voltage archive to extract it. Note*: You may need WinRar installed to do this.
How to Jailbreak Your 2G iPod Touch (Windows)


Step Three
Double click the extracted Voltage folder and double click to launch Voltage - Jailbreaker.exe
How to Jailbreak Your 2G iPod Touch (Windows)

Step Four
Voltage will launch and present you with three requirements for jailbreaking.
How to Jailbreak Your 2G iPod Touch (Windows)

Click Begin Download to start downloading the iPod Touch firmware ipsw.
How to Jailbreak Your 2G iPod Touch (Windows)

Click to Save to save the firmware file to your hard drive.
How to Jailbreak Your 2G iPod Touch (Windows)

When asked where to save the file you can place it in the Voltage directory.
How to Jailbreak Your 2G iPod Touch (Windows)

Step Five
If you are using Vista you must follow these steps to continue. If you are on Windows XP you can skip to Step Six.

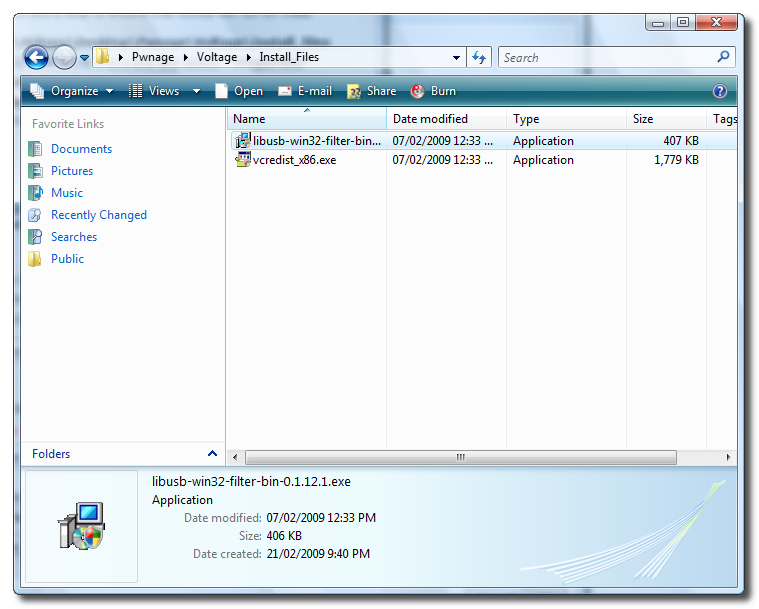

Double click to open the Install_Files folder from the Voltage folder you already have open.
How to Jailbreak Your 2G iPod Touch (Windows)

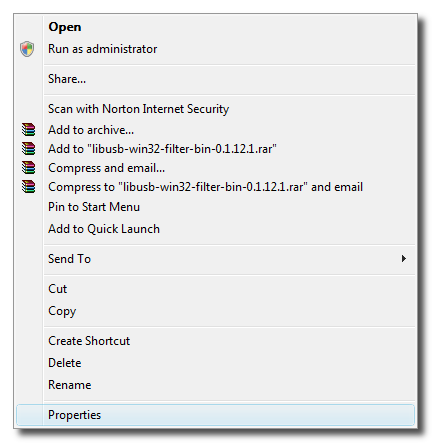

Right click the lib-win32-filter-bin-0.1.12.1.exe file and select Properties from the popup menu.
How to Jailbreak Your 2G iPod Touch (Windows)

How to Jailbreak Your 2G iPod Touch (Windows)

Click to select the Compatibility tab.
How to Jailbreak Your 2G iPod Touch (Windows)

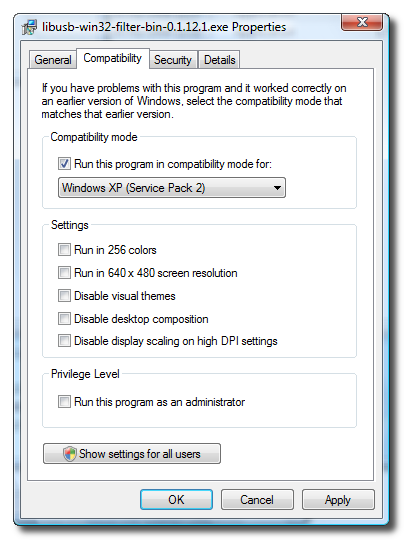

Check the Run this program in compatibility mode for: box. Make sure Windows XP (Service Pack 2) is selected from the dropdown then click the OK button.
How to Jailbreak Your 2G iPod Touch (Windows)

Step Six

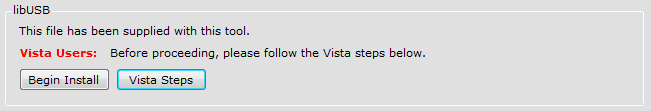

Click the Begin Install button to launch the LibUSB installer.
How to Jailbreak Your 2G iPod Touch (Windows)

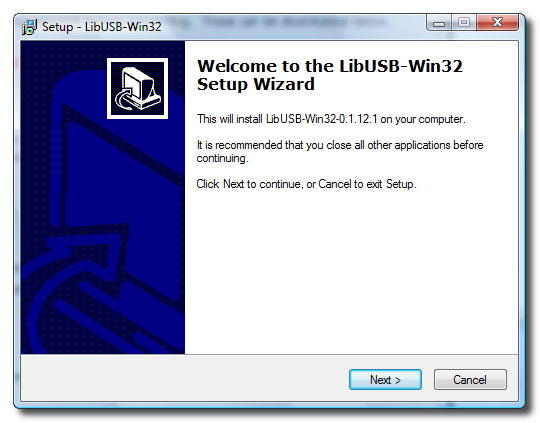

Follow the prompts to install LibUSB on your computer.
How to Jailbreak Your 2G iPod Touch (Windows)

How to Jailbreak Your 2G iPod Touch (Windows)

Step Seven
Click the Begin Install button to launch the C++ Installer.
How to Jailbreak Your 2G iPod Touch (Windows)

Follow the prompts to complete the C++ installation on your computer.
How to Jailbreak Your 2G iPod Touch (Windows)

How to Jailbreak Your 2G iPod Touch (Windows)

Once the installation has completed click the Next Step button at the bottom right of the Voltage screen.

Step Eight

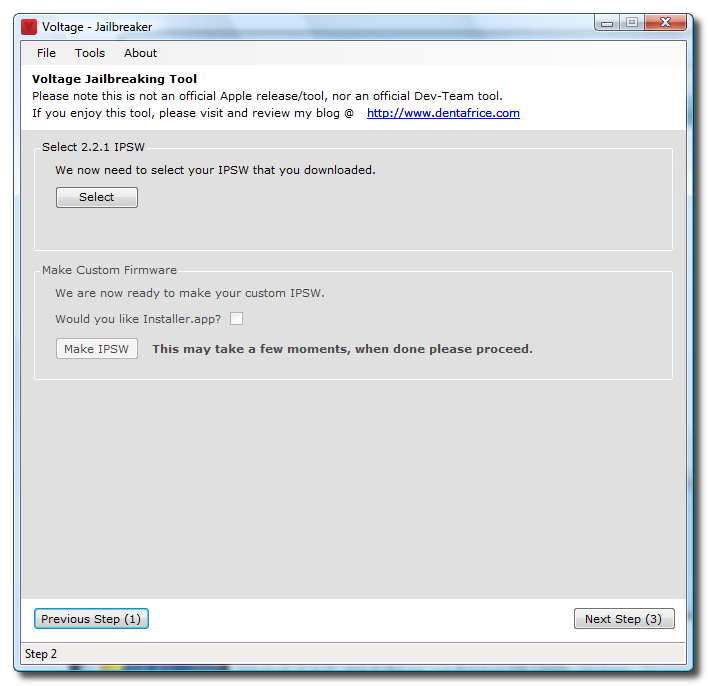

Click the Select button to select the IPSW file you downloaded.
How to Jailbreak Your 2G iPod Touch (Windows)

Navigate to the Voltage folder and select the iPod touch 2.2.1 firmware file then click the Open button.
How to Jailbreak Your 2G iPod Touch (Windows)

Step Nine

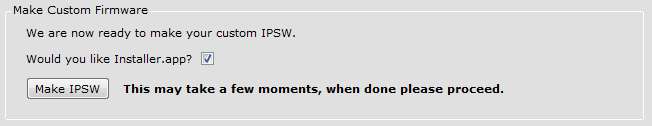

Now we will make a custom firmware ipsw. Click the Make IPSW file to continue.
How to Jailbreak Your 2G iPod Touch (Windows)

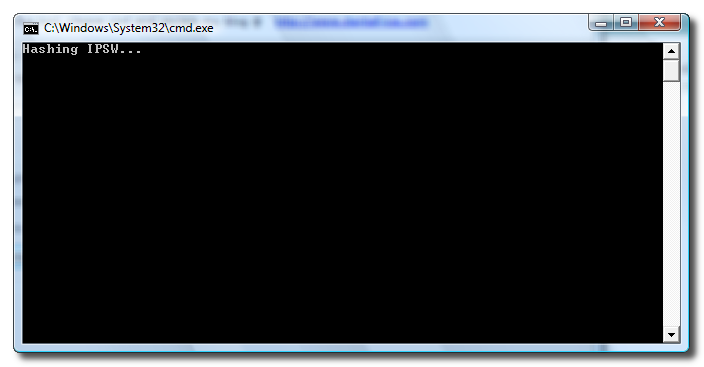

A command prompt window will open to display the progress. It will close when the custom firmware ipsw is built.
How to Jailbreak Your 2G iPod Touch (Windows)

Click the Next Step button to continue.

Step Ten

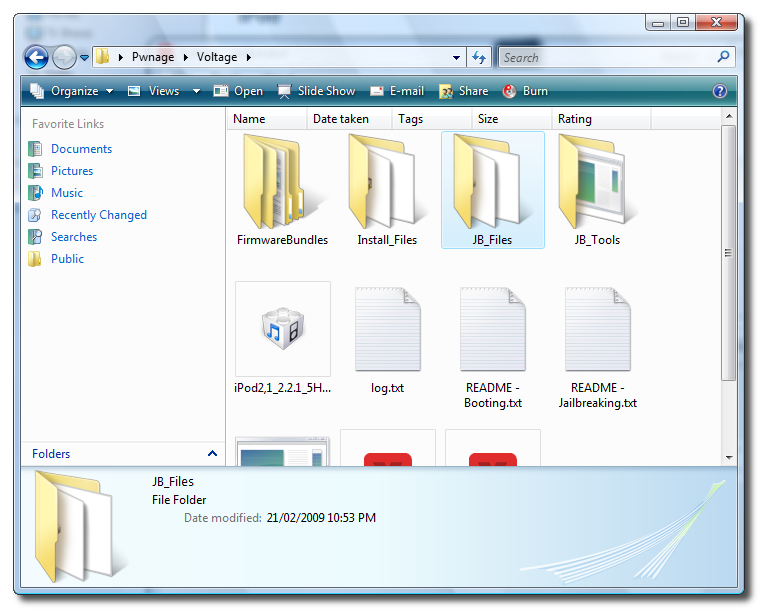

From the Voltage folder you have open double click the JB_Files folder.
How to Jailbreak Your 2G iPod Touch (Windows)

Right click the Custom_Restore.ipsw file then select Rename from the popup menu.
How to Jailbreak Your 2G iPod Touch (Windows)

How to Jailbreak Your 2G iPod Touch (Windows)

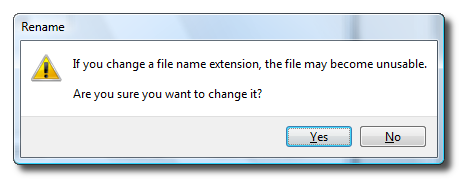

Add .zip to the end of the file name and click Yes if prompted to confirm the change.
How to Jailbreak Your 2G iPod Touch (Windows)

Right click the Custom_Restore.ipsw.zip file and select Open With from the popup menu.
How to Jailbreak Your 2G iPod Touch (Windows)

How to Jailbreak Your 2G iPod Touch (Windows)

Select WinRar from the list of applications that appear then click the OK button. Note*: You may need to download and install WinRar if you don't have it.
How to Jailbreak Your 2G iPod Touch (Windows)

Once WinRar opens your archive, double click the Firmware folder to open it.
How to Jailbreak Your 2G iPod Touch (Windows)

Then double click the all_flash folder to open it.
How to Jailbreak Your 2G iPod Touch (Windows)

Next double click the all_flash.n72ap.production folder to open it.
How to Jailbreak Your 2G iPod Touch (Windows)

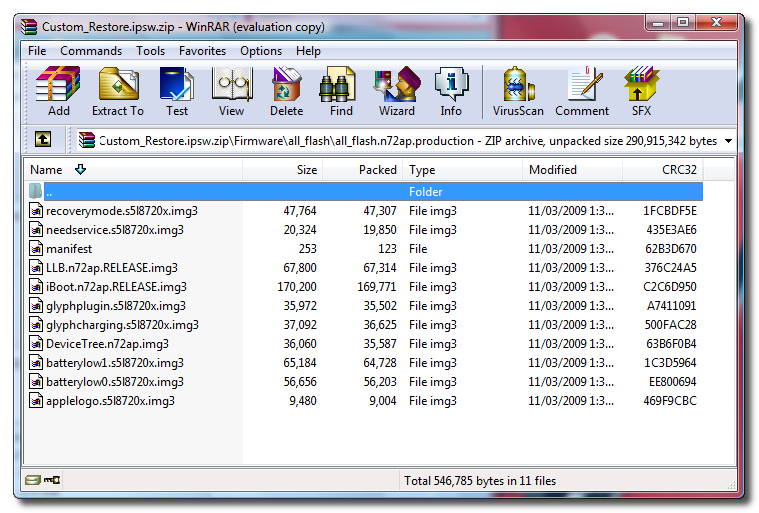

Download the patched LLB (LLB.n72ap.RELEASE.img3) from here and drag it into the Winrar window.
How to Jailbreak Your 2G iPod Touch (Windows)

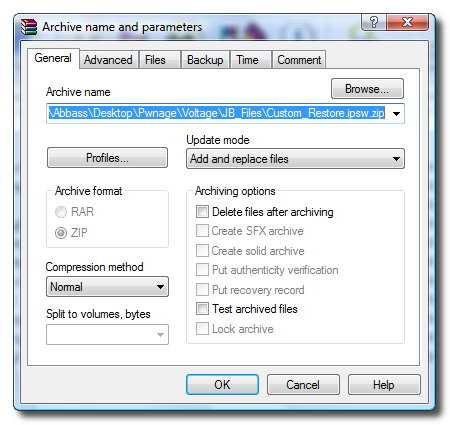

An Archive name and parameters window will appear. Click the OK button to continue.
How to Jailbreak Your 2G iPod Touch (Windows)

WinRar will now update your archive.
How to Jailbreak Your 2G iPod Touch (Windows)

Close WinRar and go back to the open JB_Files folder.
How to Jailbreak Your 2G iPod Touch (Windows)

Right click Custom_Restore.ipsw.zip and select Rename from the popup that appears.
How to Jailbreak Your 2G iPod Touch (Windows)

Rename the file to Custom_Restore.ipsw and if asked click Yes to confirm the rename.
How to Jailbreak Your 2G iPod Touch (Windows)

How to Jailbreak Your 2G iPod Touch (Windows)

Step Eleven

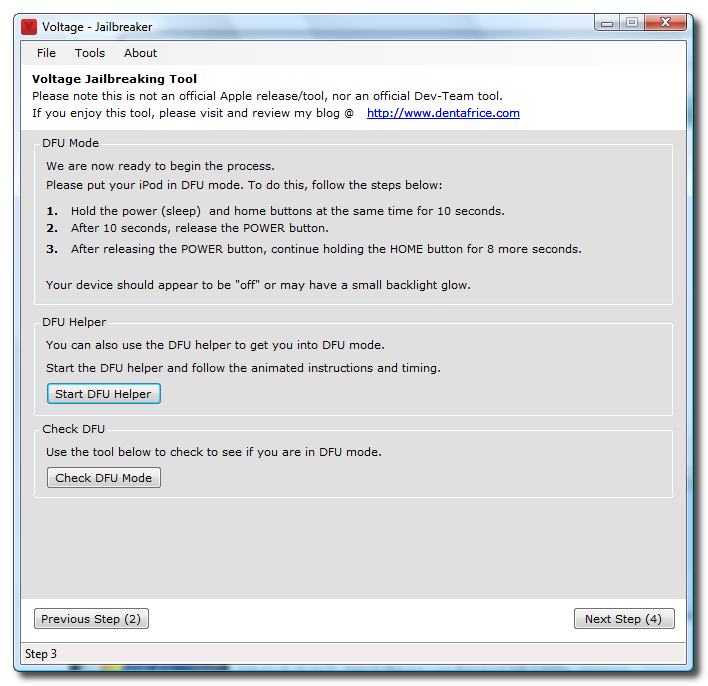

Now back in Voltage we need to put the iPod touch into DFU mode. The easiest way to do this is to plug the iPod into the computer then hold both buttons down for 10 seconds. Release the power button and continue holding the Home button for another 10 seconds.
How to Jailbreak Your 2G iPod Touch (Windows)

To confirm the iPod is in DFU mode click the Check DFU Mode button.
How to Jailbreak Your 2G iPod Touch (Windows)

Once in DFU mode click the Next Step button to continue.

Step Twelve
You will now be able to patch the device. Click the Patch Device button.
How to Jailbreak Your 2G iPod Touch (Windows)

Step Thirteen

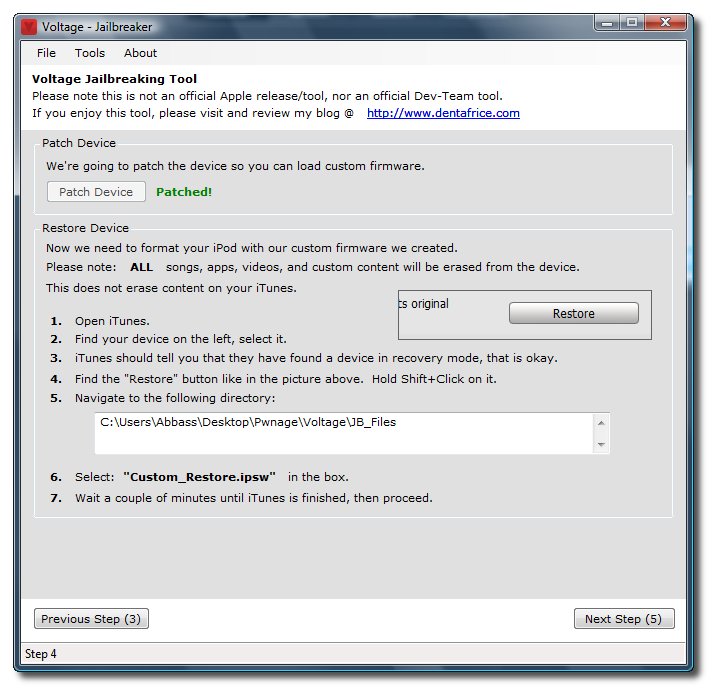

Once the device has been patched it is time to restore to your custom firmware using iTunes.
How to Jailbreak Your 2G iPod Touch (Windows)

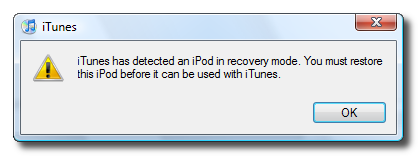

iTunes will have detected an iPod in recovery mode. Click OK to close the dialog box.
How to Jailbreak Your 2G iPod Touch (Windows)

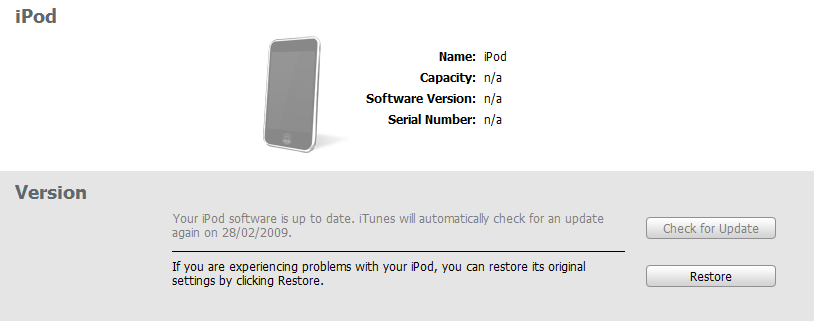

Hold down the Shift key and click the Restore button.
How to Jailbreak Your 2G iPod Touch (Windows)

A popup window will open asking you to locate the firmware to restore to. Select the Custom_Restore.ipsw file from the Voltage/JB_Files folder then click the Open button.
How to Jailbreak Your 2G iPod Touch (Windows)

Step Thirteen

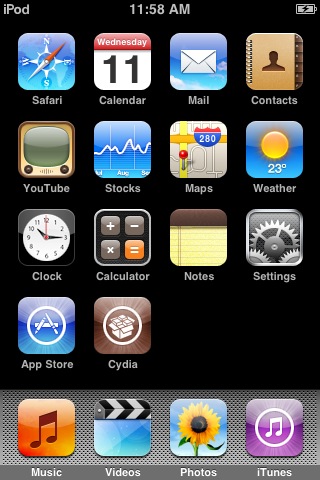

Once the firmware has been restored successfully you will have a jailbroken 2G iPod Touch!
How to Jailbreak Your 2G iPod Touch (Windows)

THANKS
A big thanks go to CalebMingle for creating Voltage.
