Format a Hard Drive Using Mac OS X Disk Utility

Format a Hard Drive Using Mac OS X Disk Utility

Posted May 9, 2008 at 12:08am by iClarified
These are instructions on how to format a hard drive using Mac OS X Disk Utility.

Step One
If your hard drive is an external drive, connect it to the computer. Launch Disk Utility from the Applications:Utilities folder.
Format a Hard Drive Using Mac OS X Disk Utility

Format a Hard Drive Using Mac OS X Disk Utility


Step Two
From the list on the left select the drive you would like to format
Format a Hard Drive Using Mac OS X Disk Utility

Step Three
Click to select the Erase tab.
Format a Hard Drive Using Mac OS X Disk Utility

Step Four

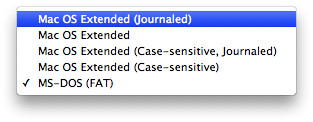

From the Volume Format dropdown select the format you would like the drive to be in.
Format a Hard Drive Using Mac OS X Disk Utility

Step Five

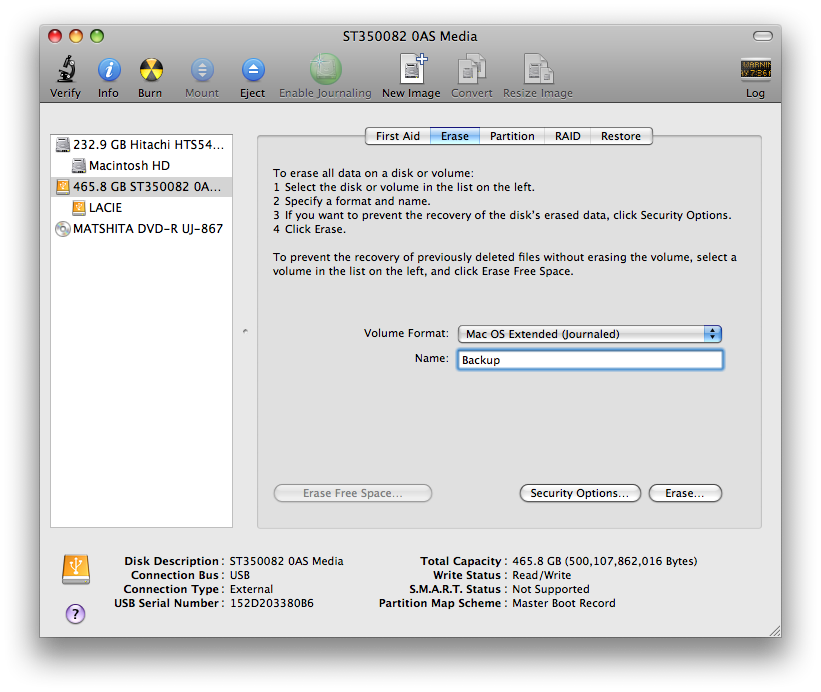

Enter the title for your volume in the Name field.
Format a Hard Drive Using Mac OS X Disk Utility

Step Six

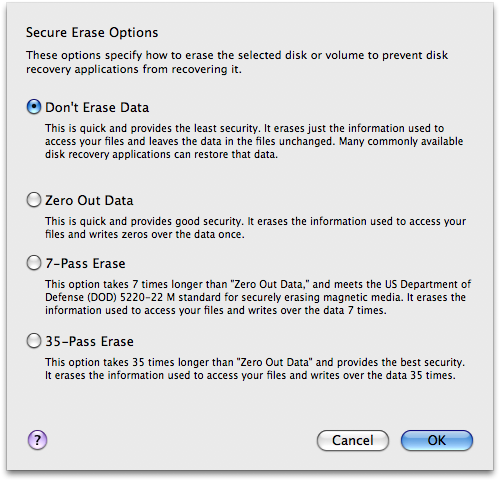

Press the Security Options... button to specify how to erase the drive. You can choose: Don't Erase Data, Zero Out Data, 7-Pass Erase, or 35-Pass Erase. Click the OK button to continue.
Format a Hard Drive Using Mac OS X Disk Utility

Step Seven

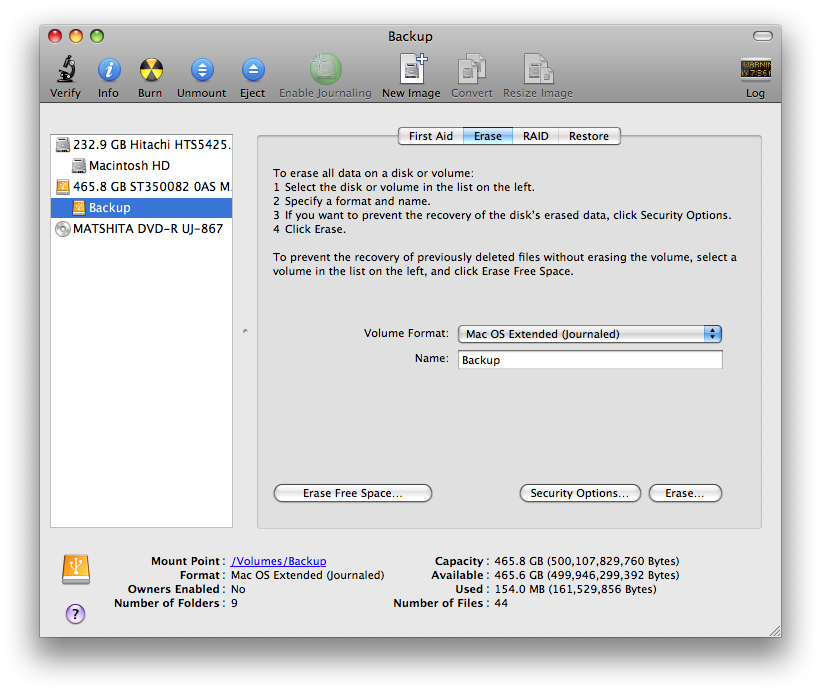

You are now ready to begin the format. Click the Erase... button to start.
Format a Hard Drive Using Mac OS X Disk Utility

Step Eight

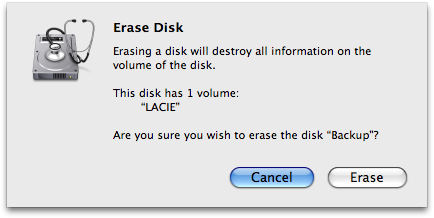

From the popup that appears click the Erase button to confirm you would like to format.
Format a Hard Drive Using Mac OS X Disk Utility

Step Nine
You will notice a status bar appear with the progress of your format.
Format a Hard Drive Using Mac OS X Disk Utility

Step Ten
Once the format has completed you will notice the disk remount in Disk Utility!
Format a Hard Drive Using Mac OS X Disk Utility
