How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Posted October 31, 2010 at 11:51pm by iClarified
BulgarianFrenchGermanPortuguese (Brazil)Swedish
These are instructions on how to jailbreak your Apple TV 2G on iOS 4.1 using PwnageTool for Mac.

Step One

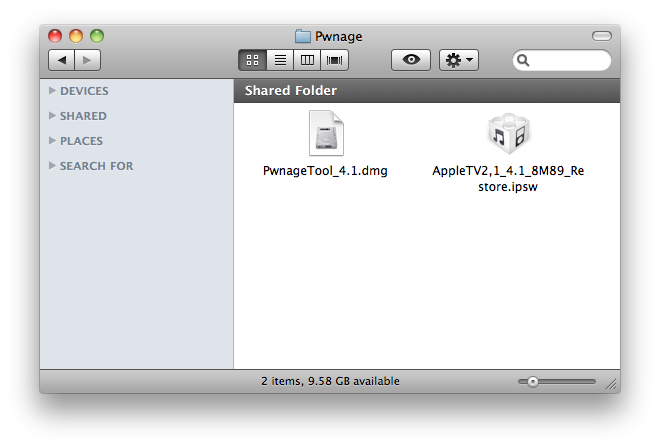

Make a folder called "Pwnage" on the desktop. In it, you will need a couple of things. PwnageTool 4.1.2, found here or here.

You will also need the 4.1 Apple TV firmware.
4.1.0: AppleTV2,1_4.1_8M89_Restore.ipsw


When downloading the IPSW file, it is best to download it with Firefox since Safari often auto extracts it!
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Two

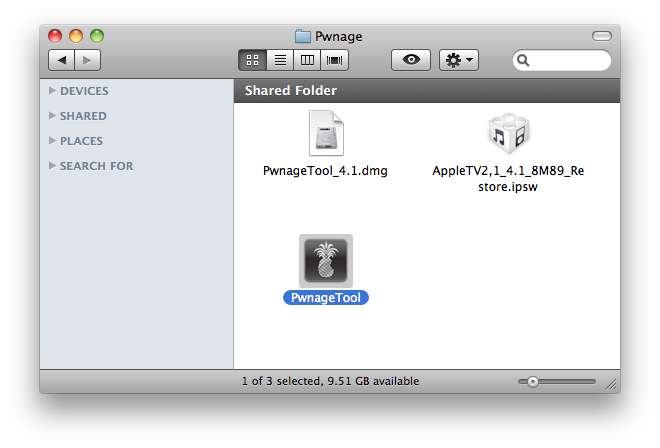

Double click to mount PwnageTool then drag the PwnageTool icon into the Pwnage folder.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Then from the Pwnage folder double click to launch the PwnageTool application.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

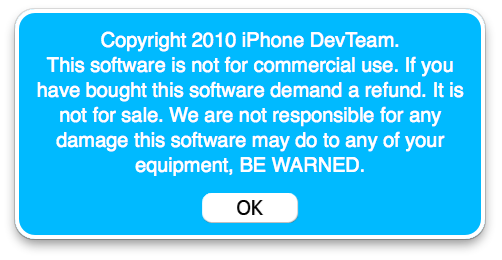

Click Ok if presented with a warning.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Three
Click to select Expert Mode from the top menu bar
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Four

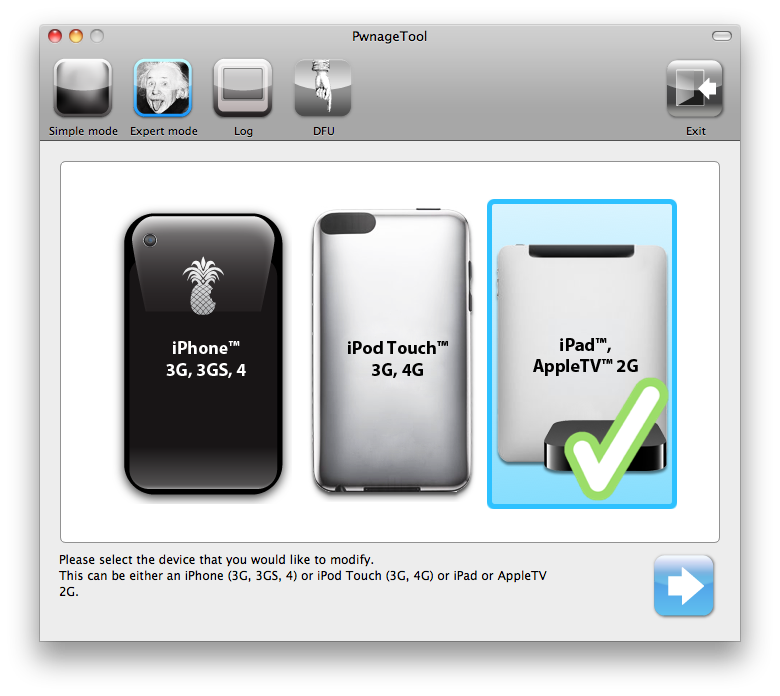

Click to select your Apple TV. A check-mark will appear over the image of the device. Click the blue arrow button to continue.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Five

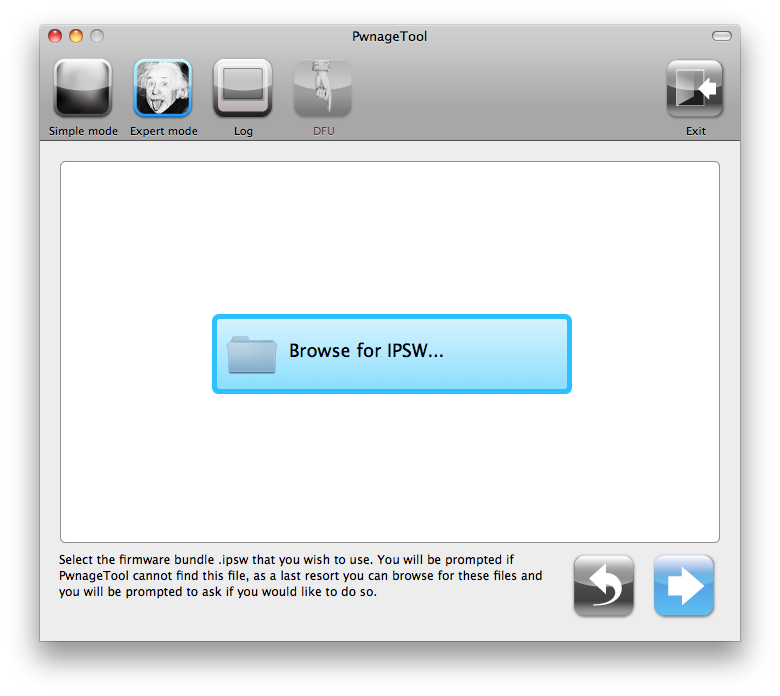

You will be brought to the "Browse for IPSW" page. Click the Browse for IPSW... button.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

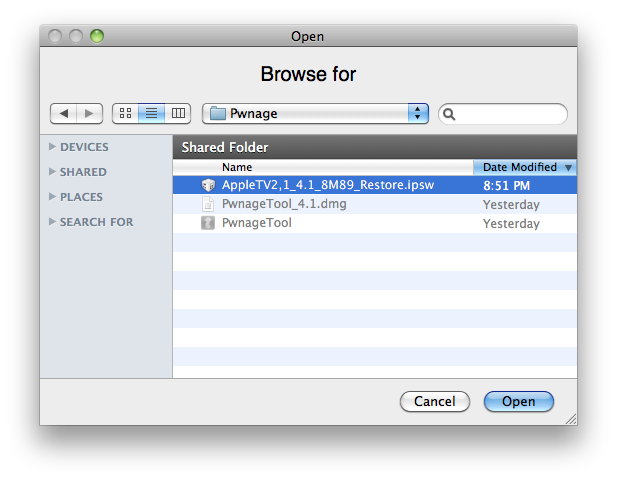

From the popup window select your firmware from the Pwnage folder then click the Open button.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Six

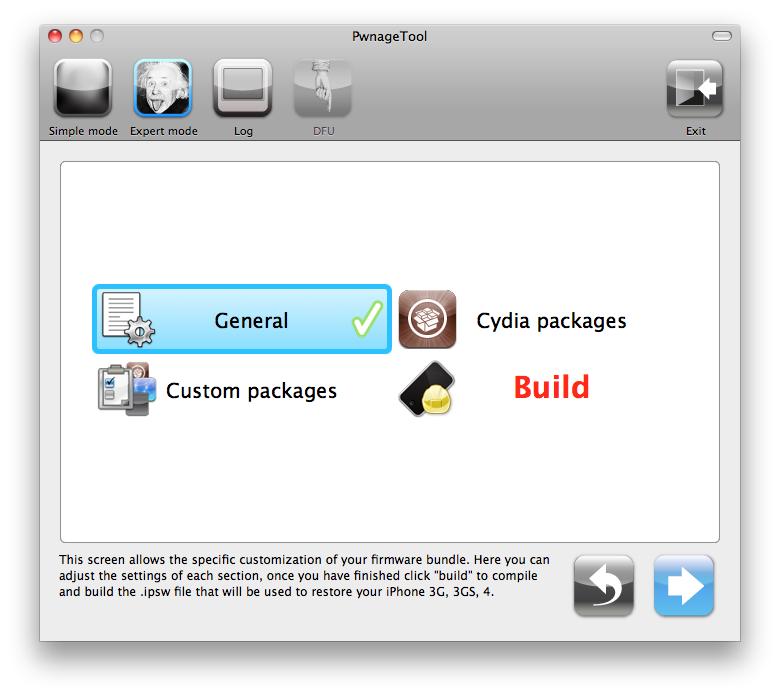

You will then be brought to a menu with several choices. Click to select General then click the blue arrow button.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

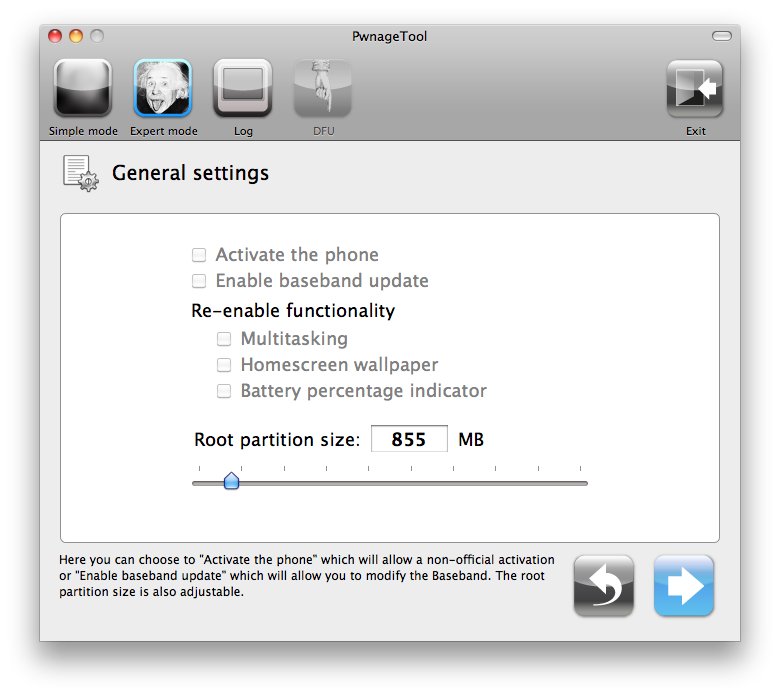

The General settings allows you to decide the partition size.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

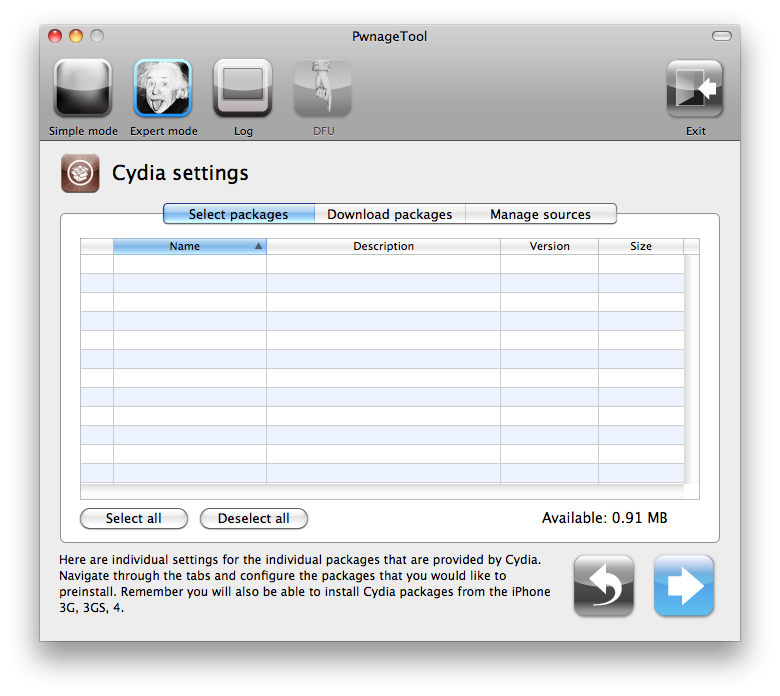

The Cydia settings menu allows you to create custom packages so you do not have to manually install the necessary them later. Most of these packages are not ready for the AppleTV yet so we will click the blue arrow to continue.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

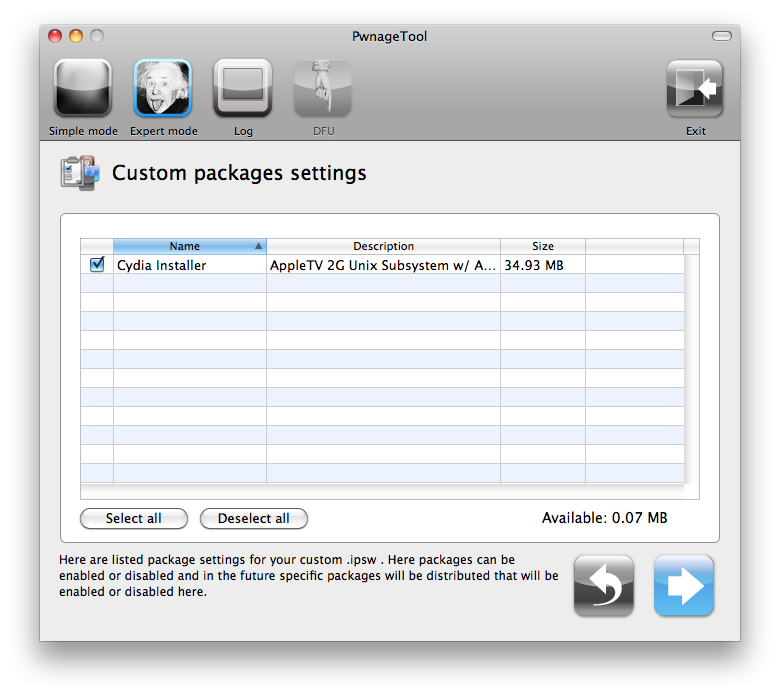

The Custom Packages Settings menu displays listed package settings for your custom IPSW. For know leave these settings as is. Click the blue arrow button to continue.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Seven

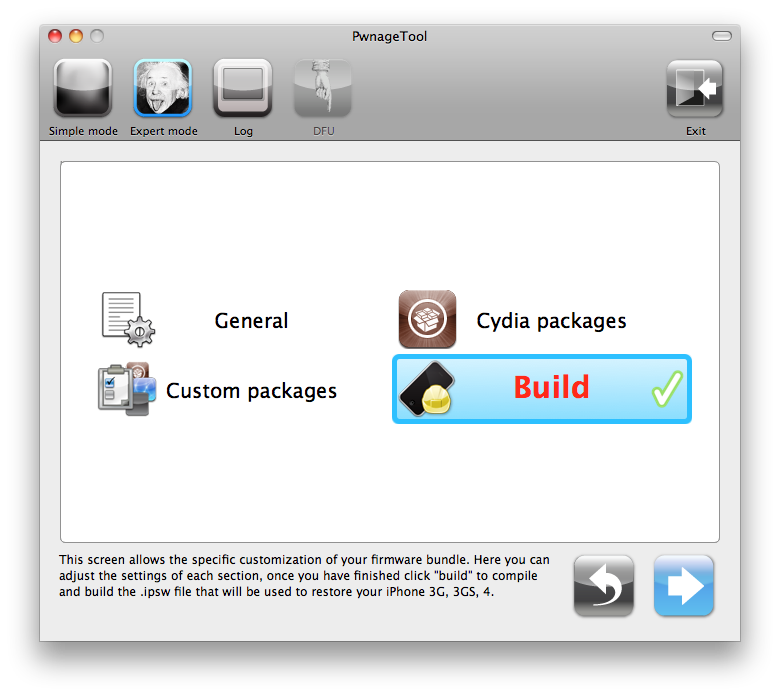

You are now ready to begin the pwnage process! Click the Build button to select it then click the Blue arrow button to begin.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Eight

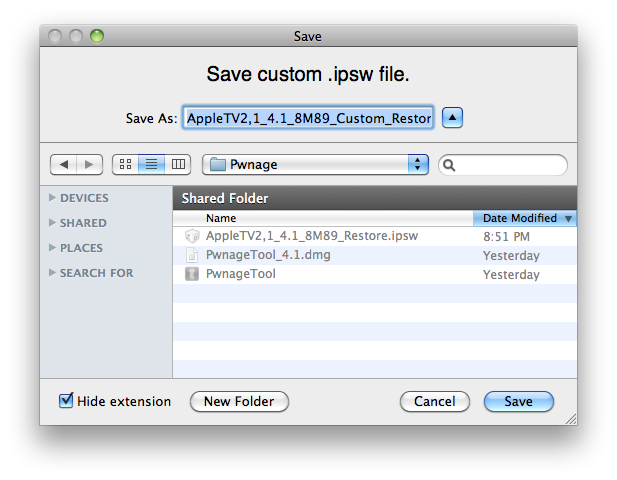

You will be asked to save your custom .ipsw file. Save it to your Pwnage folder you created on your Desktop.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

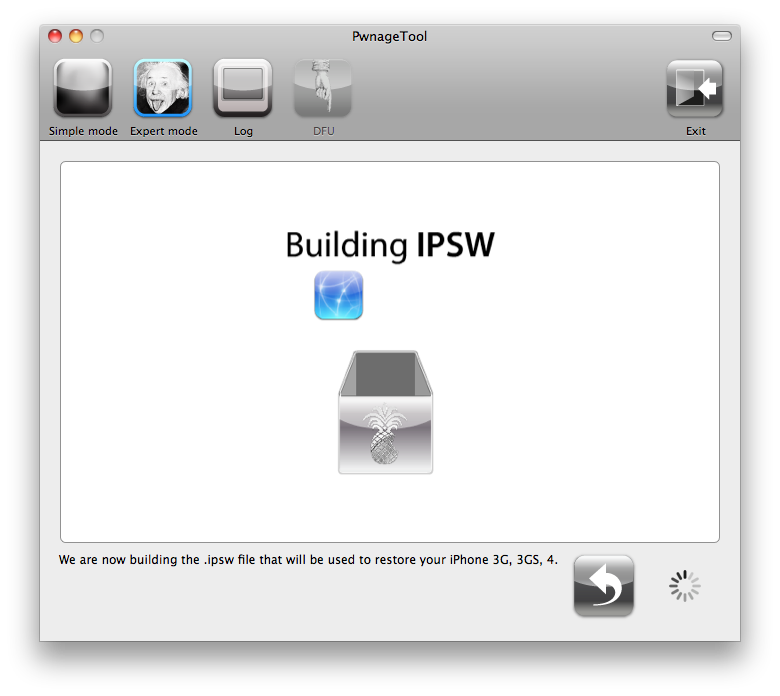

Your IPSW is now being built. Please allow up to 10 minutes.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

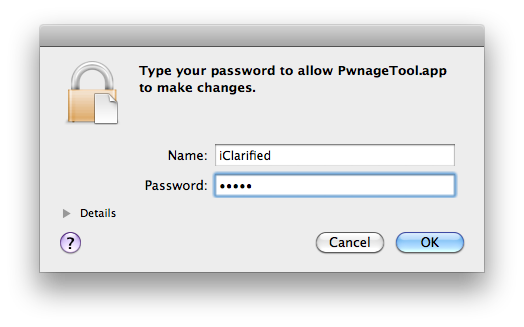

You will be asked to enter your administrator password. Do this then click the OK button.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Nine
Once your ipsw has been built you will be asked to connect your Apple TV to the computer. Once it detects your device PwnageTool will guide your through the steps to putting your Apple TV into DFU mode. For PwnageTool's steps you should not be plugged into the power outlet.

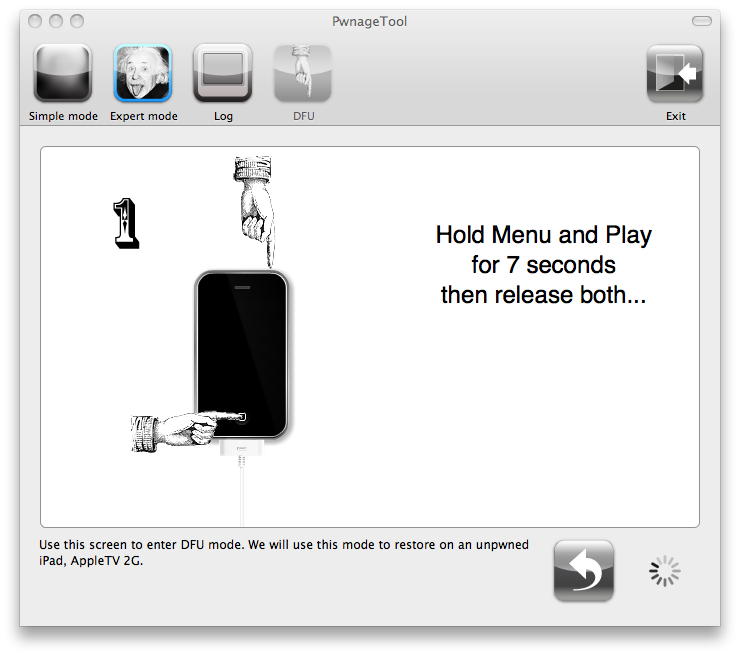

You will be asked to press and hold the Menu and Play buttons for 7 seconds.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Once your Apple TV is successfully in DFU mode, PwnageTool will prompt you to launch iTunes.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Ten
Once In iTunes, hold the Alt/Option key and click Restore.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Eleven

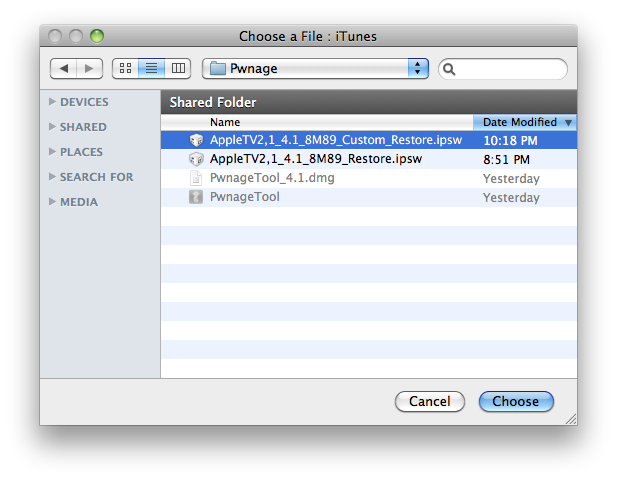

Navigate to the Pwnage folder on your desktop using the dialog window that appears. Select the custom IPSW that was created and click the Choose button.
How to Jailbreak Your Apple TV 2G Using PwnageTool (Mac) [4.1]

Step Twelve
iTunes will now restore the firmware on your Apple TV. This can also take up to 10 minutes. Once done you will be rebooted into jailbroken iOS 4.1!

Currently, there is no Cydia application for your Apple TV so you will need to manually SSH into the device. You can find your IP address under Settings:General:Network. The username is root and the password is alpine.


***SUGGESTIONS:
If you are experiencing error 1600, or similar when restoring the custom ipsw in iTunes then try these suggestions.
- Make sure you are using the latest version of PwnageTool ie 4.1.2
- Make sure you are using iTunes 10.0.1
- Try a different USB cable, port, or computer
- Kill iTunes and iTunes Helper before entering DFU mode

***THANKS: Thank you to Geohot and the Dev-Teams for their hard work in making this jailbreak and tutorial possible! A specific thanks to MuscleNerd for helping us solve some initial problems with performing the jailbreak.
