iPhone 4 CAD Drawings Overlayed Onto Images of the Phone

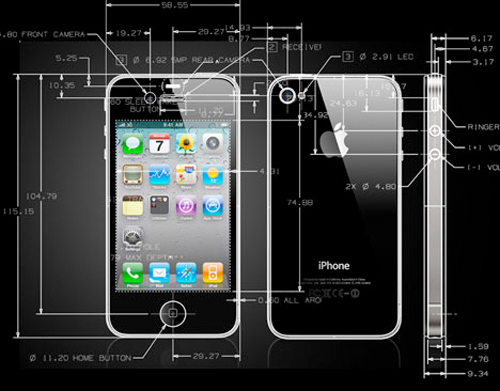

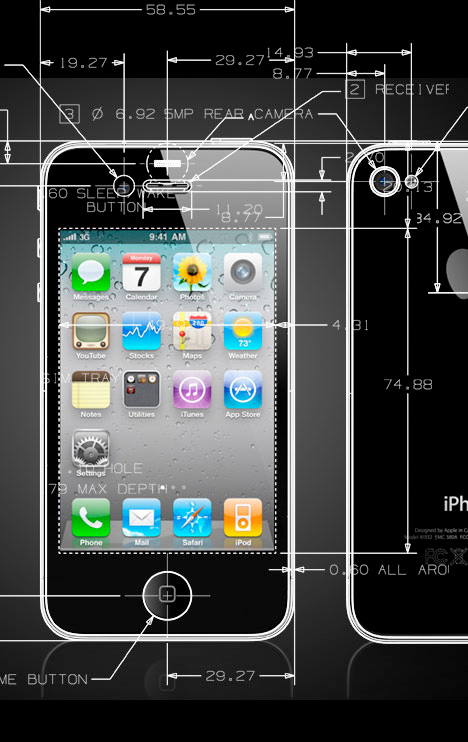

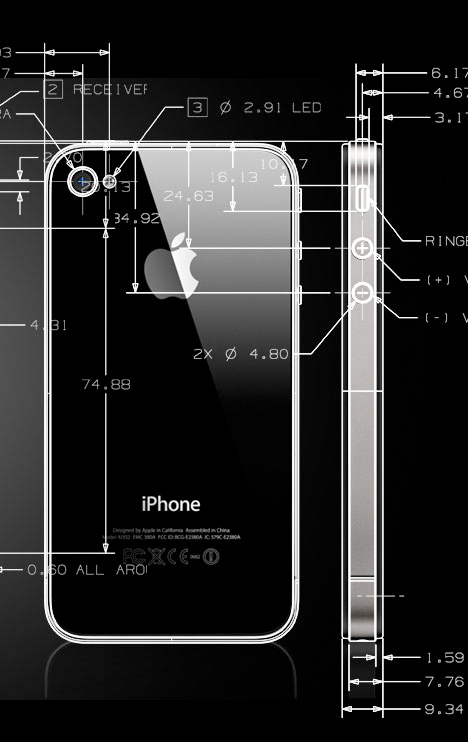

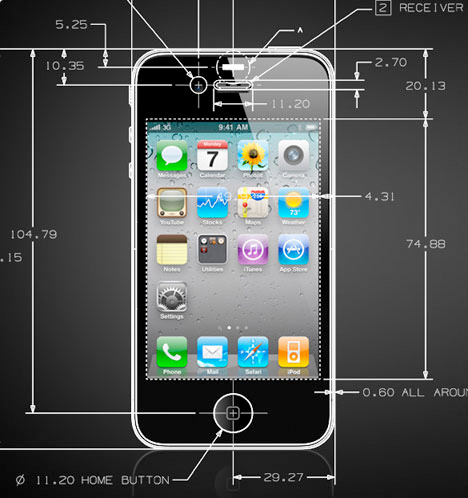

Core77 has taken the time to overlay iPhone 4 CAD drawings provided to case manufacturers onto images of the device.

Just for you design geeks: When we learned Apple had made the CAD drawings of the iPhone exterior available for case manufacturers, we couldn't help but overlay it, albeit somewhat messily, over the product photos to experience that twinge of joy that only a CAD jockey can feel. This took me way longer to do than I thought it would, and yet the pleasure center part of my brain was still lighting up the whole time.


Have a look below. You can download the drawings from here.
