iFixIt Posts New MacBook Pro Teardown

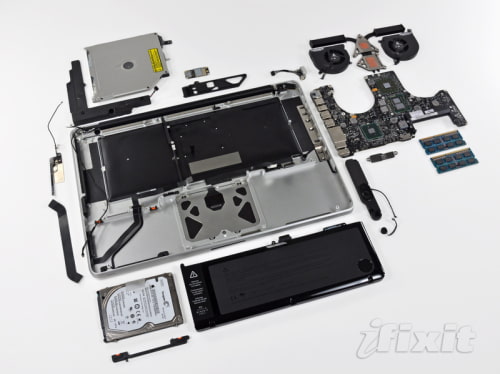

iFixIt has posted their teardown analysis of one of the new MacBook Pro 15inch notebooks.

Here are some key points:

● For some odd reason, Apple has stopped using five-point Torx screws found on other MBP 15" Unibodies in favor of Tri-Wing screws. Try as you may, Apple, you won't win. We got all the screwdrivers right here.

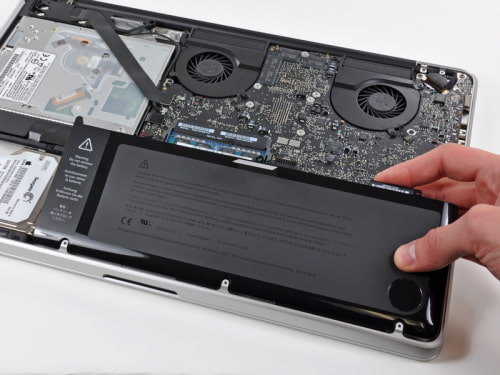

● The battery is now rated at 77.5 Wh. That's just a tad bit more than the 73 Wh battery found in last year's 15" model, but not enough to explain the 1-2 hour battery life improvement Apple is claiming for this machine.

● The Wi-Fi/Bluetooth board location is one of the few major changes made to the new model.

● Apple changed the design of this speaker assembly slightly, moving from a single plastic enclosure to separate plastic enclosures for the speaker & subwoofer that are connected by the speaker leads.

● Since the AirPort/Bluetooth board is mounted inside the all-metal case of this machine, Apple added an antenna that is mounted on the frame for the optical drive opening. Pretty clever!


● Intel BD82HM55 S LGZS Platform Controller Hub. Interestingly enough, the hub is not connected to the heat sink. Apparently, enough heat is convected from the surface of the silicon to remove the small amount of heat generated by the graphics switching operations.

Hit the link below to look at more pictures and analysis...
