Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Posted February 15, 2010 at 12:03am by iClarified
EnglishDutchNorwegianPortuguese (Brazil)SpanishSwedish
Deze tutorial toont u hoe je gejailbreekte iPhone 3GS te updaten van OS 3.0.x to OS 3.1 met PwnageTool for Mac.

Als je een iphone 3.0 hebt moet je jailbraiken via deze (Mac, Windows) tutorial vooraleer je verder gaat.

Stap 1

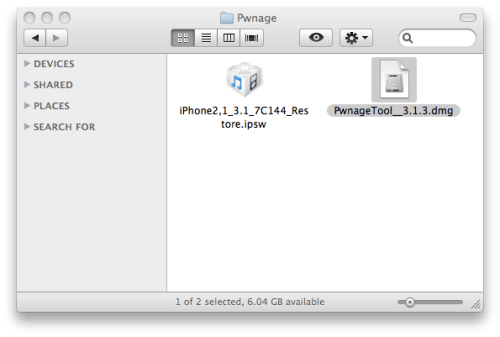

maak een map met de naam "Pwnage" op je bureaublad. In de map moet je een aantal zaken steken. PwnageTool 3.1.3, vind je hier of hier


Je hebt ook de iPhone 3.1 firmware nodig.
3.1.0 (3GS): iPhone2,1_3.1_7C144_Restore.ipsw

De IPSW file download je best met firefox omdat Safari die automatisch extract
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Stap 2

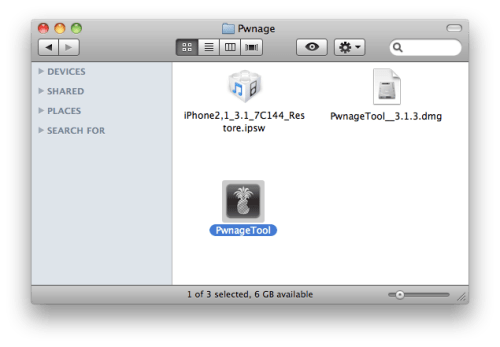

dubbel klik om PwnageTool 3.1.3 te mounten, sleep dan het PwnageTool icoon in de Pwnage folder/map.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

In de Pwnage folder dubbel klikken om de PwnageTool applicatie te starten.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

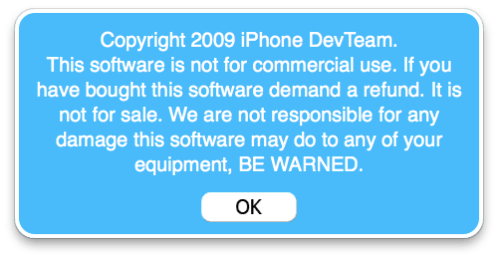

Klik ok als er een waarschuwing komt
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

stap 3
klik op de top menu bar om de Expert Mode te selecteren
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Stap 4

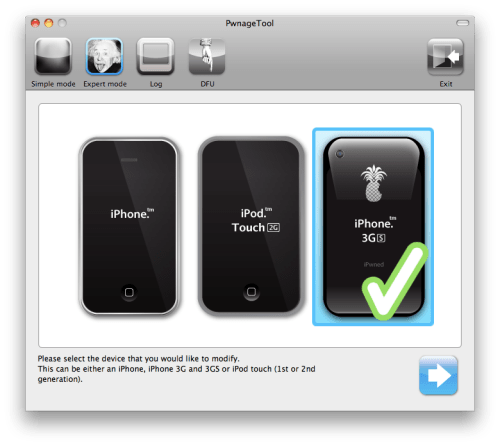

Klik om je iphone te slecteren. Er zal een vinkje verschijnen over de iphone afbeelding.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Step vijf

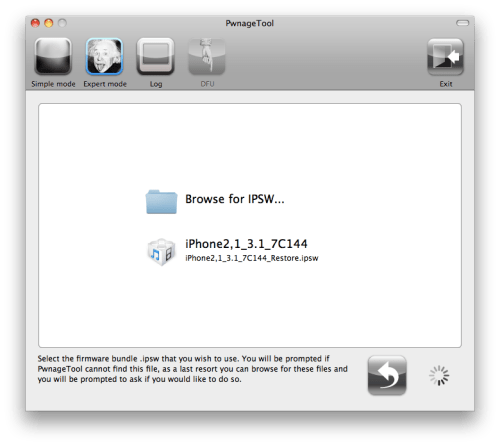

Om verder te gaan, klik op de blauwe pijl. Je wordt naar de "Browse for IPSW" pagina geleid. Op mijn laptop vond ik automatisch de IPSW. Indien dit niet het geval is kan je op Browse for IPSW... klikken.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Klik om de gevonden IPSW file te slecteren, er verschijnt een vinkje naast. Klik dan op de blauwe pijl.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Stap zes

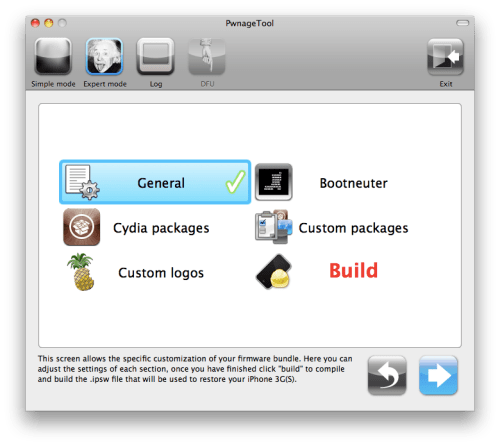

Je ziet een menu met 7 keuzes. klik om General te slecteren, dan klik je op de blauwe pijl.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

De General settings staan toe om de partitie grootte te wijzigen. vink Activate the phone aan als je geen officiele carrier hebt. klik dan op de blauwe pijl.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

NOTE*: Deselecteer Activate als je een legale carrier hebt.
NOTE*: Je zal de partitieruimte misschien wat moeten vergroten. Bij mijn eerste poging mislukte om de IPSW te maken tot ik 695 MB ingaf als partitieruimte.

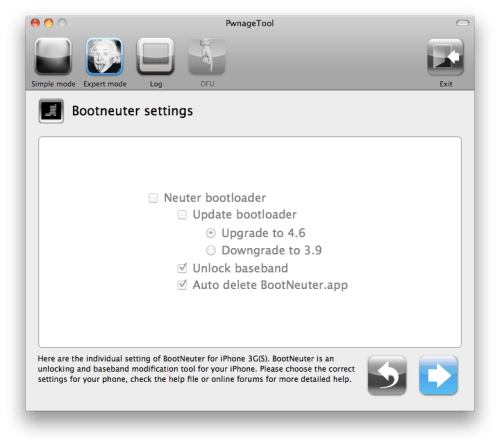

De Bootneuter settings zijjn grijsvoor de 3G iPhone. Klik op de blauwe pijl.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

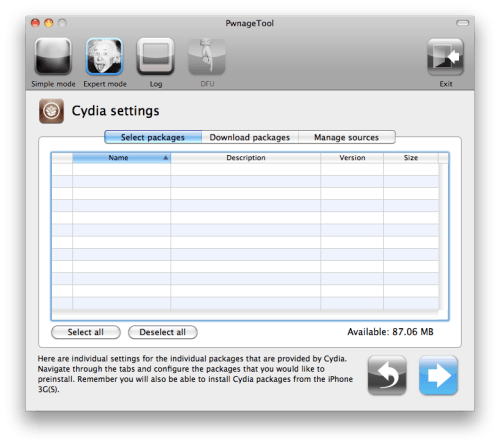

Het Cydia settings menu staat u toe om custom pakckages te creëren zodat je dat later niet manueel moet doen.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

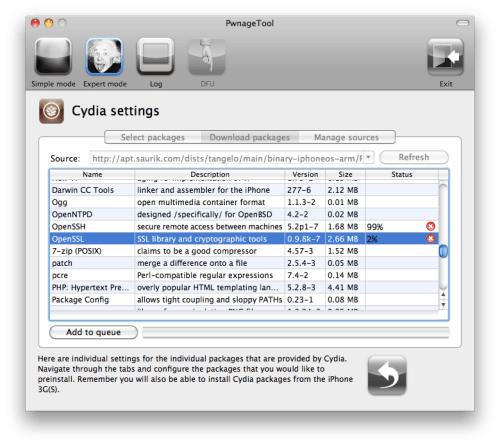

Klik om de Download packages tab te slecteren. Klik dan op de Refresh buttonom alle mogelijke packages te tonen. dubbel klik het package dat je wil downloaden en het te tonen in de Select Packages tab.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

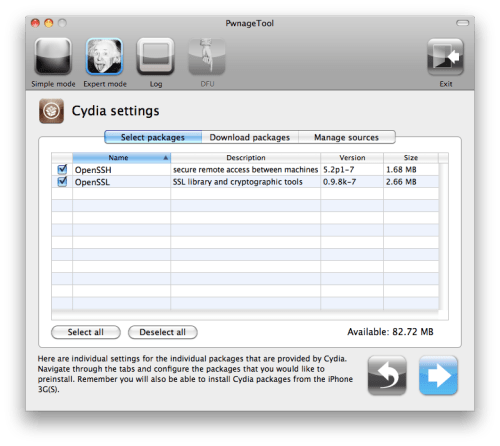

vink diegene aan die je wil en klik dan op de blauwe pijl.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

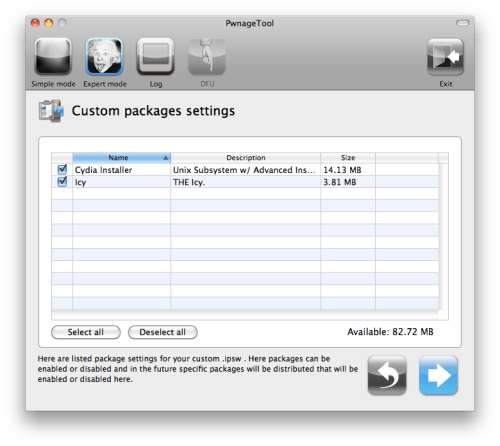

Het Custom Packages Settings menu toont de gelijste package settings voor de custom IPSW. Laat deze instellingen voor wat ze zijn. Klik op de blauwe pijl om verder te gaan.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

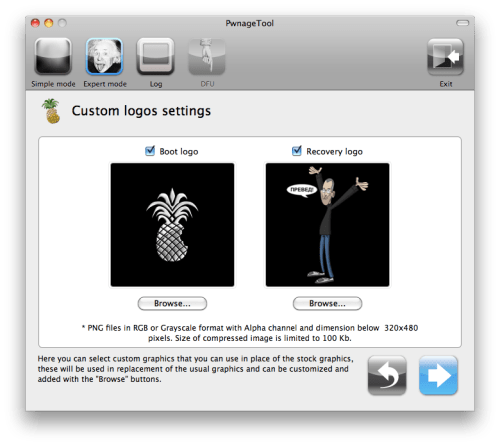

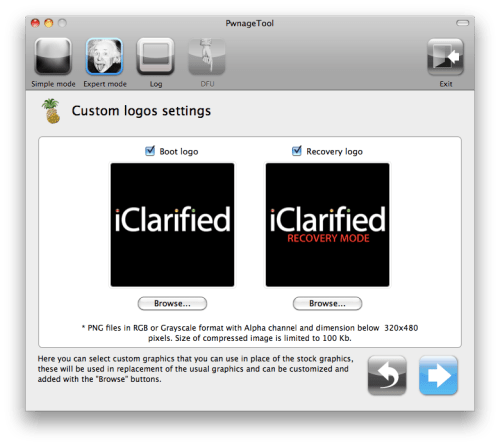

Het Custom Logos Settings menu laat u toe om je eigen foto's als bootlogo te gebruiken. Klik op de Browse knop om het bootlogo en recovery logo te slecteren. Als je die van iclarified wil gebruiken, kan je ze hier vinden: Boot Logo, Recovery Logo
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Onthou, de regels voor de logo's zijn: RGB or Grayscale formaat met Alpha channel en de dimenties onder 320x480...
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

klik op de blauwe pijl om verder te gaan

Stap zeven

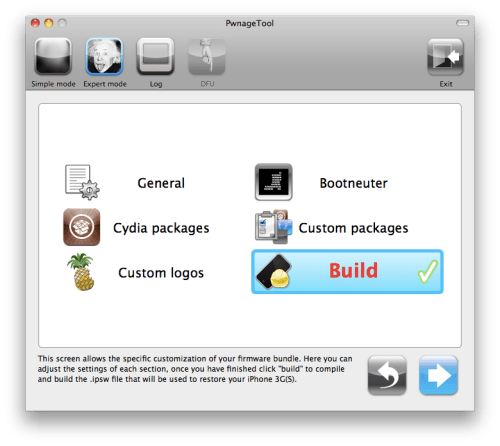

Het pwnage proces kan beginnen! Klik op de Build knop om het te slecterenen klik dan op de Blue arrow knop om te beginnen.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Stap acht

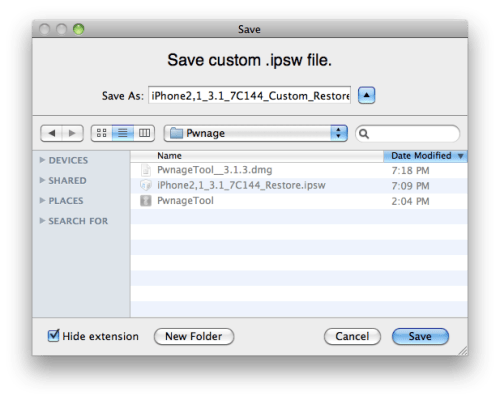

Je zal worden gevraagd om je custom .ipsw file te saven. Save het in je Pwnage folder.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

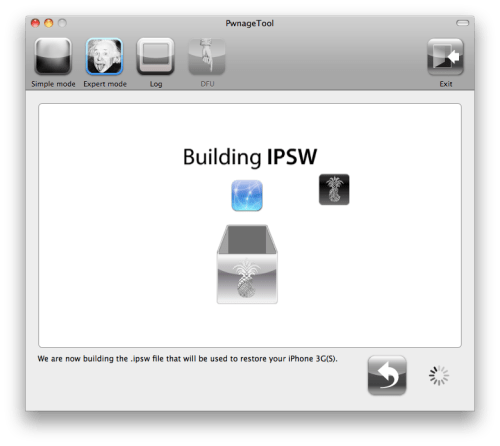

Je IPSW wordt nu gemaakt. Kan 10 minuten duren.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

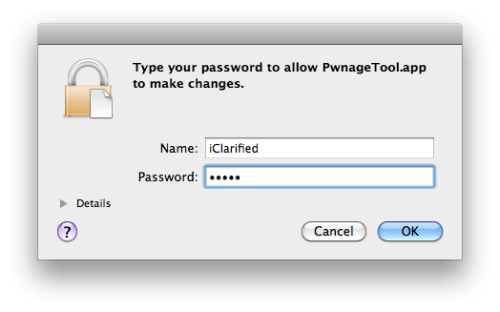

Je zal gevraagd worden om een administrator paswoord in te geven. Doe dat en klik dan de OK knop.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

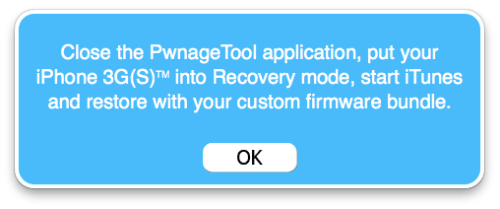

Je zal gevraagd worden om de PwnageTool applicatie te sluiten, en dan je iphone in recovery mode te laten gaan. Klik de OK knop.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Stap negen
Maak dat je iphone met je computer verbonden is en volg dan deze instructies om je iphone in recovery mode te laten gaan.

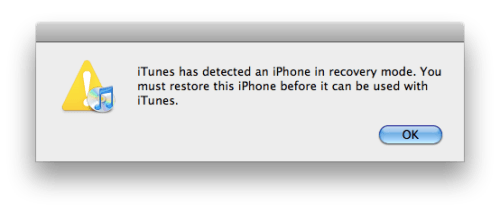

Als je dit correct hebt gedaan dan verschijnt er een itunes logo en een usb kabel. iTunes zal ook zeggen dat het een iphone gevonden heeft in recovery mode.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Stap tien

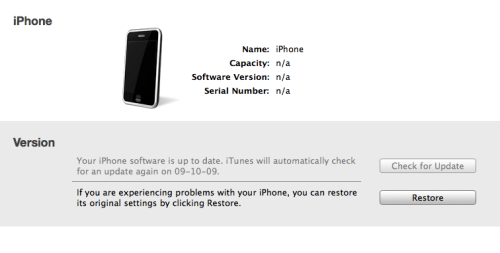

In iTunes, hou de Alt/Option in en klik Restore.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Stap elf

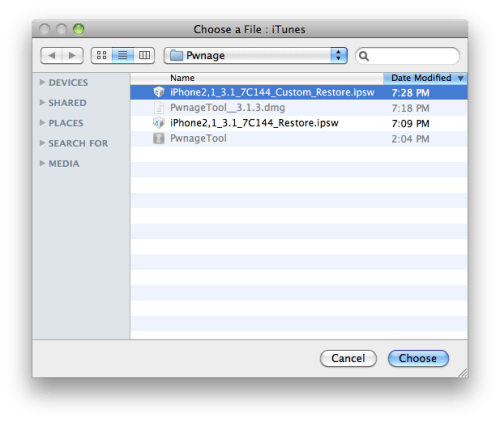

Navigeer naar de Pwnage folder in het dialoog venster dat verschijnt. Selecteer de custom IPSW dat werd gemaakt (iPhone2,1_3.1_7C144_Custom_Restore.ipsw) en klik op de Open button.
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1

Stap twaalf
iTunes gaat nu je firmware restoren. Dit kan ook 10 minuten duren. Eens dat gedaan is heb je een gejailbreekte iphone met 3.1 firmware !!!
Hoe een gejailbreekte iPhone 3GS updaten naar OS 3.1


***Dank: Dank aan het Dev-Team voor het harde werk om deze jailbreak en tutorial mogelijk te maken!
