Extend Multi-touch for Mac OS X Using MultiClutch

Extend Multi-touch for Mac OS X Using MultiClutch

Posted May 19, 2008 at 10:11pm by iClarified
These are instructions on how to extend and customize multi-touch to work with your Mac OS X applications using MultiClutch.

MultiClutch allows you to assign custom keyboard shortcuts in a given app to a given gesture.

Step One
Download MultiClutch to your desktop.


Step Two
Double click the downloaded zip (MultiClutch_beta.zip) on your desktop to extract its contents. A file called (MultiClutch.prefPane) will be extracted. Double click this file to install the preference pane.
Extend Multi-touch for Mac OS X Using MultiClutch

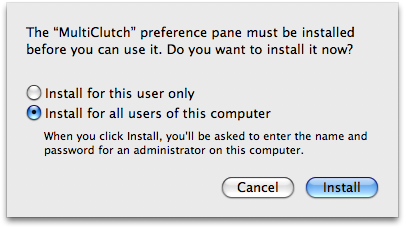

Select whether you would like to install the preference pane only for the current user or for all users then press the Install button.
Extend Multi-touch for Mac OS X Using MultiClutch

You may be asked to enter your administrator username and password. Do this then press the OK button.
Extend Multi-touch for Mac OS X Using MultiClutch

Step Three

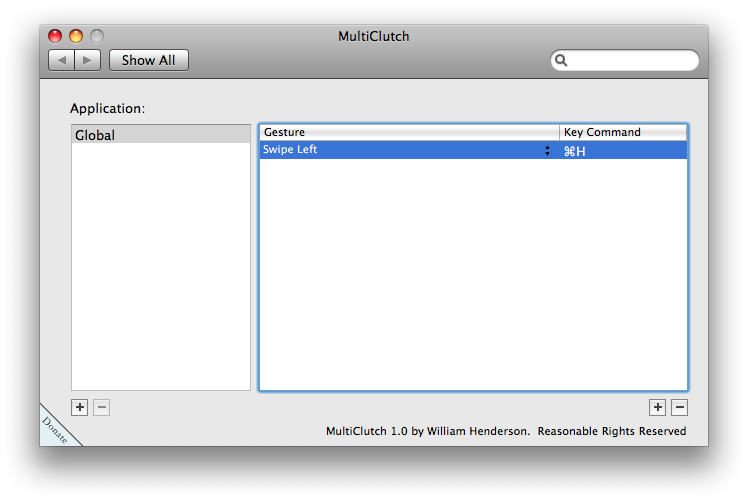

The MultiClutch preference pane will then open and here you can set your multi-touch gestures. On the left side of the window you will see a list of Applications and on the right side you will see a list of gestures for the selected application. If you select Global from the list on the left you can define gestures that apply to all applications.
Extend Multi-touch for Mac OS X Using MultiClutch

Step Four
To create a new gesture for an application click the + button at the bottom left of the screen.
Extend Multi-touch for Mac OS X Using MultiClutch

A window will appear with a list of your applications. Select one, for example Firefox, and click the Open button.
Extend Multi-touch for Mac OS X Using MultiClutch

Notice the application will appear in the list on the left. Click to select it.
Extend Multi-touch for Mac OS X Using MultiClutch

Now click the + button at the bottom right of the screen.
Extend Multi-touch for Mac OS X Using MultiClutch

Notice a new default gesture appears.
Extend Multi-touch for Mac OS X Using MultiClutch

Select a new gesture from the list. In this example I will create a Swipe Right gesture to move between tabs in Firefox.
Extend Multi-touch for Mac OS X Using MultiClutch

Now click the Key Command field and press the key combination you would like to use with the gesture.
Extend Multi-touch for Mac OS X Using MultiClutch

Step Five
You can create different multi-touch gestures for all your applications as well as globally for OS X. MultiClutch supports the basic Swipe Left, Swipe Right, Swipe Up, Swipe Down, Rotate Right, Rotate Left, Rotate Right, Zoom In, Zoom Out gestures. It also adds support for a combo Zoom In Zoom Out and Zoom Out Zoom In gesture. You can learn how these gestures are done here. Any keyboard shortcut can be turned into a multi-touch gesture.
Extend Multi-touch for Mac OS X Using MultiClutch Extend Multi-touch for Mac OS X Using MultiClutch Extend Multi-touch for Mac OS X Using MultiClutch
