How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Posted October 20, 2010 at 11:52pm by iClarified
Greek
These are instructions on how to jailbreak your iPhone 3G on iOS 4.1 using PwnageTool for Mac.

Step One
Make a folder called "Pwnage" on the desktop. In it, you will need a couple of things. PwnageTool 4.1, found here

You will also need the 4.1 iPhone firmware.
4.1.0 (3G): iPhone1,2_4.1_8B117_Restore.ipsw


When downloading the IPSW file, it is best to download it with Firefox since Safari often auto extracts it!
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Two
Double click to mount PwnageTool then drag the PwnageTool icon into the Pwnage folder.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Then from the Pwnage folder double click to launch the PwnageTool application.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Click Ok if presented with a warning.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Three
Click to select Expert Mode from the top menu bar
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Four
Click to select your device. A check-mark will appear over the image of the device. Click the blue arrow button to continue.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Five
You will be brought to the "Browse for IPSW" page. Click the Browse for IPSW... button.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

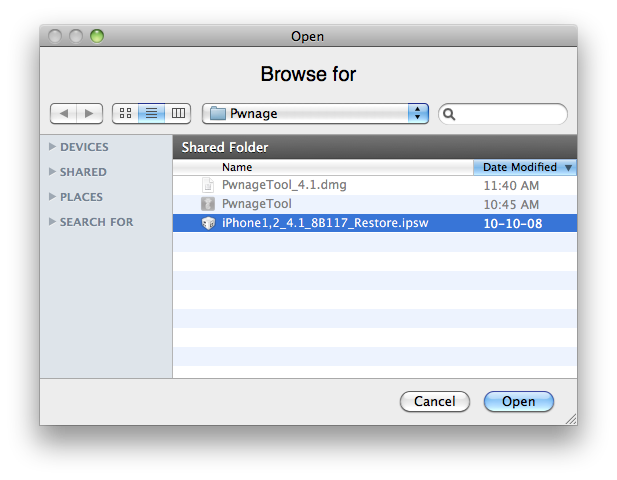

From the popup window select your firmware from the Pwnage folder then click the Open button.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Six

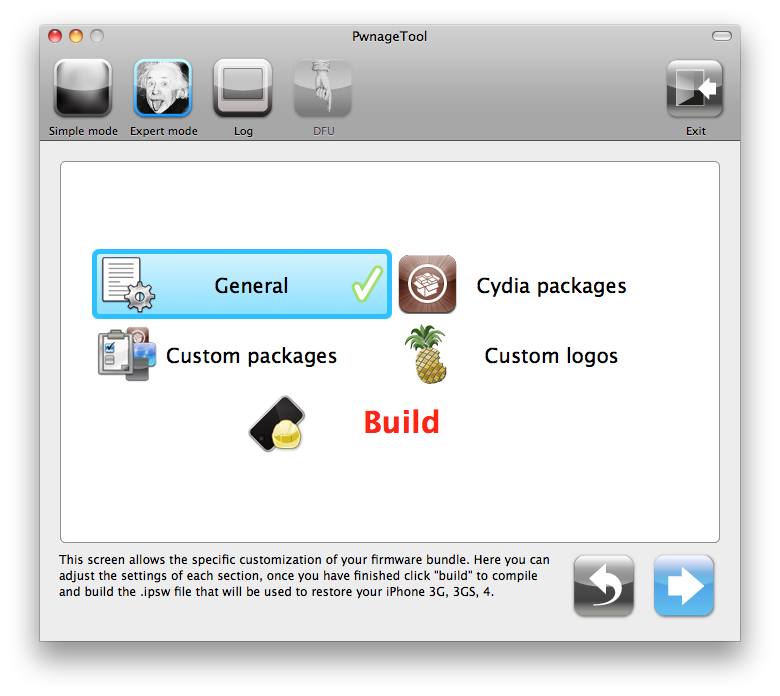

You will then be brought to a menu with several choices. Click to select General then click the blue arrow button.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

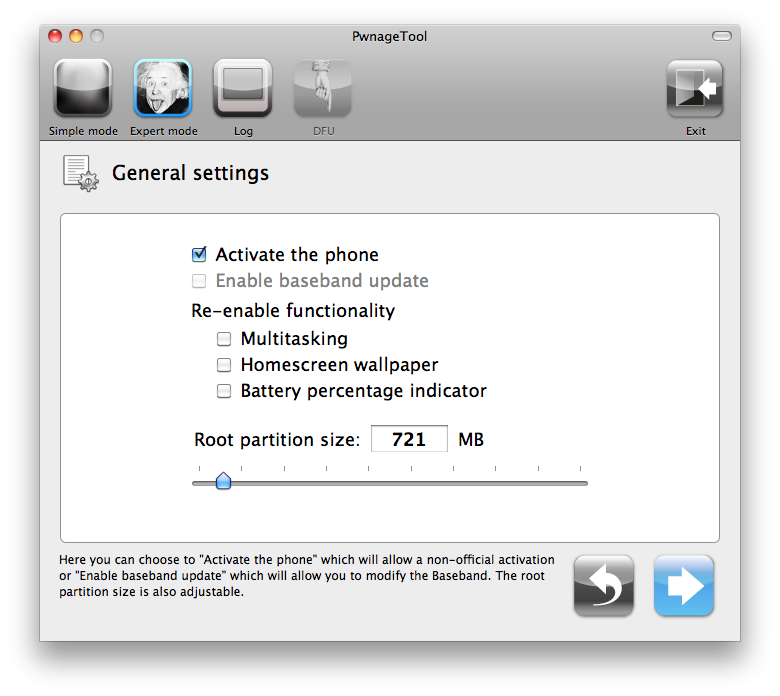

The General settings allows you to decide the partition size. Check Activate the phone if you are not with an official carrier then click the blue arrow button. Here you can also choose to enable iOS 4 features such as Multitasking, Wallpapers, and Battery Percentage. If you choose to do this please be aware that the performance of your device could suffer.

NOTE*: Deselect Activate if you have an iPhone legitimately activated on an official carrier.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]


The Cydia settings menu allows you to create custom packages so you do not have to manually install the necessary them later.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Click to select the Download packages tab. Then click the Refresh button to display all the available packages. Double clicking the package you want will download it and make it available in the Select Packages tab.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Checkmark the ones you want then click the blue arrow button.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

The Custom Packages Settings menu displays listed package settings for your custom IPSW. For know leave these settings as is. Click the blue arrow button to continue.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

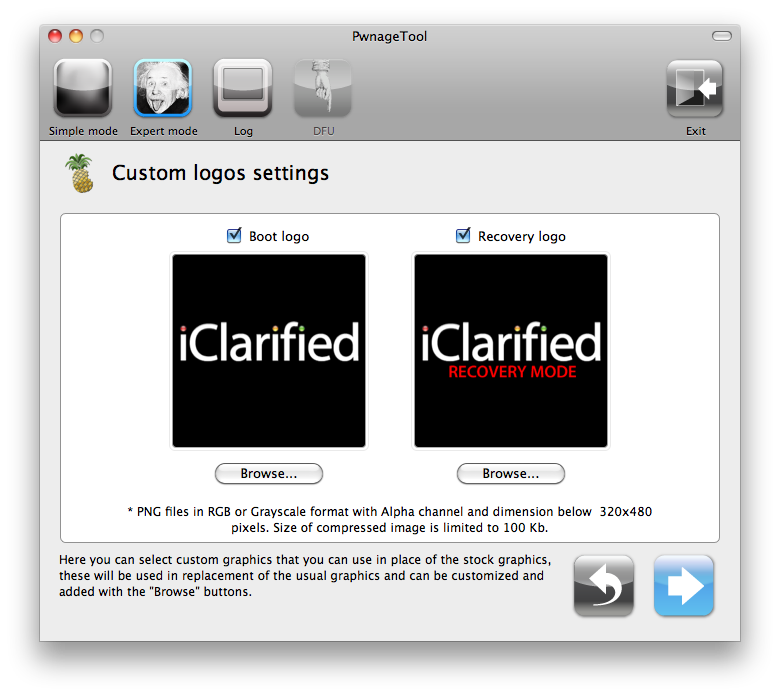

The Custom Logos Settings menu allows you to add your own images as boot logos. Click the Browse button to select your Boot logo and Recovery logo. If you would like to use the iClarified ones they can be found here: Boot Logo, Recovery Logo
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Remember the rules for them: RGB or Grayscale format with Alpha channel and dimensions below 320x480...
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Click the blue arrow button to continue.

Step Seven

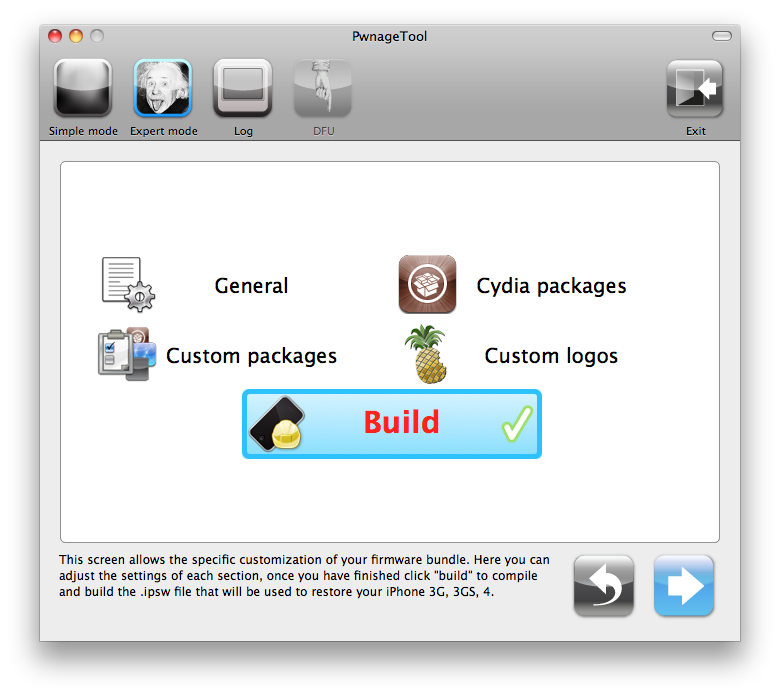

You are now ready to begin the pwnage process! Click the Build button to select it then click the Blue arrow button to begin.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Eight
You will be asked to save your custom .ipsw file. Save it to your Pwnage folder you created on your Desktop.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Your IPSW is now being built. Please allow up to 10 minutes.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

You will be asked to enter your administrator password. Do this then click the OK button.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Nine

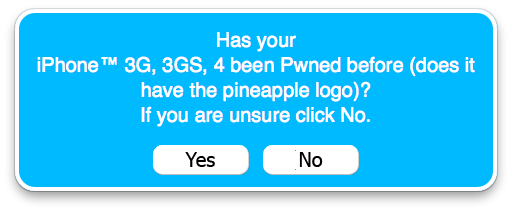

When prompted if your iPhone has been Pwned before, we clicked No. It allows for a more thorough restore.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Once your ipsw has been built you will be asked to connect your iPhone to the computer. Once it detects your device PwnageTool will guide your through the steps to putting your iPhone into DFU mode.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

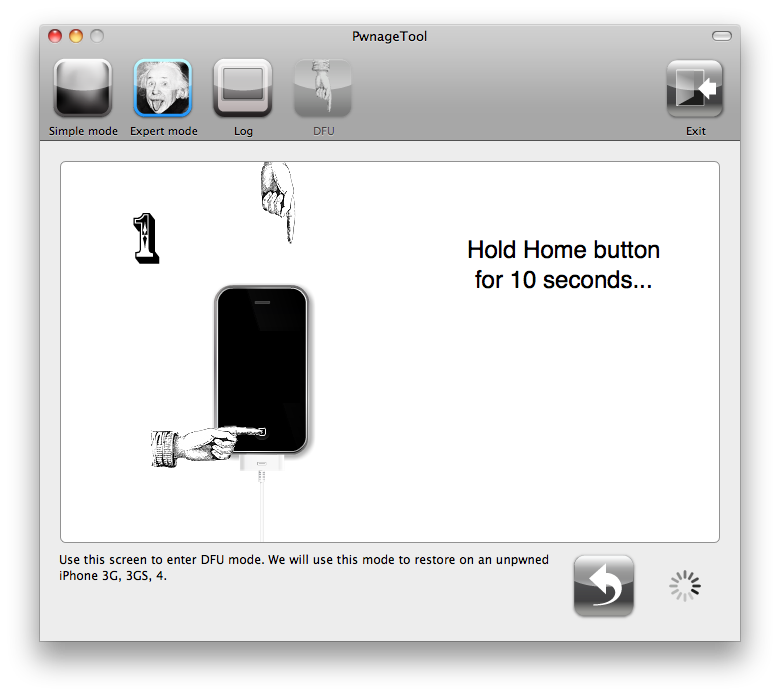

Press and hold the power and home buttons for 10 seconds.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Then release the power button and continue holding the home button for 10 seconds.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Once your iPhone is successfully in DFU mode, PwnageTool will prompt you to launch iTunes.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Ten

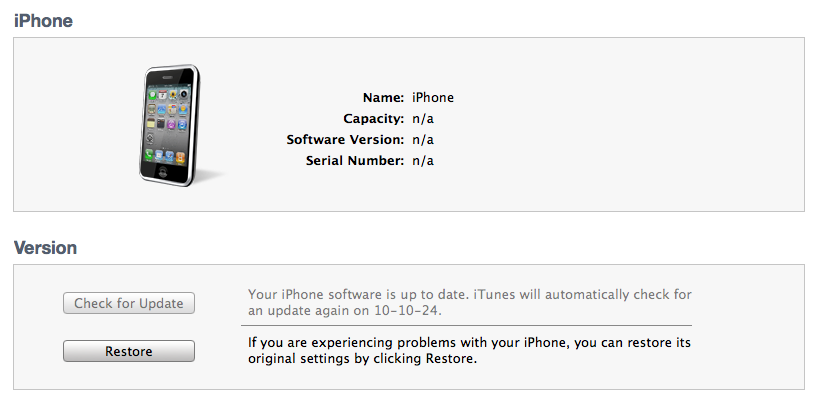

Once In iTunes, hold the Alt/Option key and click Restore.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Eleven

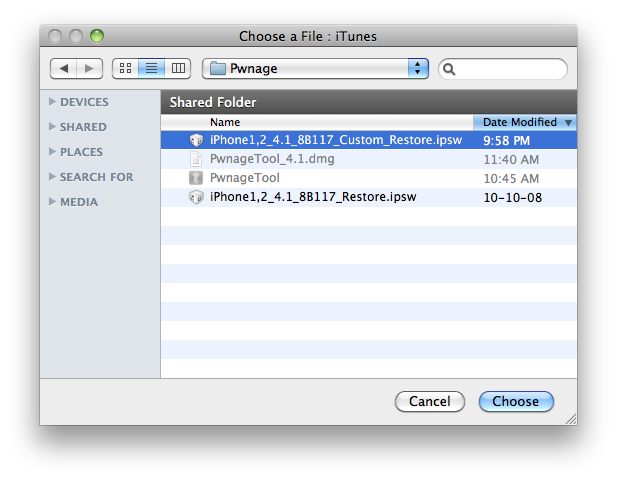

Navigate to the Pwnage folder on your desktop using the dialog window that appears. Select the custom IPSW that was created and click the Choose button.
How to Jailbreak Your iPhone 3G Using PwnageTool (Mac) [4.1]

Step Twelve
iTunes will now restore the firmware on your iPhone. This can also take up to 10 minutes. Once done you will be rebooted into jailbroken iOS 4.1!

UNLOCK: You can follow this tutorial to unlock your device if you are still on the 05.13.04 baseband.

***THANKS: Thank you to Geohot and the Dev-Teams for their hard work in making this jailbreak and tutorial possible!
