These are instructions on how to perform a tethered jailbreak your iPod touch 2G using your Mac. This is a preliminary release of redsn0w from the iPhone Dev-Team. It is not supported in anyway and may void your warranty or brick your iPod.

After performing the jailbreak your iPod touch 2G will not be bootable without assistance from a tethered computer. Unless you really need a jailbreak we suggest waiting till the iPhone Dev-Team releases an untethered jailbreak.

That being said these are very detailed, very long instructions to help you as best possible.

Step One
Download redsn0w (rslite101.zip) to your desktop and double click to extract the rslite folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Two

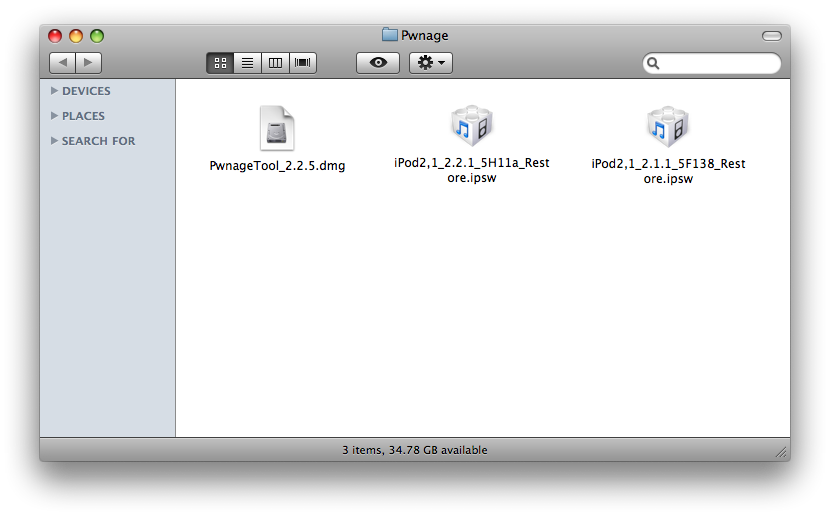

Create a folder on your desktop with the following files:
PwnageTool 2.2.5
iPod2,1_2.2.1_5H11a_Restore.ipsw
iPod2,1_2.1.1_5F138_Restore.ipsw
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Three

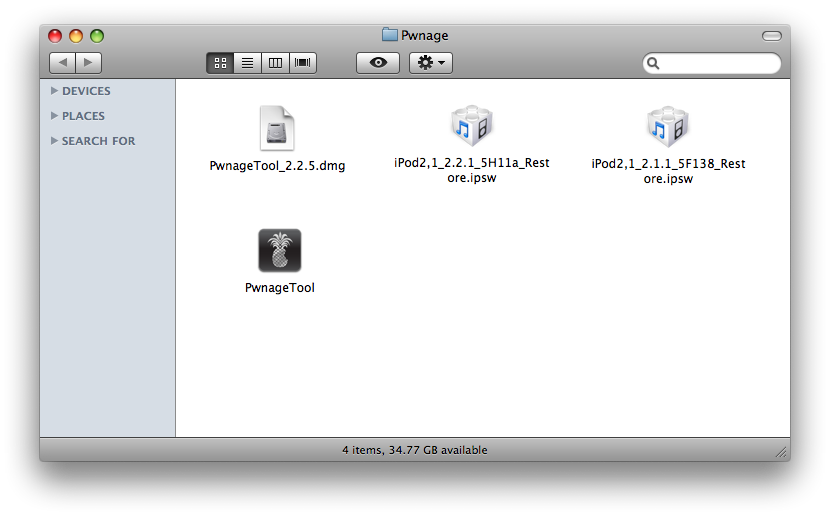

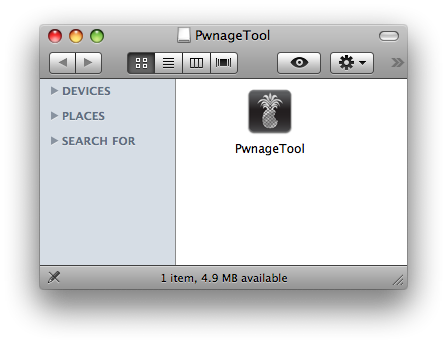

Double click to mount PwnageTool 2.2.5 then drag the PwnageTool icon into the Pwnage folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Four

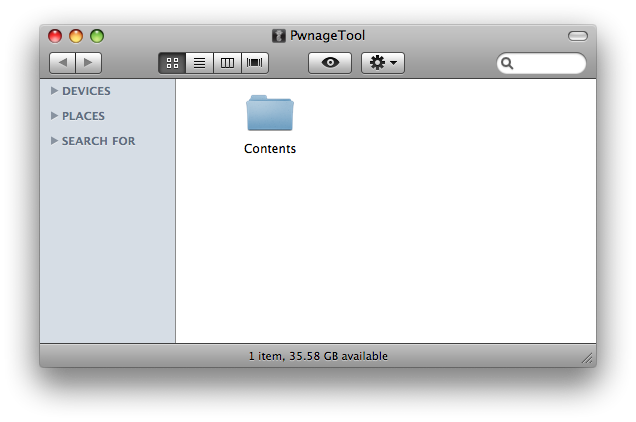

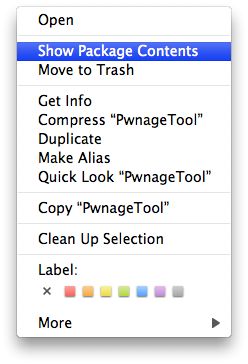

Hold down the Control button then click the PwnageTool icon in the Pwnage folder. Click Show Package Contents from the menu that appears.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

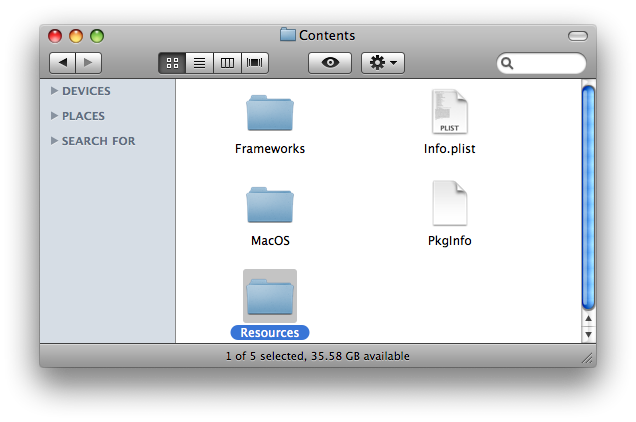

Double click the Contents folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Double click the Resources folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

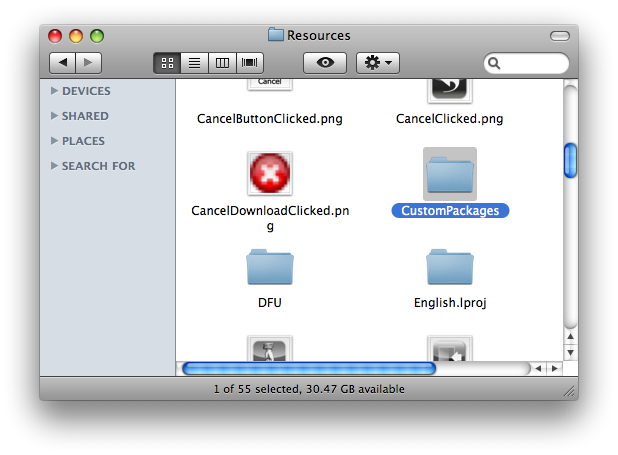

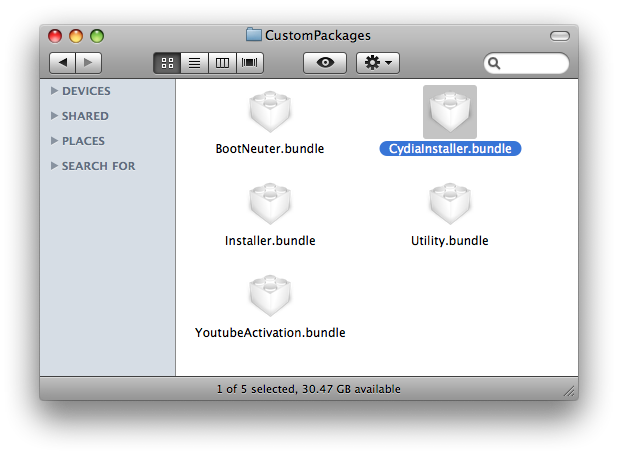

Double click the CustomPackages folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

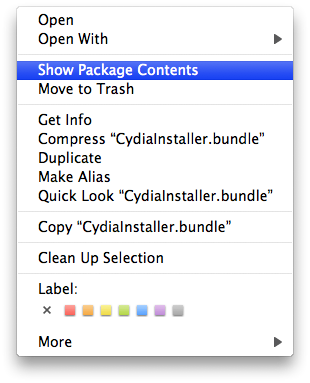

Hold down Control and click the CydiaInstaller.bundle file.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

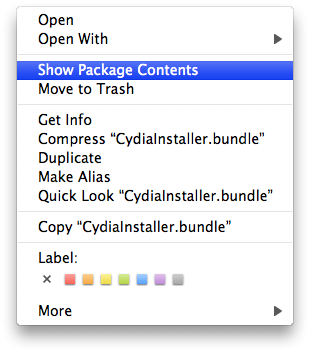

Select Show Package Contents from the menu that appears.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

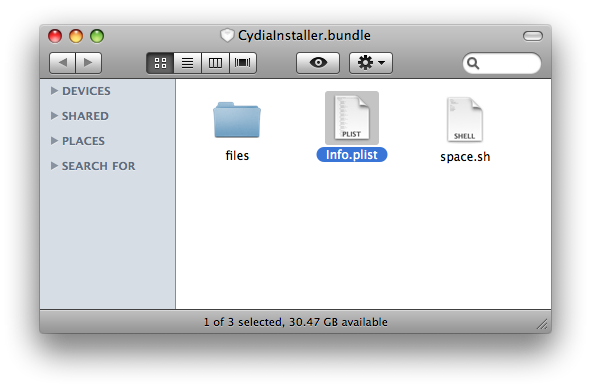

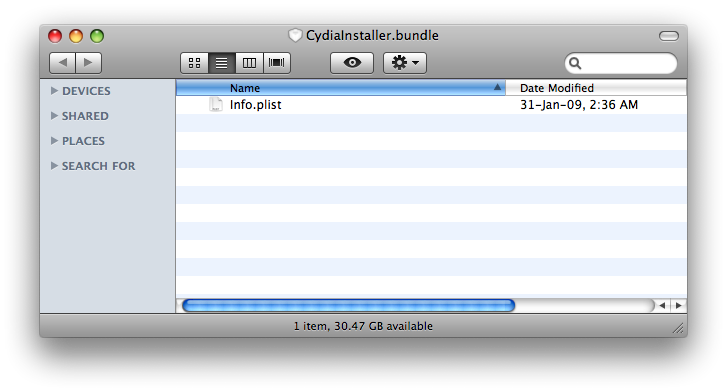

Notice the file Info.plist.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

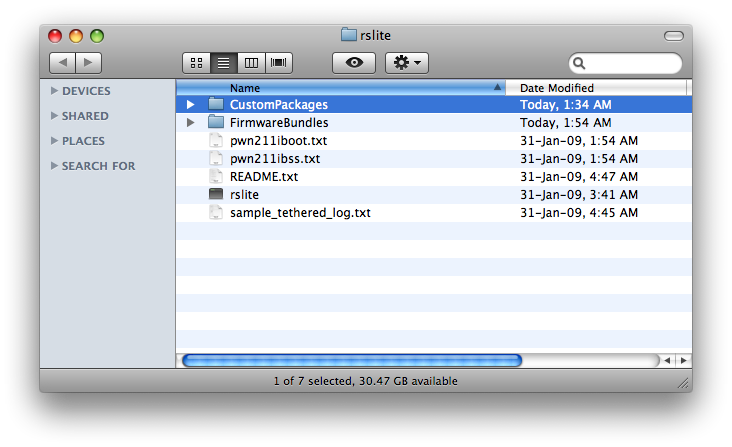

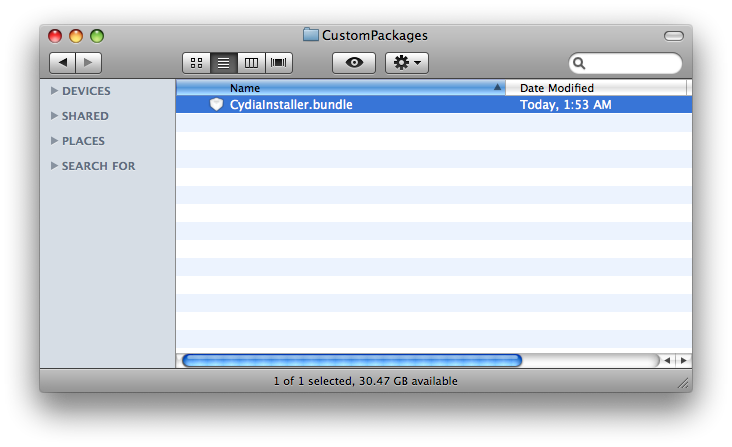

Keeping this window open double click the rslite folder on your desktop to open a second window then double click the CustomPackages folder inside it.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Hold down Control and click the CydiaInstaller.bundle file.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Select Show Package Contents from the menu that appears.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Drag the Info.plist file from the second window into the first (replacing the file that was there).
How to Tether Jailbreak Your iPod Touch 2G (Mac)

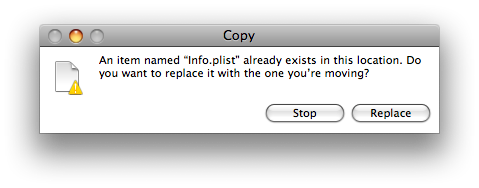

When asked to confirm click the Replace button.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Five

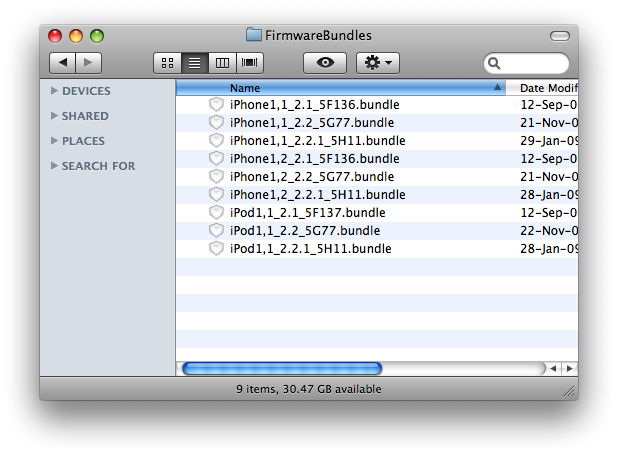

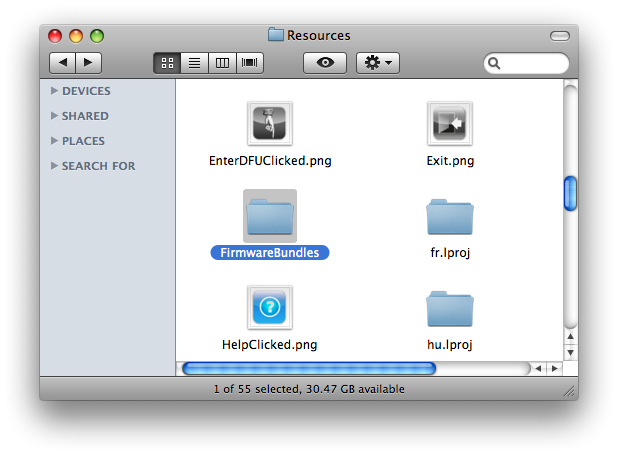

Press the Back button on the first CustomPackages window then double click the FirmwareBundles folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

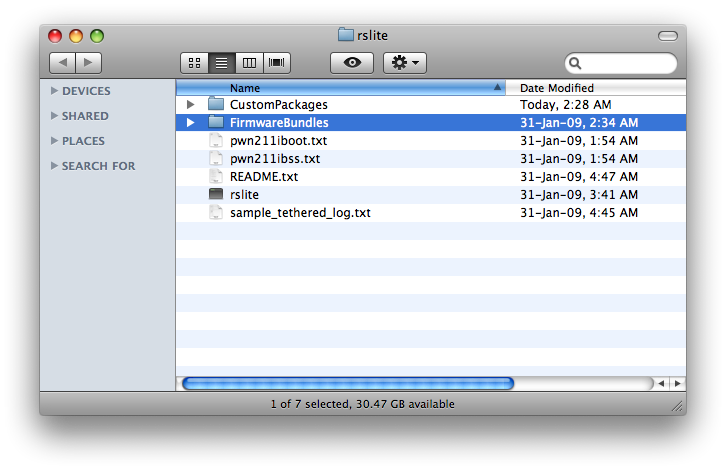

Press the Back button on the second CustomPackages window (within rslite) then double click the FirmwareBundels folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

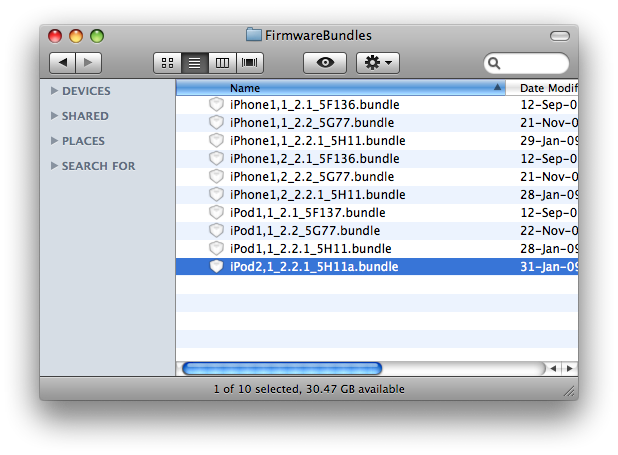

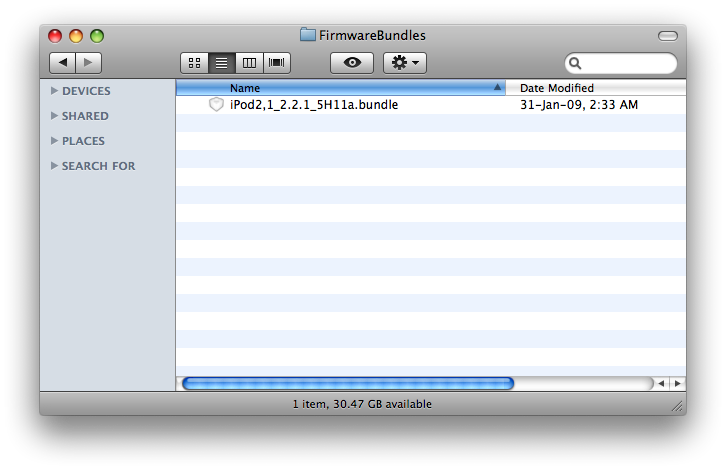

Drag the iPod2,1_2.2.1_5H11a.bundle from the second window into the first.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Six
Then from the Pwnage folder double click to launch the PwnageTool application.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

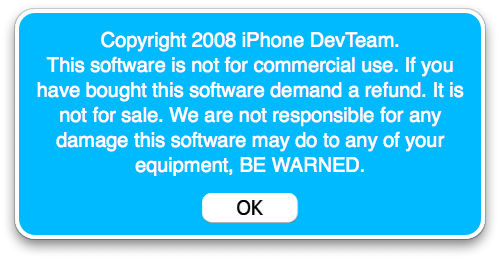

Click Ok if presented with a warning.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Seven
Click to select Expert Mode from the top menu bar
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Eight

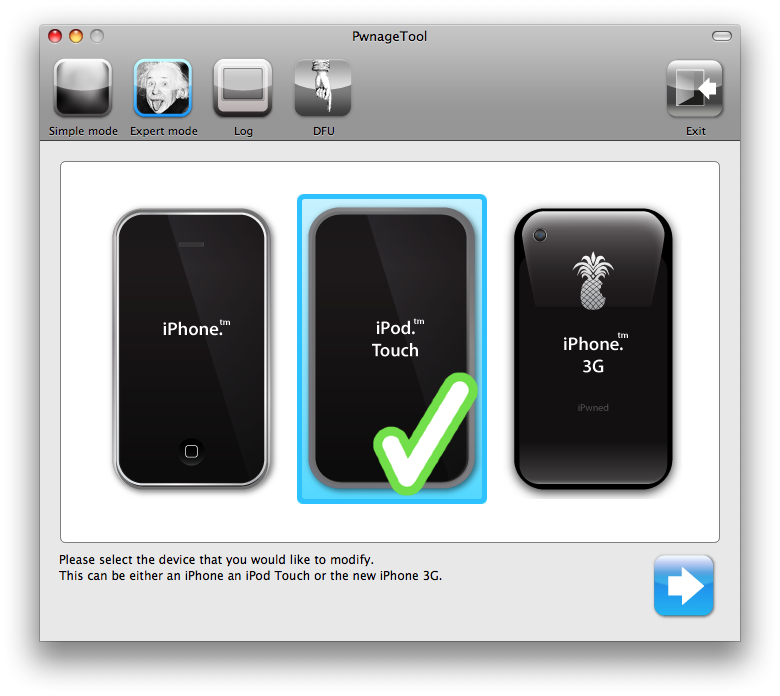

Click to select the iPod. A check-mark will appear over the image of the iPod.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Nine

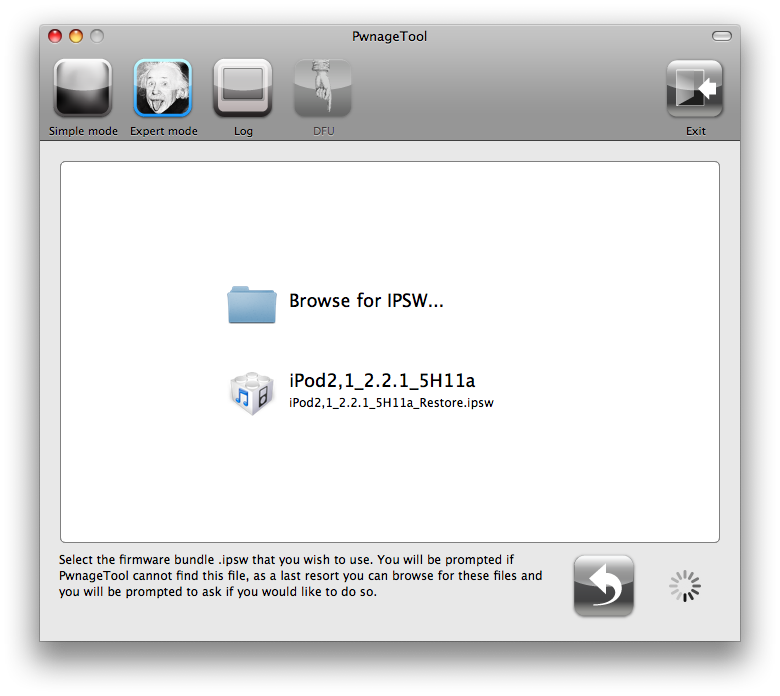

Click the blue arrow button to continue. You will be brought to the "Browse for IPSW" page. On my laptop, it automatically found the IPSW. If PwnageTool doesn't automatically find the ipsw file you can click Browse for IPSW....
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Click to select the found IPSW file, a checkmark will appear next to it. Then click the blue arrow button to continue.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Ten

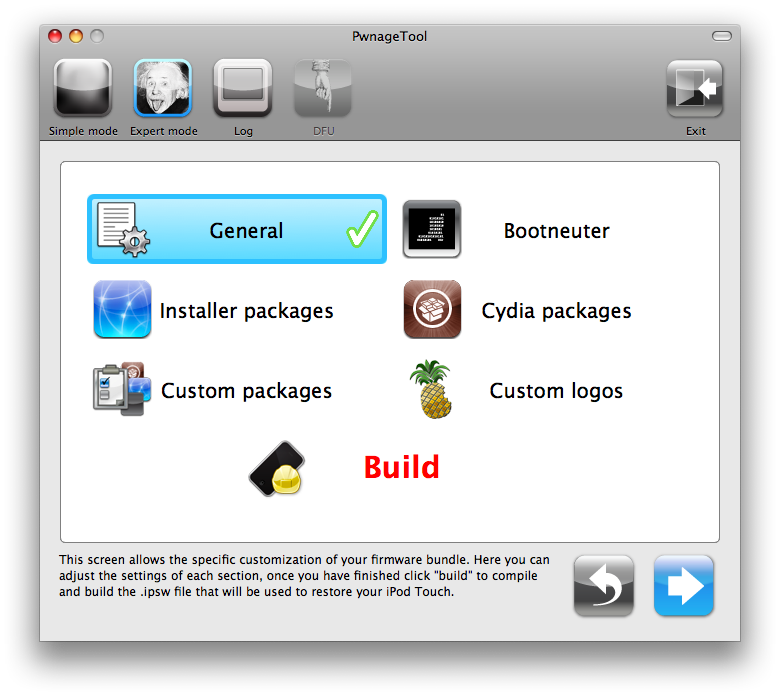

You will then be brought to a menu with 7 choices. Click to select General then click the blue arrow button.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

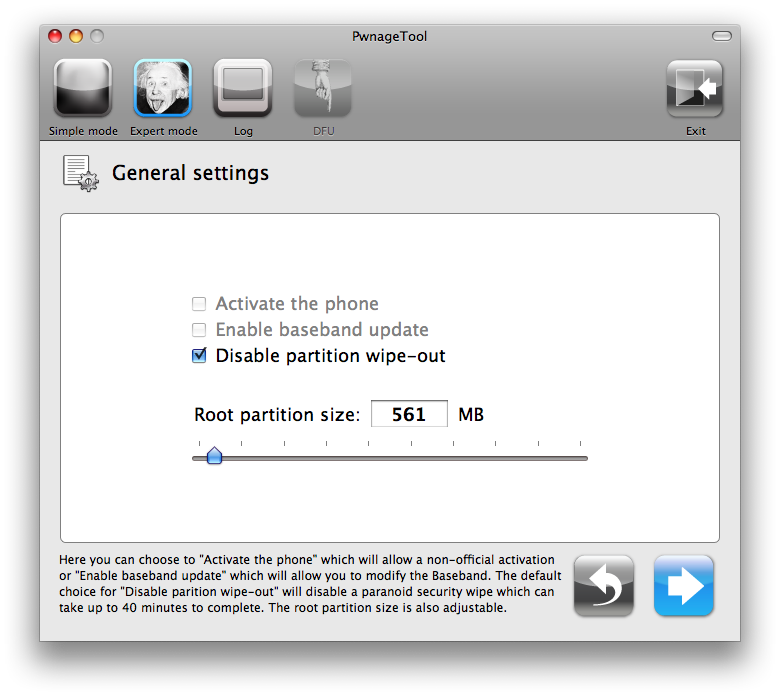

The General settings allows you to decide the partition size. Click the blue arrow button.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

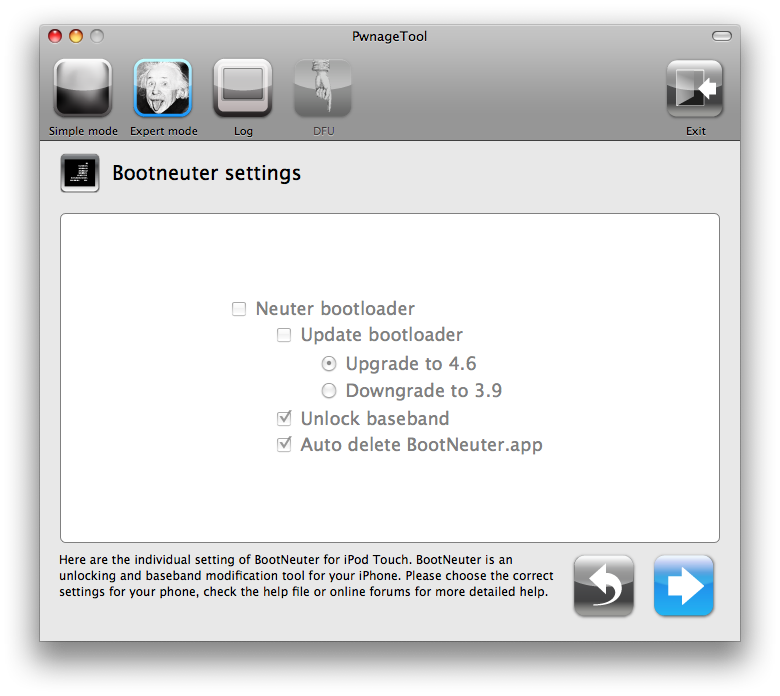

The Bootneuter settings are greyed out for the iPod. Click the blue arrow button.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

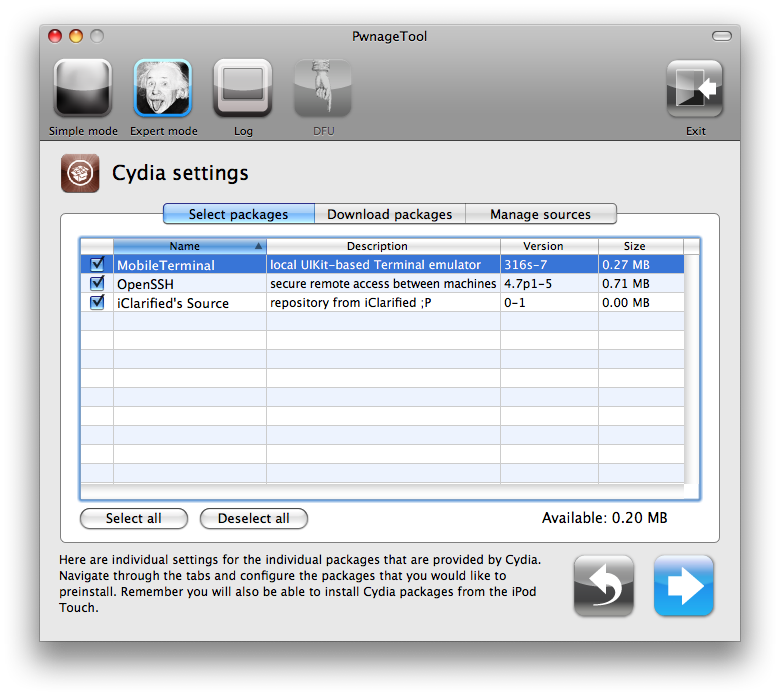

The Cydia settings menu allows you to create custom packages so you do not have to manually install the necessary them later.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Click to select the Download packages tab. Then click the Refresh button to display all the available packages. Double clicking the package you want will download it and make it available in the Select Packages tab. Checkmark the ones you want then Click the blue arrow button.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

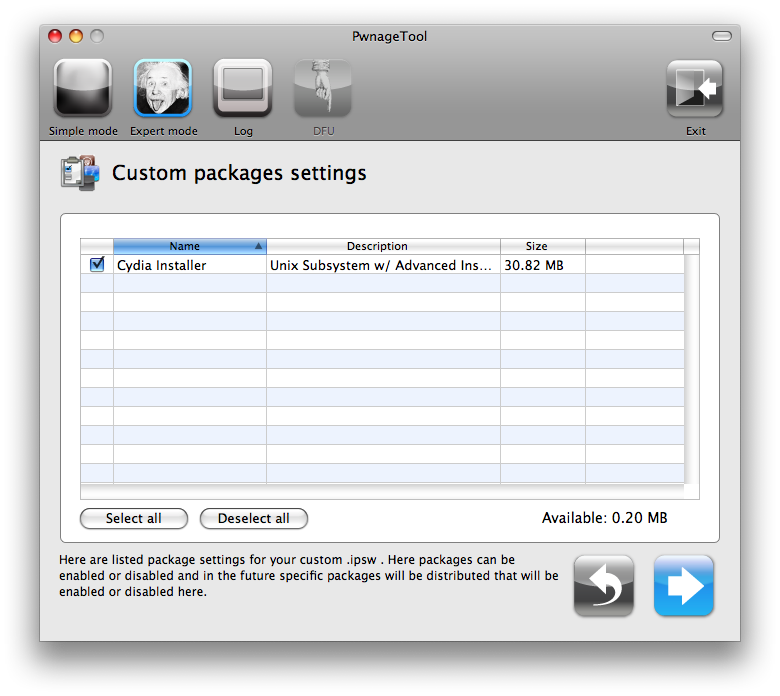

The Custom Packages Settings menu displays listed package settings for your custom IPSW. For know leave these settings as is. Click the blue arrow button to continue.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

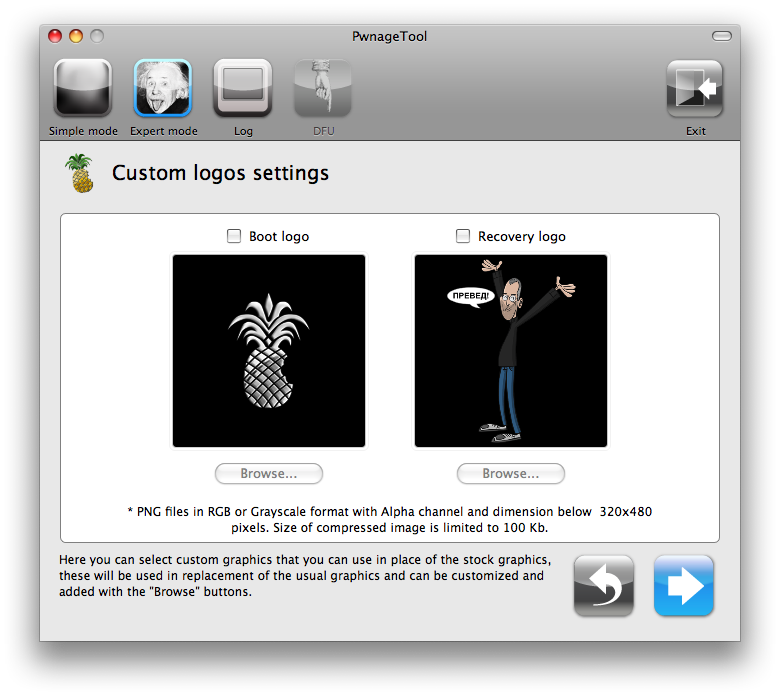

The Custom Logos Settings menu allows you to add your own images as boot logos. Currently this feature is not available for the iPod touch jailbreak. Please deselect both checkboxes.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

Click the blue arrow button to continue.

Step Eleven

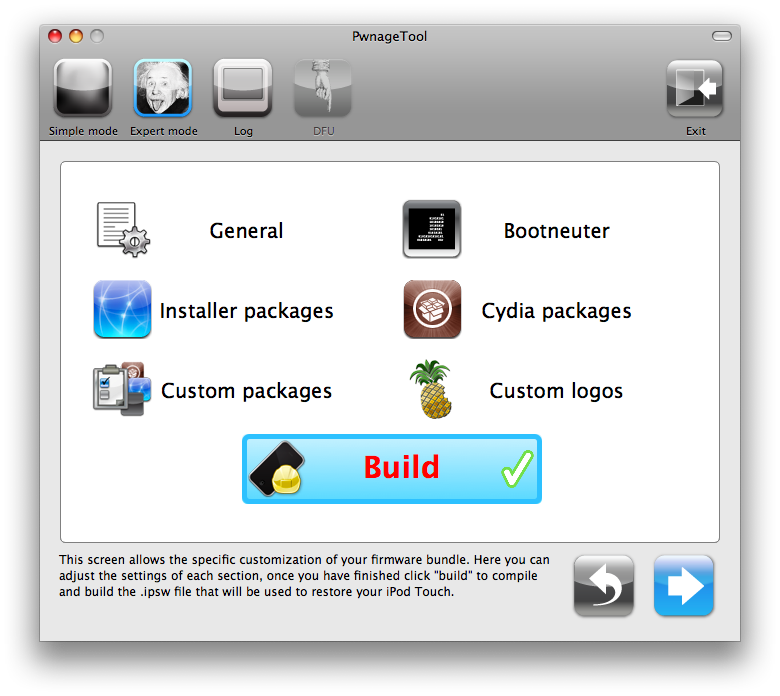

You are now ready to begin the pwnage process! Click the Build button to select it then click the Blue arrow button to begin.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Twelve

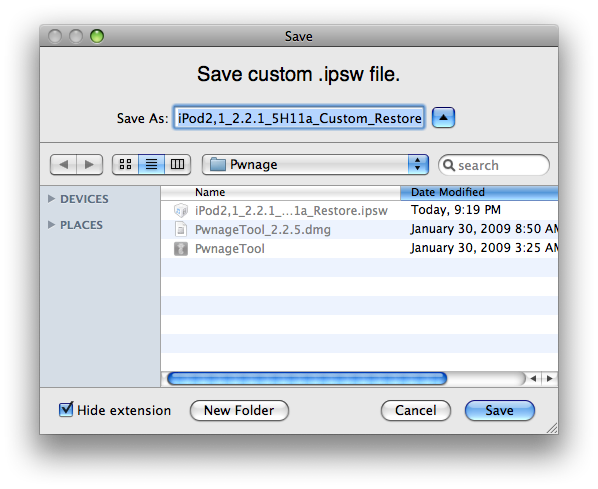

You will be asked to save your custom .ipsw file. Save it to your Pwnage folder you created on your Desktop.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

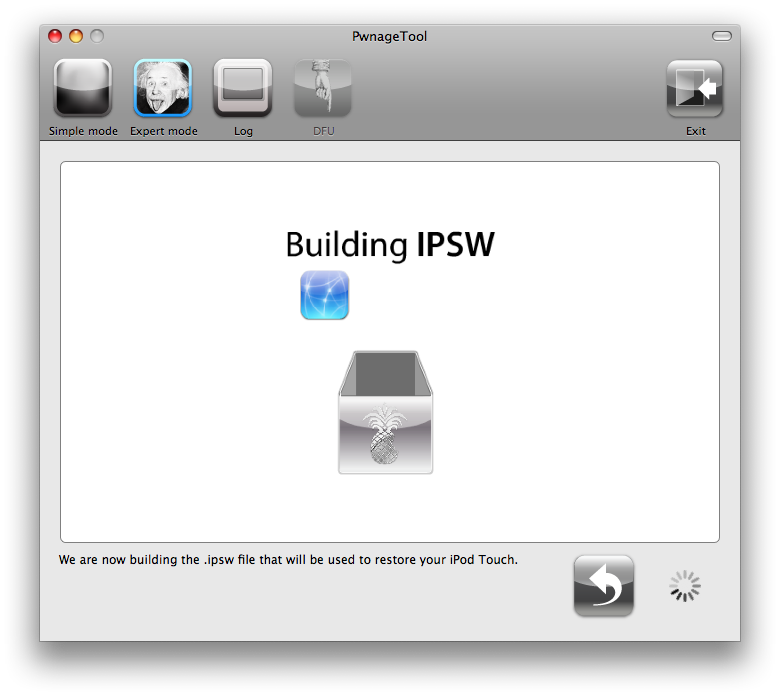

Your IPSW is not being built. Please allow up to 10 minutes.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

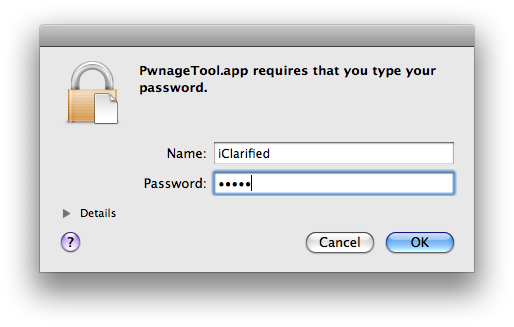

You will be asked to enter your administrator password. Do this then click the OK button.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

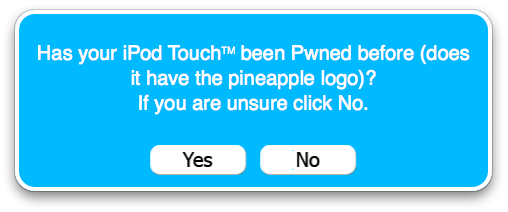

When prompted if your iPhone has been Pwned before, click Yes.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

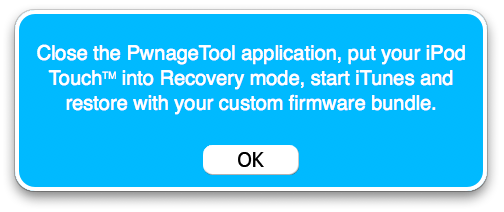

Click Ok when the next popup window appears.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Click the Exit button at the top right to close PwnageTool.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Thirteen

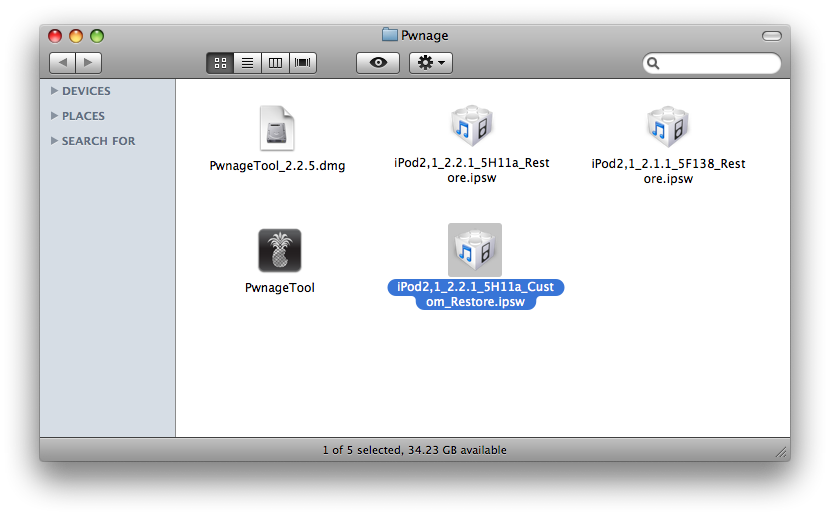

Notice a new iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw is created in your Pwnage folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

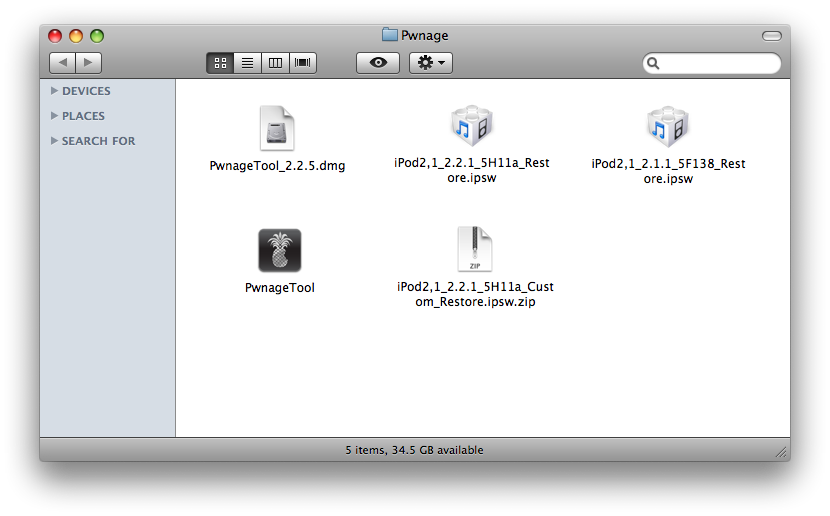

Select the iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw then add a .zip to the end of the filename. You can rename files by pressing the Enter key with the file selected.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Double click the iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw.zip file we just renamed to extract it.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

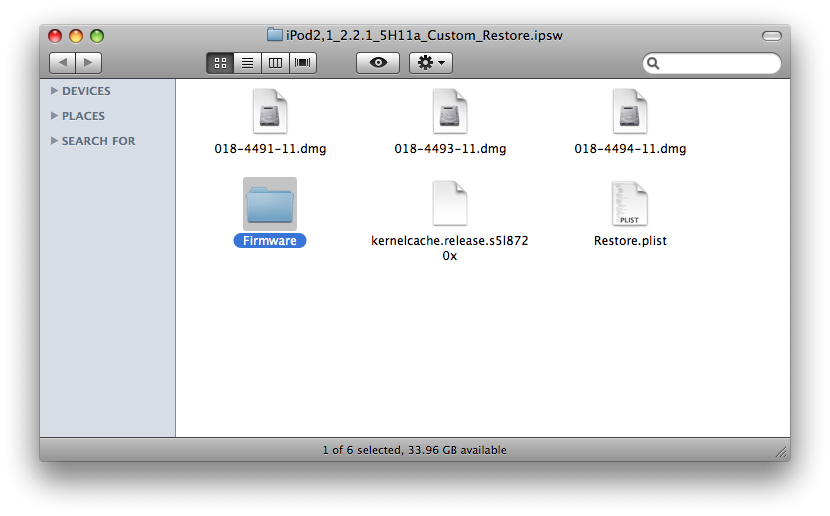

Double click the extracted iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Double click the Firmware folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

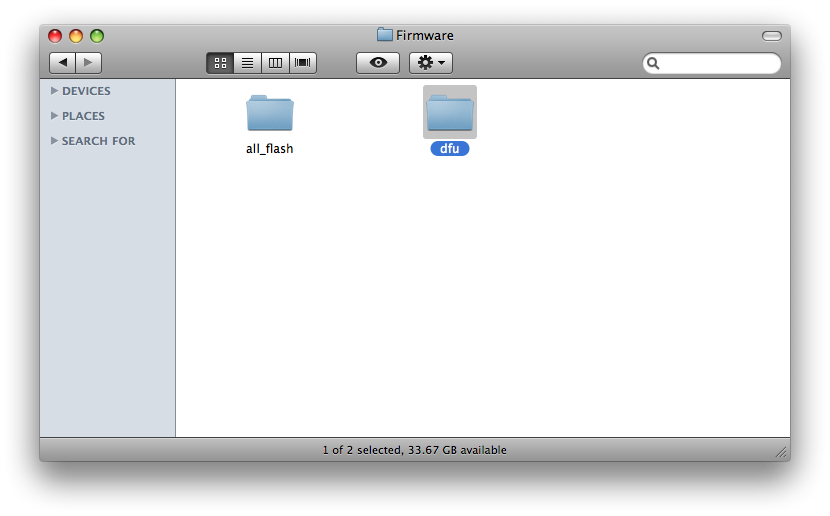

Double click the dfu folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

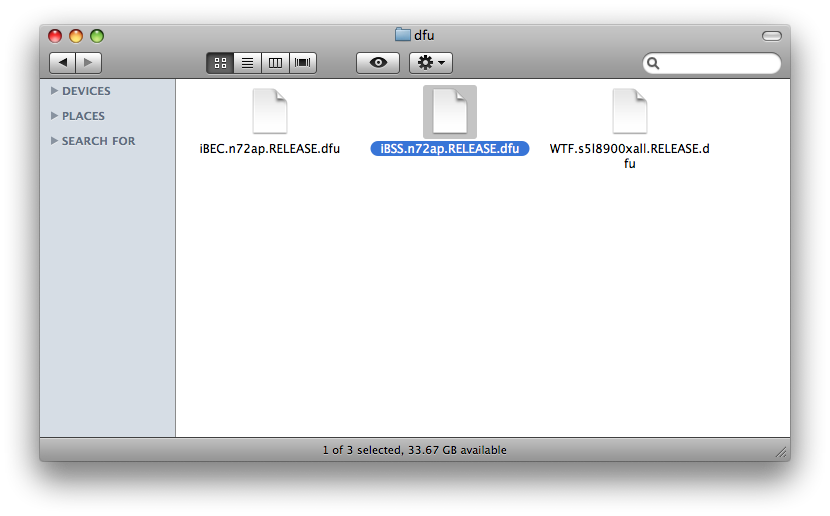

Select the iBSS.n72ap.RELEASE.dfu file and press Command+C to copy it to the clipboard.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

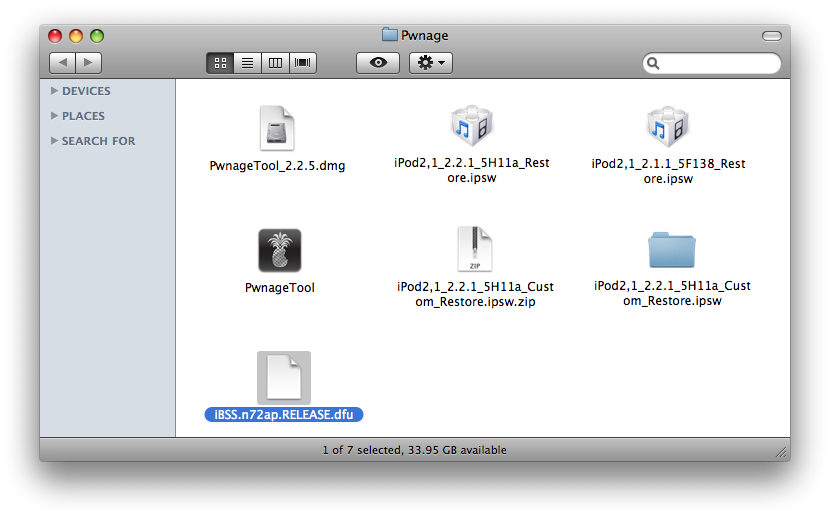

Press the back button till you return to the Pwnage folder and press Command+V to paste the iBSS.n72ap.RELEASE.dfu into the folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

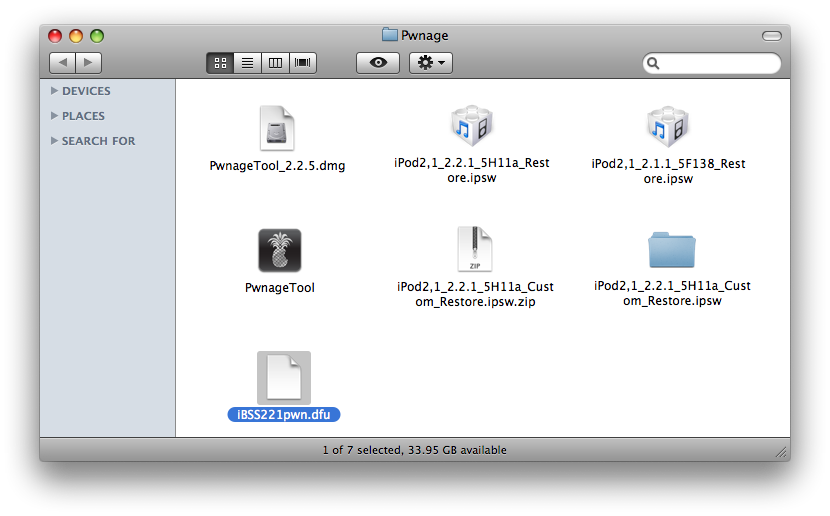

Select the file and press Enter to rename it to iBSS221pwn.dfu.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Double click the iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw folder to open it again. Then double click the Firmware folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

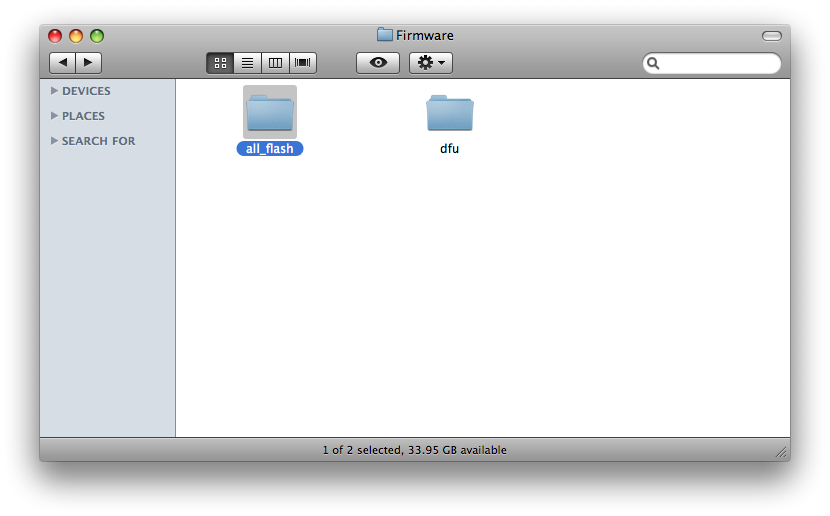

Double click the all_flash folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

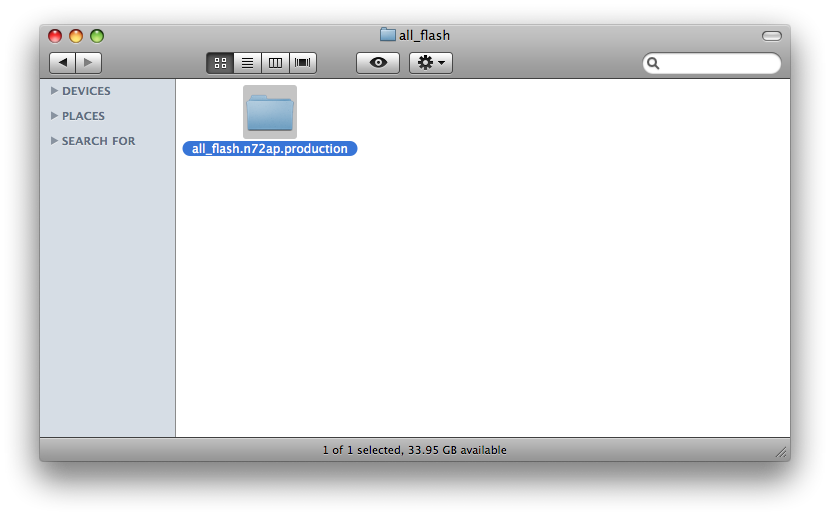

Double click the all_flash.n72ap.production folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

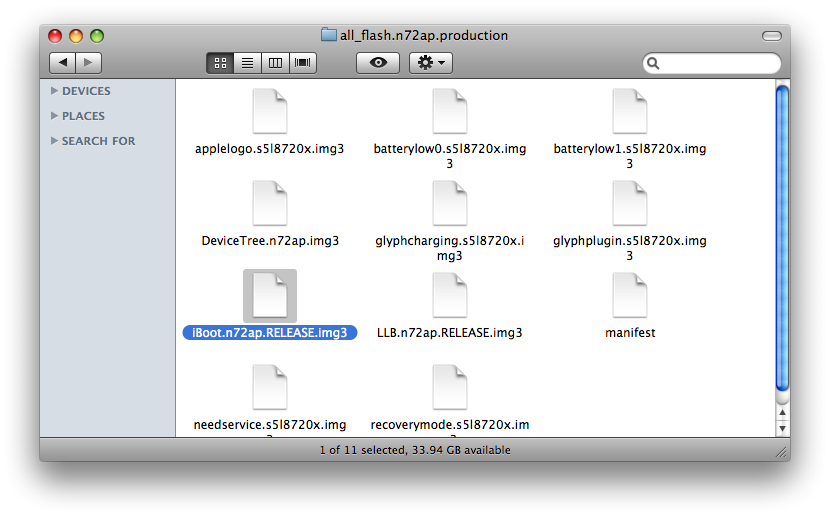

Select the iBoot.n72ap.RELEASE.img3 file and press Command+C to copy it to the clipboard.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Press the back button till you return to the Pwnage folder and press Command+V to paste the iBoot.n72ap.RELEASE.img3 into the folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

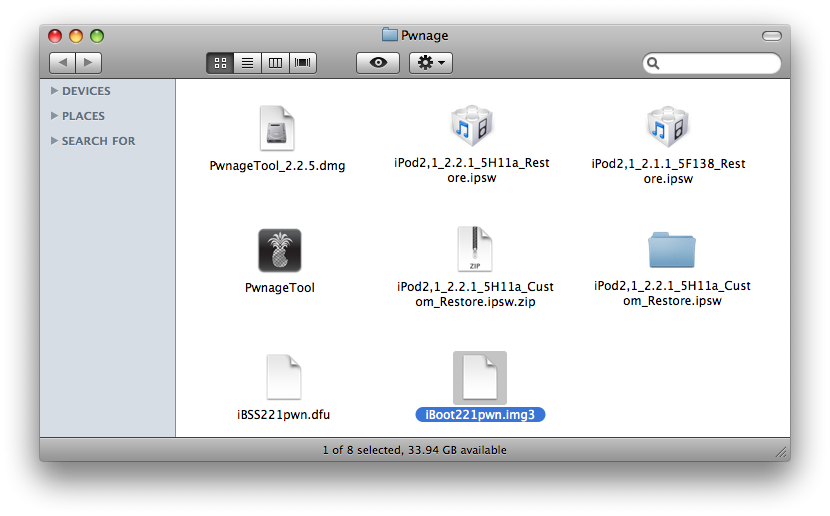

Select the file and press Enter to rename it to iBoot221pwn.img3.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Fourteen

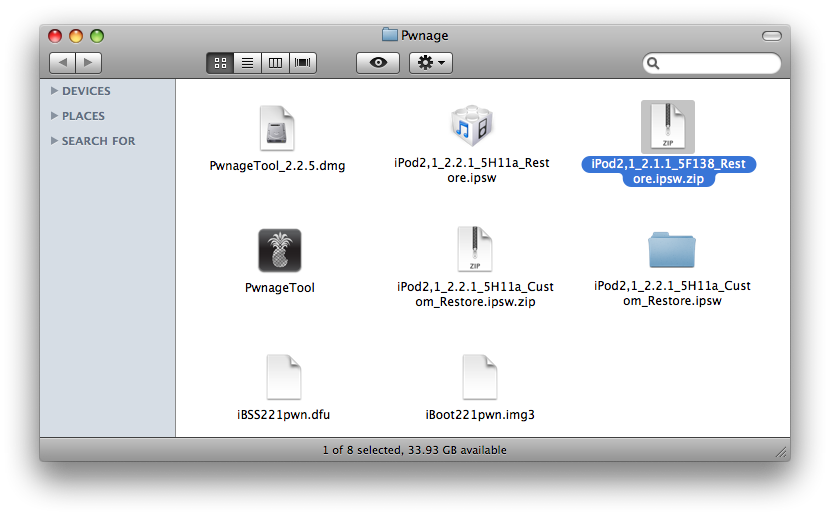

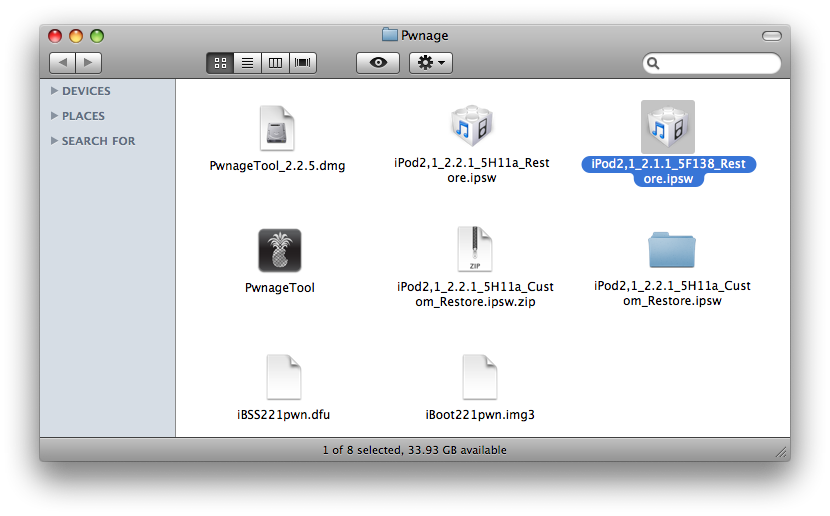

In the Pwnage folder select the iPod2,1_2.1.1_5F138_Restore.ipsw file and press Enter to rename it to iPod2,1_2.1.1_5F138_Restore.ipsw.zip.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Double click the iPod2,1_2.1.1_5F138_Restore.ipsw.zip you just created to extract it.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

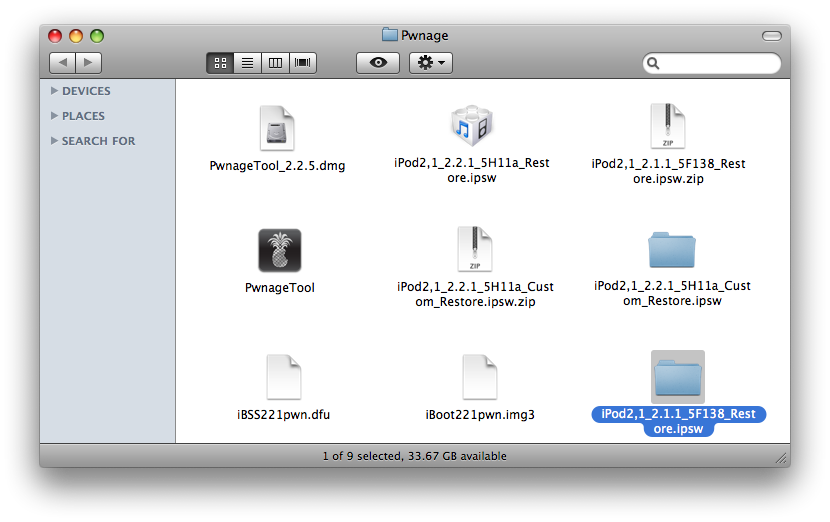

Double click the newly extracted iPod2,1_2.1.1_5F138_Restore.ipsw folder to open it.
How to Tether Jailbreak Your iPod Touch 2G (Mac)


Double click the Firmware folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Double click the dfu folder to open it
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Select the iBSS.n72ap.RELEASE.dfu file and press Command+C to copy it to the clipboard.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

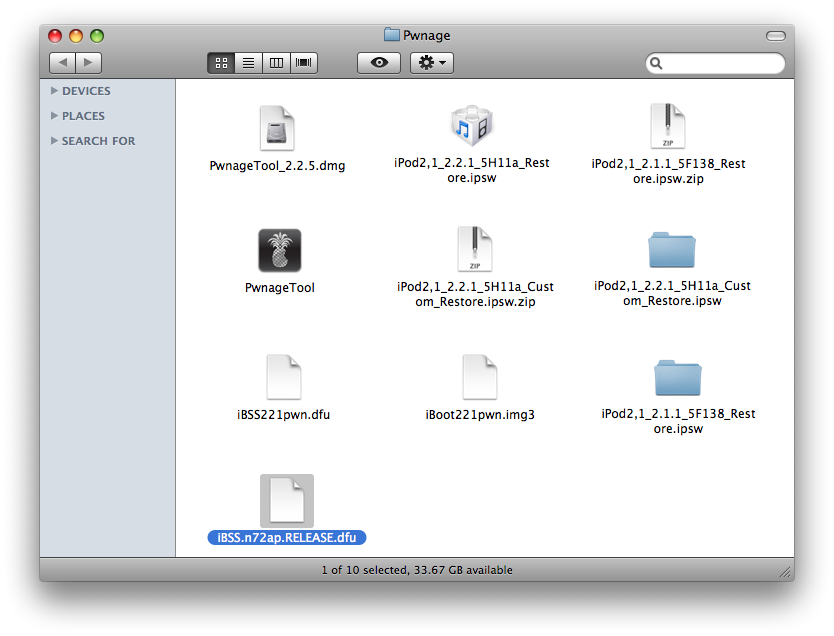

Press the back button till you return to the Pwnage folder and press Command+V to paste the iBSS.n72ap.RELEASE.dfu into the folder.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

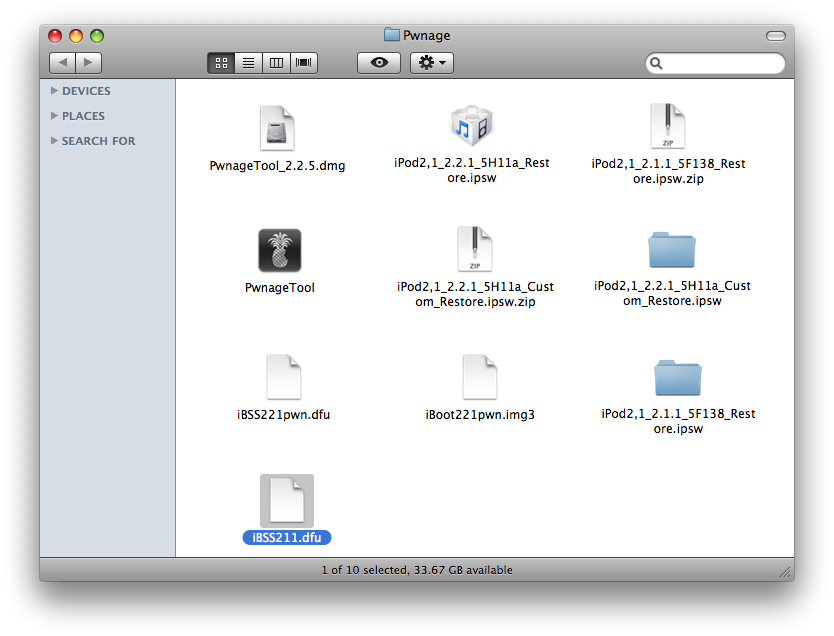

Select the file and press Enter to rename it to iBSS211.dfu.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Fifteen

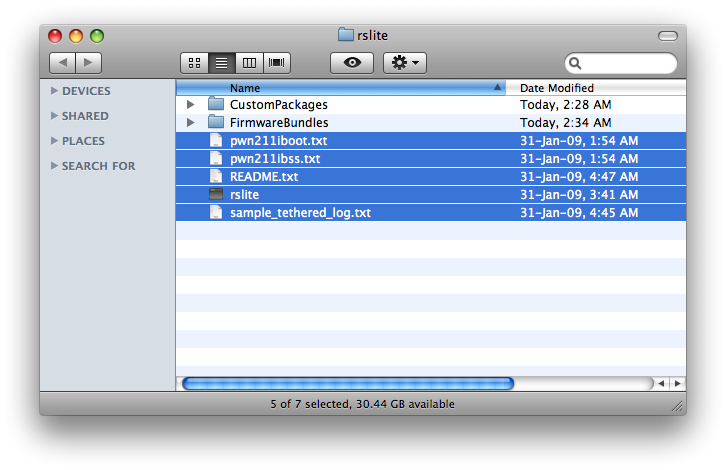

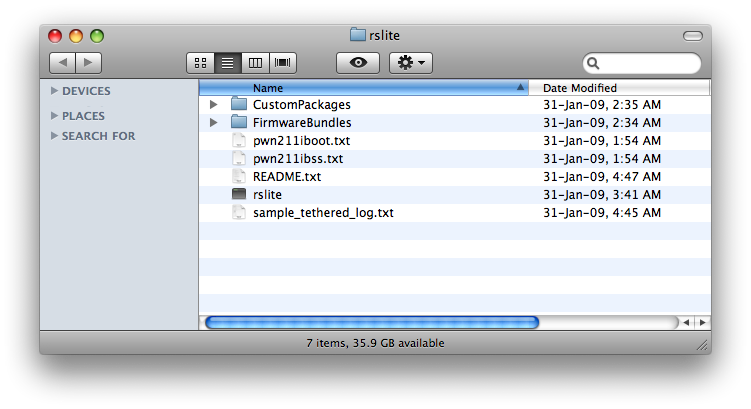

Open the rslite folder on your Desktop and select only the files (not the folders).
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Drag(or copy) these files into the Pwnage folder you already have open.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Select the iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw folder and press Command+Delete to delete it.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

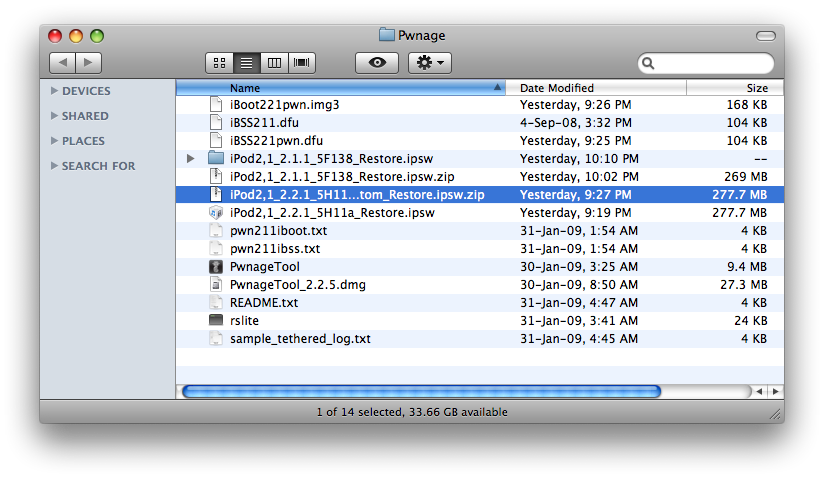

Select the iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw.zip file and press Enter then rename it to iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Sixteen
If you do not have libusb installed on your Mac you will need to install it now. Please skip this step if you have libusb. Note*: You will likely need XCode to install libusb. You can install it from here

Download libusb (legacy) from here and place it on your desktop.

Double click the downloaded file (libusb-0.1.12.tar.gz) to extract it.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Launch the Terminal utility from Applications:Utilities.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

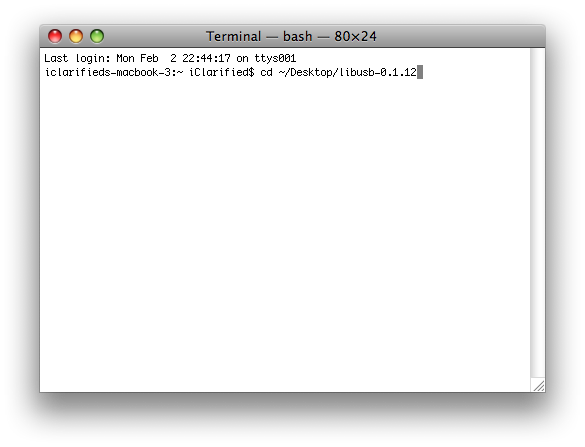

Type cd ~/Desktop/libusb-0.1.12 into the Terminal window and press Enter.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

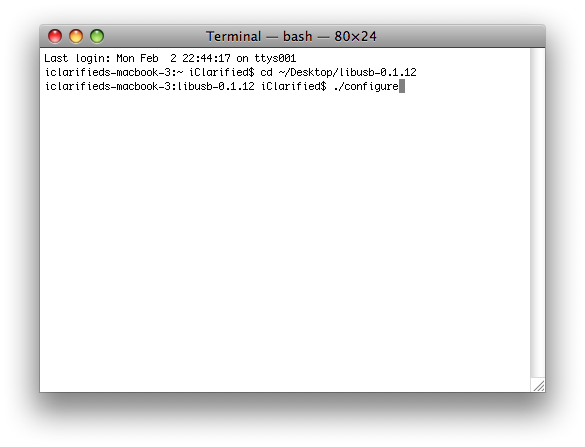

Type ./configure into the Terminal window and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

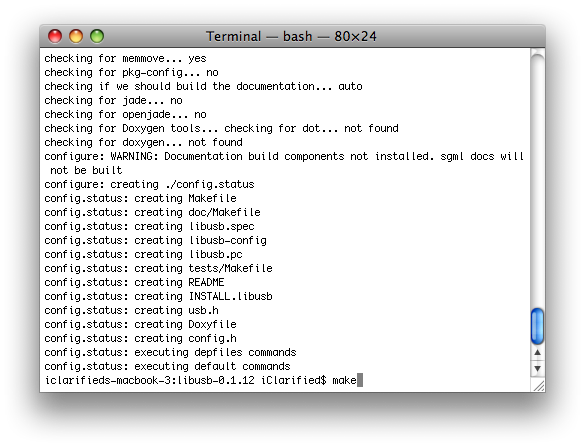

Type make into the Terminal window and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

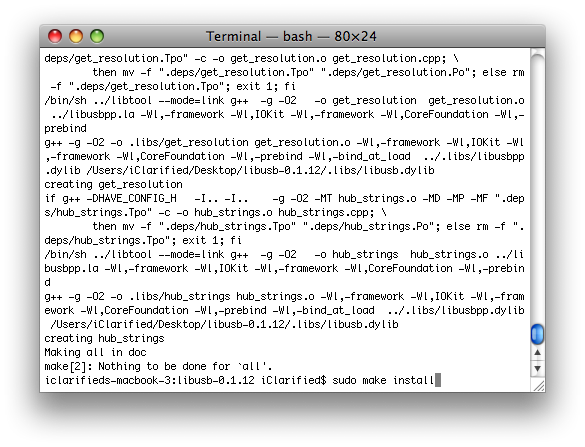

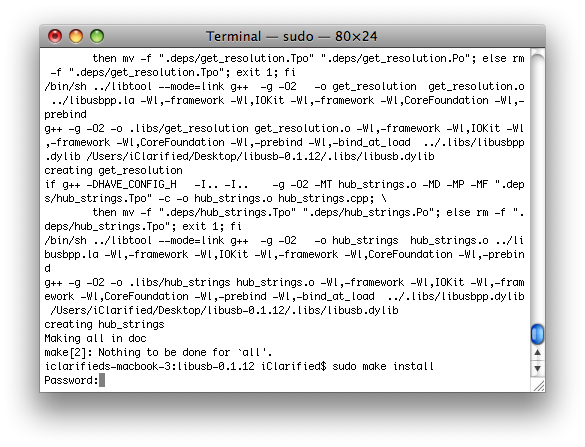

Type sudo make install into the Terminal window and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

You will be asked to provide your administrator password for Mac OS X. Please do this then press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

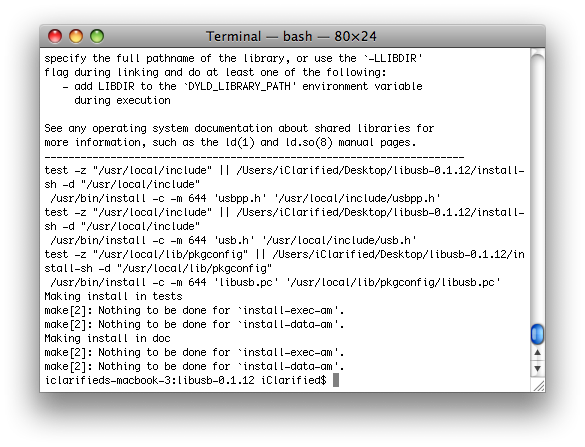

Installation of libusb will complete shortly.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Seventeen
You will now need to put your iPod touch 2G into DFU mode. Make sure the iPod touch is connected to the computer and then follow these instructions. If you have Mac OS X 10.5.6 you will first need to enable DFU mode on your computer by using one of these suggestions.

Step Eighteen
In the Terminal window type cd ~/Desktop/Pwnage and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

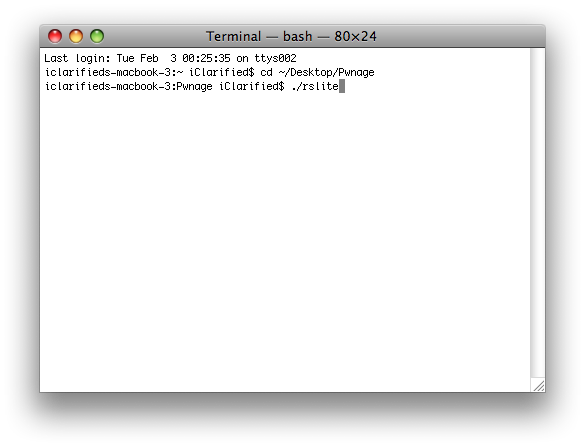

Make sure your iTunes application is QUIT. Then type ./rslite and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

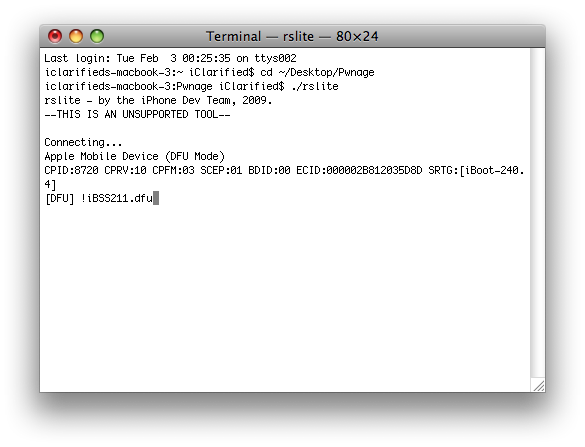

Your iPhone will be detected. Input !iBSS211.dfu then press Enter.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

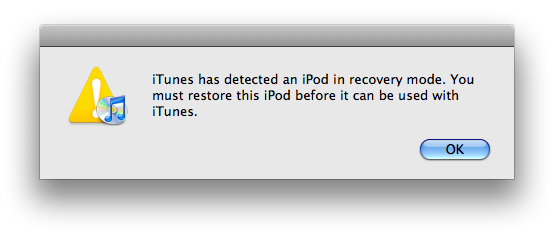

If iTunes pops up with a recovery mode message just ignore it for now.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

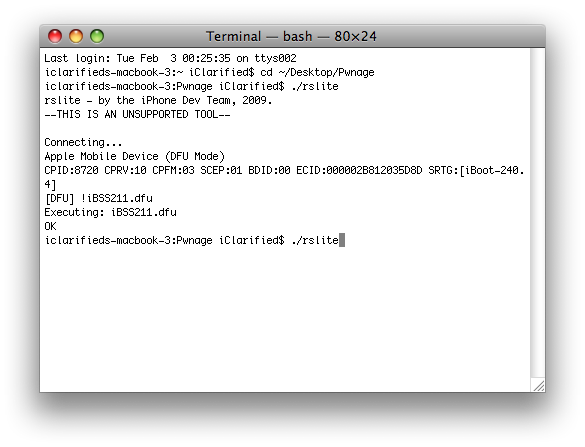

Once the program executes and exits type ./rslite into the Terminal window and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

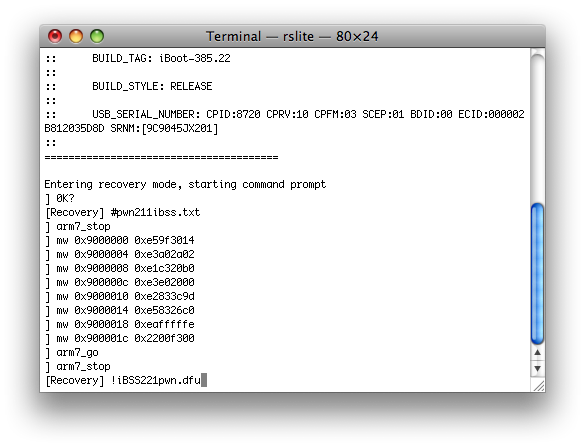

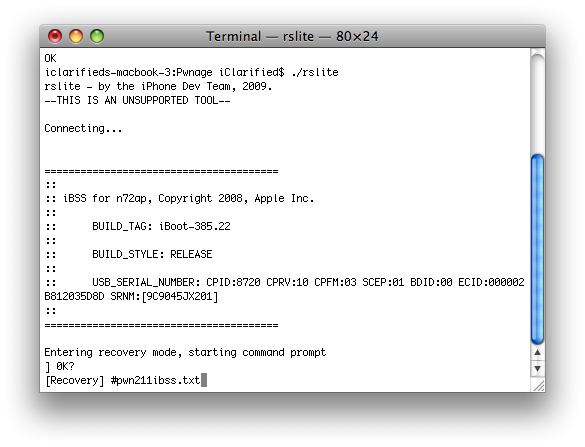

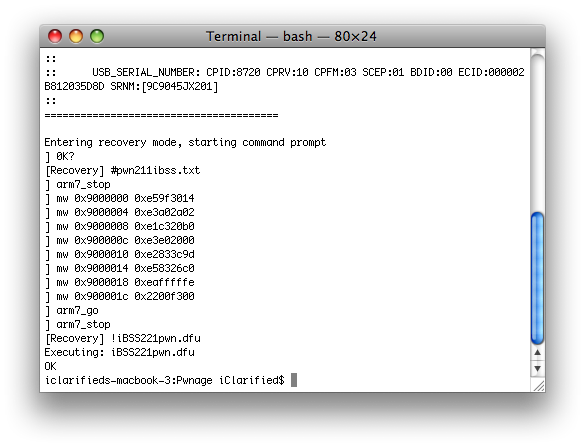

Your iPhone will be detected again. Input #pwn211ibss.txt then press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

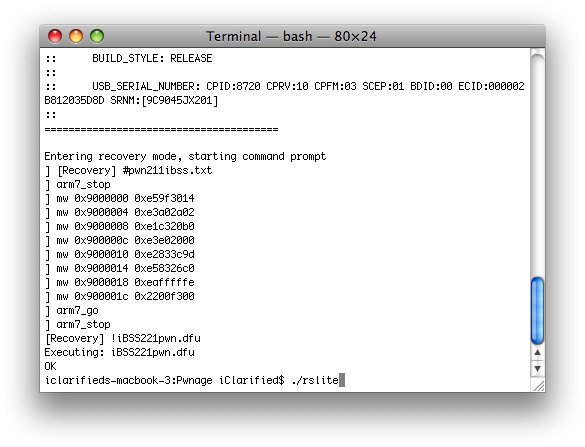

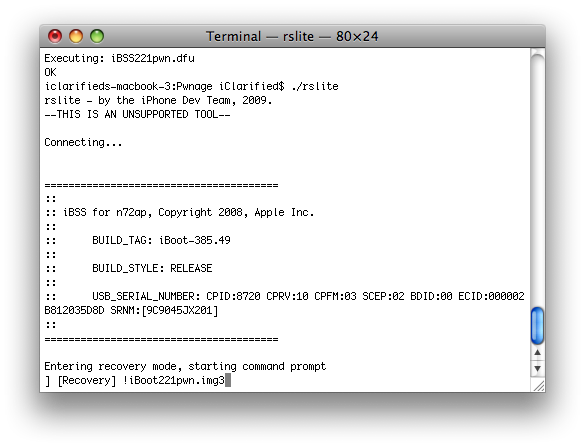

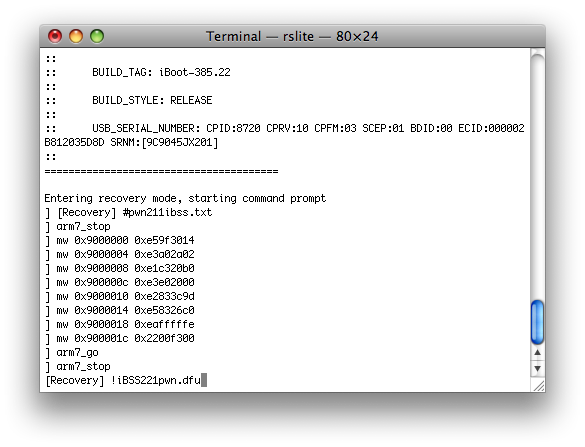

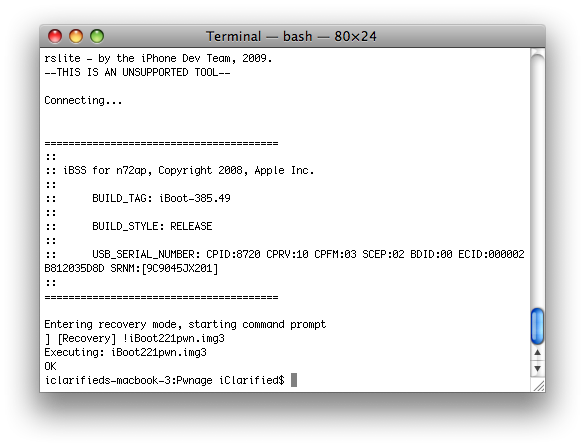

Once the process has completed input !iBSS221pwn.dfu and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Nineteen

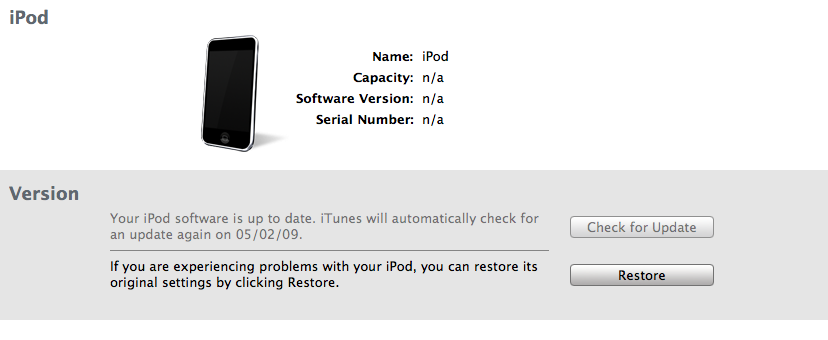

Now we can go to iTunes and restore to our custom firmware. Hold down the option key and press the Restore button.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

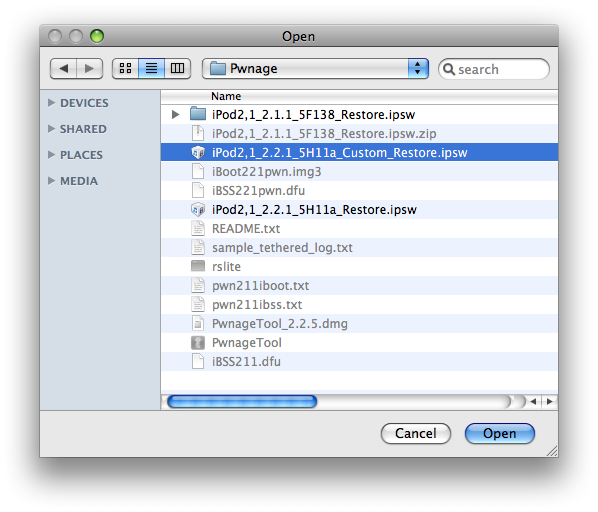

Select your iPod2,1_2.2.1_5H11a_Custom_Restore.ipsw file from the Pwnage folder on your desktop and click Open
How to Tether Jailbreak Your iPod Touch 2G (Mac)

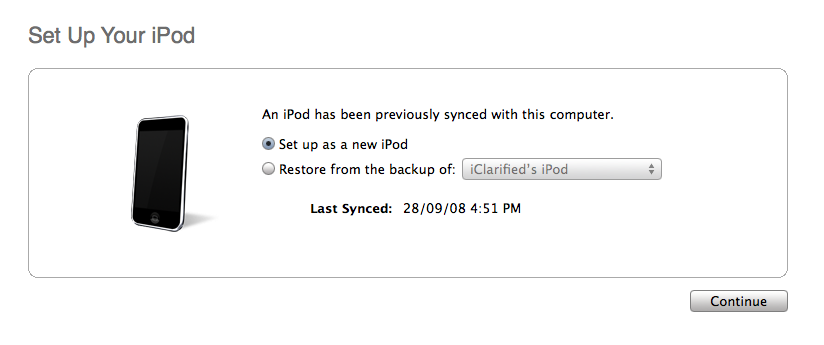

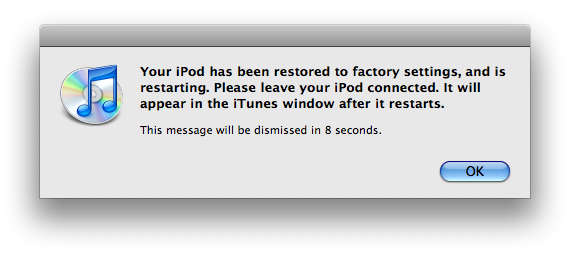

Once the firmware has installed you will be informed that Your iPod has been restored to factory settings and is restarting.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

IT IS THESE COMMANDS YOU NEED TO REPEAT EVERYTIME YOU BOOT
Step Twenty
At this point it will seem as though your iPod touch is not restarting. In fact, it will seem as though the iPod touch has been bricked completely. Hopefully its not. You will need to put the iPod touch into DFU mode without being able to see anything on the screen. Basically hold down both buttons for a count of 10 then release the power button until iTunes detects the device.

Step Twenty One

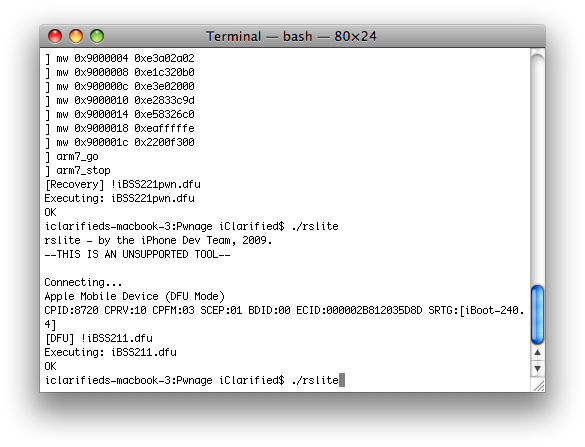

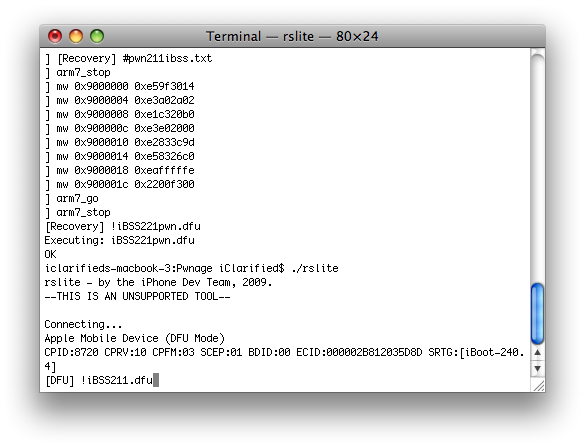

Make sure your iTunes application is QUIT. Then type ./rslite into the Terminal window and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Your iPhone will be detected. Input !iBSS211.dfu then press Enter.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

If iTunes pops up with a recovery mode message just ignore it for now.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Once the program executes and exits type ./rslite into the Terminal window and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Your iPhone will be detected again. Input #pwn211ibss.txt then press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Once the process has completed input !iBSS221pwn.dfu and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Once the program executes and exits type ./rslite into the Terminal window and press Enter
How to Tether Jailbreak Your iPod Touch 2G (Mac)

Input !iBoot221pwn.img3 then press Enter.
How to Tether Jailbreak Your iPod Touch 2G (Mac)

How to Tether Jailbreak Your iPod Touch 2G (Mac)

Step Twenty Two
Your jailbroken iPod touch 2G will now boot properly and be detected by iTunes!
How to Tether Jailbreak Your iPod Touch 2G (Mac)
Add Comment
Would you like to be notified when someone replies or adds a new comment?
Yes (All Threads)
Yes (This Thread Only)
No
You must login or register to add a comment...
Thamizhavel
Thamizhavel - March 8, 2009 at 7:49am
How to exit the DFU mode. I did all the steps, Finally my ipodtouch2g is still in recovery mode. HOw to exti this Recovery mode..? Any help please?!
neo42ny
neo42ny - February 15, 2009 at 10:14am
Any news on doing the jailbreak on windows?
Brownboyzzz
Brownboyzzz - February 15, 2009 at 12:25pm
There is using redsn0w but the sucess rate isn't the best There are a few vids on YouTube try it @ ur own risk
brownboyzzz
brownboyzzz - February 22, 2009 at 1:57pm
http://www.youtube.com/watch?v=0Uy00QsBO2c tethered jailbreak
Steve
Steve - February 15, 2009 at 7:21am
When I Input #pwn211ibss.txt I keep getting an error after arm7_go. Any thoughts?
12 More Comments
Recent
