The Apple A4 Chip Gets Deconstructed

The Apple A4 Chip Gets Deconstructed

Posted by · 5988 views
iFixIt has partnered with Chipworks, a semiconductor reverse engineering company, to offer a closer look at the iPad's chips.

Some Observations:

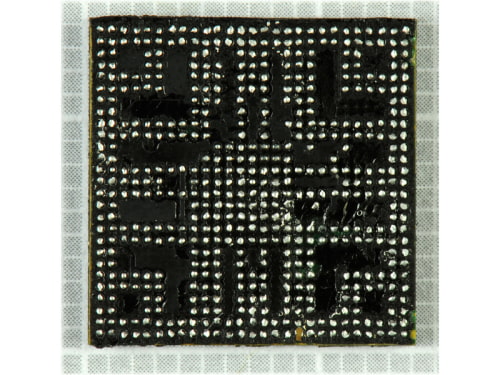

- The A4 is an ARM processor featuring package-on-package construction to improve the speed and efficiency of internal processes.

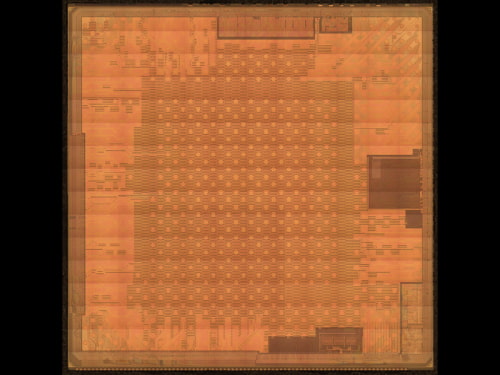

- The A4 has three layers: Two layers of RAM (Samsung K4X1G323PE), and one layer containing the actual microprocessor.
- This Package-on-Package construction gives Apple the flexibility to source the RAM from any manufacturer they want—they're not locked into Samsung.
- Having the RAM so close to the processor both reduces latency—making RAM access faster—and cuts power consumption, helping your battery last longer.
- It's clear from both hardware and software that this is a single core processor, so it must be the ARM Cortex A8, and NOT the rumored multicore A9. (*Engadget contests this point)
- We're guessing that the iPad uses the same PowerVR SGX 535 GPU.

Read More



The Apple A4 Chip Gets Deconstructed

The Apple A4 Chip Gets Deconstructed

The Apple A4 Chip Gets Deconstructed
