How to Find Your iPhone ECID [Windows]

Posted May 1, 2010 at 1:06am by iClarified
JapanesePortuguese (Brazil)
Instructions on how to get your iPhone ECID using Windows.


Step One
Put your iPhone into recovery mode. If you do not know how to do this then you can follow this tutorial.

Step Two

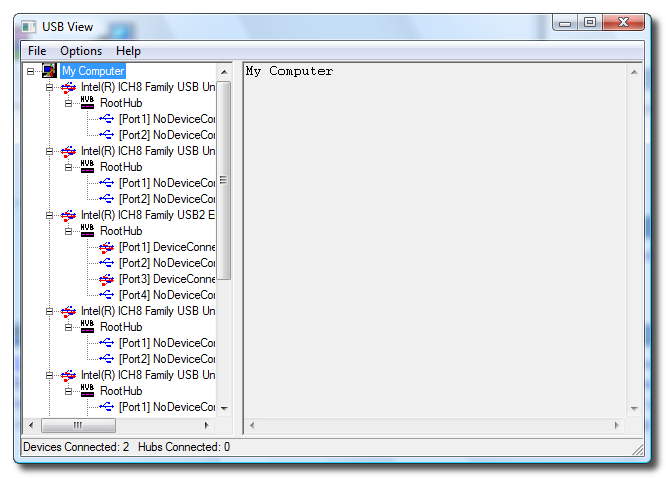

Launch the USBView application. If you do not already have this application you can download it here. It is a small free utility provided by Microsoft.
How to Find Your iPhone ECID [Windows]


How to Find Your iPhone ECID [Windows]

Step Three
Click to select Config Discriptors from the Options menu.
How to Find Your iPhone ECID [Windows]

Step Four
Click to select Refresh from the File Menu.
How to Find Your iPhone ECID [Windows]

Step Five

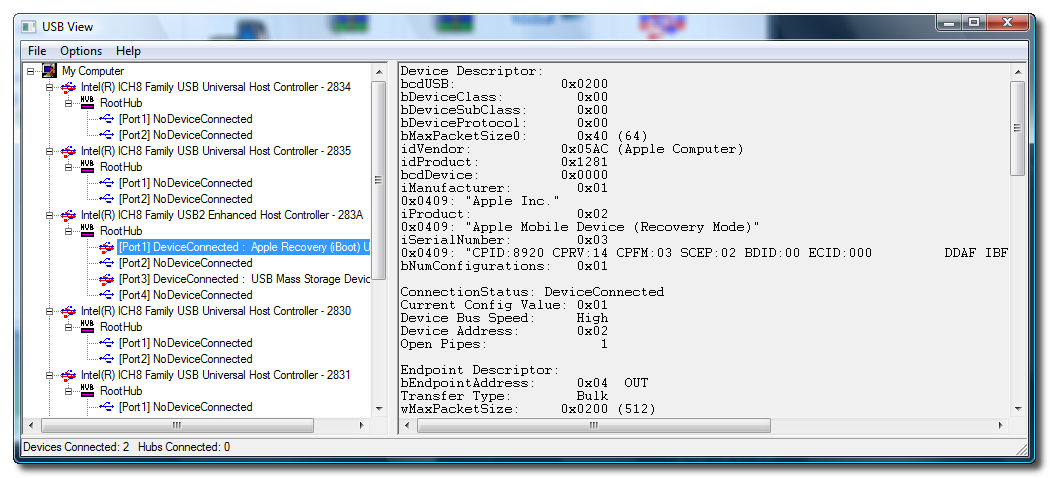

Select the Apple Recovery (iBoot) device from the USB Device Tree in the left panel then Copy (highlight and press Control+c) your ECID from the Descriptor fields on the right.
How to Find Your iPhone ECID [Windows]
Add Comment
Would you like to be notified when someone replies or adds a new comment?
Yes (All Threads)
Yes (This Thread Only)
No
iClarified Icon
Notifications
Would you like to be notified when we post a new Apple news article or tutorial?
Yes
No
Comments (6)
You must login or register to add a comment...
Andrielly
Andrielly - April 5, 2015 at 7:44am
I would like to consider the oittrpunpoy of saying thanks to you for the professional suggestions I have constantly enjoyed checking out your site. I'm looking forward to the actual commencement of my school research and the complete groundwork would never have been complete without consulting your website. If I can be of any help to others, I'd be thankful to help through what I have discovered from here.
fiore
fiore - March 26, 2013 at 4:18pm
Device Descriptor: bcdUSB: 0x0200 bDeviceClass: 0x00 bDeviceSubClass: 0x00 bDeviceProtocol: 0x00 bMaxPacketSize0: 0x40 (64) idVendor: 0x05AC (Apple Computer) idProduct: 0x1281 bcdDevice: 0x0000 iManufacturer: 0x02 0x0409: "Apple Inc." iProduct: 0x03 0x0409: "Apple Mobile Device (Recovery Mode)" iSerialNumber: 0x04 0x0409: "CPID:8930 CPRV:20 CPFM:03 SCEP:02 BDID:00 ECID:000003A46115C30C IBFL:03 SRNM:[611129GYA4S]" bNumConfigurations: 0x01 ConnectionStatus: DeviceConnected Current Config Value: 0x01 Device Bus Speed: High Device Address: 0x01 Open Pipes: 1 Endpoint Descriptor: bEndpointAddress: 0x04 OUT Transfer Type: Bulk wMaxPacketSize: 0x0200 (512) bInterval: 0x00 Configuration Descriptor: wTotalLength: 0x0039 bNumInterfaces: 0x02 bConfigurationValue: 0x01 iConfiguration: 0x05 0x0409: "Apple Mobile Device (Recovery Mode)" bmAttributes: 0x80 (Bus Powered ) MaxPower: 0xFA (500 Ma) Interface Descriptor: bInterfaceNumber: 0x00 bAlternateSetting: 0x00 bNumEndpoints: 0x01 bInterfaceClass: 0xFE bInterfaceSubClass: 0x01 bInterfaceProtocol: 0x02 iInterface: 0x00 Endpoint Descriptor: bEndpointAddress: 0x04 OUT Transfer Type: Bulk wMaxPacketSize: 0x0200 (512) bInterval: 0x00 Interface Descriptor: bInterfaceNumber: 0x01 bAlternateSetting: 0x00 bNumEndpoints: 0x00 bInterfaceClass: 0xFF bInterfaceSubClass: 0xFF bInterfaceProtocol: 0x51 iInterface: 0x00 Interface Descriptor: bInterfaceNumber: 0x01 bAlternateSetting: 0x01 bNumEndpoints: 0x02 bInterfaceClass: 0xFF bInterfaceSubClass: 0xFF bInterfaceProtocol: 0x51 iInterface: 0x06 0x0409: "Apple USB Serial Interface" Endpoint Descriptor: bEndpointAddress: 0x81 IN Transfer Type: Bulk wMaxPacketSize: 0x0200 (512) bInterval: 0x00 Endpoint Descriptor: bEndpointAddress: 0x02 OUT Transfer Type: Bulk wMaxPacketSize: 0x0200 (512) bInterval: 0x00
James Evans Turner
James Evans Turner - February 28, 2013 at 6:55pm
You find it in Windows without iTunes and without USB View. -Connect the iDevice in Restore mode --Turn the device off --Hold the Home button while connecting the USB cable --Keep holding the home button until a "Connect to iTunes" picture appears. - In Windows, open the Device Manager - Change the view to "Devices by connection" - The iDevice will appear as a USB composite device, containing two unrecognized devices (unrecognized if the system doesn't have iTunes because the driver software will not be installed) - Double-click the USB composite device and go to the "Details" tab. - You will see many text strings containing cryptic device IDs and other information. - Look for the one containing "ECID" and 16-charcter number after that is the ECID.
Xvani
Xvani - July 15, 2010 at 3:30pm
is an error message I get on two different systems (win 7 and win xp. Neither have iTunes installed) Ideas?
ihernandezico
ihernandezico - May 1, 2010 at 4:41pm
I have a 3GS and my SHSH ALREADY BEEN KEPT BY SAURIK. DO I HAVE TO DO THE ECID AND RUN UMBRELLA FIRMAWARE?
