Como capturar el iBEC y el iBSS de tu iPhone 3GS (Mac)

POST

MAIL

Posted July 2, 2009 at 10:59am by iClarified · 236802 views

Estas son las instrucciones de como capturar el iBEC e iBSS de tu iPhone 3GS, necesrios para poder hacer jailbreak en un futuro no muy lejano. El tutorial para windows sera publicado aqui muy pronto...

Paso 1: Creamos en nuestro escriotrio una carpeta llamada Pwnage y en esa carpeta ponemos el firmware 3.0 del iPhone 3G S que puedes descargar desde aquí.

Como capturar el iBEC y el iBSS de tu iPhone 3GS (Mac)

Paso 2: Abrimos iTunes.

Paso 3: Necesitaremos restaurar nuestro iPhone 3G S poniendolo en modo DFU para obtener nuestro iBEC y iBSS.

Para saber como poner el iPhone en modo DFU pincha aquí.

iTunes te avisará con una ventanita diciendote que estas en modo recuperación, es decir que accediste correctamente a modo DFU. Dale a Ok y ahora pulsando la tecla Option (la tecla alt) dale a Restaurar.

[img]https://www.iclarified.com/images/tutorials/4400/16795/16795-500.png]

Selecciona iPhone2,1_3.0_7A341_Restore.ipsw de nuestra carpeta Pwnage en nuestro escritorio y le damos a abrir.

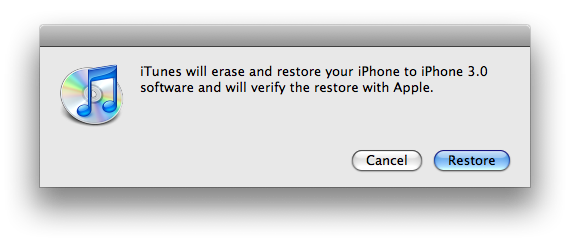

Tu iPhone 3G S ahora comenzará a restaurarse, pero antes te saldrá un advertencia diciendote que se te borraran todos tus datos (No importa que se te borren, ya que después puedes volver a soncronizarlo) y NO LE DAMOS AÚN A RESTAURAR.

Paso 5: Abrimos la terminal desde nuestro Dock o desde Aplicaciones:Utilidades.

Pon el siguiente comando en la Terminal y pulsa Enter:

while x=1; do nohup cp -vr /tmp/PersonalizedRestoreBundle.*/Firmware/dfu/* ~/Desktop/Pwnage/ 2>/dev/null; sleep .1s; done

Paso 6: Ahora vuelve a iTunes y a la ventanita de advertencia que nos salio antes, le damos a Restaurar.

Paso 7: Mientras que se esta restaurando nuestro iPhone 3G S, vamos a nuesrta carpeta Pwnage y habrán aparecido dos archivos que se parecerán a estos: iBEC.n88ap.RELEASE.dfu y iBSS.n88ap.RELEASE.dfu

Paso 8: Una vez que han aparecido esos 2archivos en nuestra carpeta Pwnage volvemos a la terminal y para parar el script que antes ejecutamos pulsamos Control + C

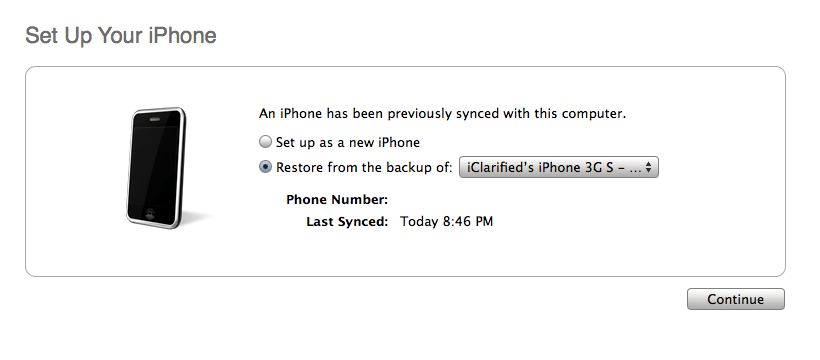

Paso 9: Una vez que termino de restaurarse nuestro iPhone 3G S, nos dirá si quiere que la sincronicemos con una copia de seguridad que teníamos y nosotros pulsamos directamente en Continuar.

Paso 10: Y ya esta hecho! Ya tenemos el iBEC y el iBSS, ahora guardalos en un lugar seguro para posteriormente poder hacerle un jailbreak.

Follow iClarified

loan - June 22, 2012 at 3:31pm

I took 1 st loan when I was 20 and that helped me very much. Nevertheless, I require the student loan over again.

Reply · Like · Mark as Spam

nerv - October 10, 2009 at 5:15pm

hmm, i think it would be great big hint for everyone, that this move isn't possible anymore, since apple only let us restore with 3.1, right?!!!!!!! or can we extract the ibec/ibss from a custom made 3.1 made with pwnage 313? i love the guides from iclarified, but it's much to unclearly with all the non actual guides......

quajo373 - October 18, 2009 at 4:00am

hi guys i tried to use this method for 30gb iphone 3gs on 3.0.1 but it keeps saying firmware is not eligible for this device. any ideas, iC pls help

Ivan Kolev - September 14, 2009 at 5:03pm

I have just followed the steps but i don't get these 2 files. Anyway when the extracting is finished it appears an alert massage which says restoration cannot be completed. I've got iphone 3gs which had been unlocked and jailbroken before i accidentely updated it to 3.1. I use itunes 9 on snow leopard 10.6.1. Beside this if i try to generate these files using purplera1n , nothing again ... it appears a massage "something went wrong..." Does anyone have any suggestions why is that?

Khal - September 10, 2009 at 2:19pm

Is there any chance to capture the iBEC and iBSS if I have my iPhone updated to 3.0.1 firmware?

RtheDuke - August 22, 2009 at 11:11am

Thanks. It worked perfectly with my 3Gs on 3.0.1 directly. iClarified is my Number ONE, always :sharp and clean instructions . Thanks a lot to all TEAM !

mulek - September 12, 2009 at 12:24pm

by 'worked well on my 3GS w/ 3.0.1' did you use the 3.0 or 3.0.1 ipsw while restoring? I also have a 3GS with 3.0.1 in it

Ryuuga - August 9, 2009 at 10:39am

Thanks a lot pal, I didn't even know that the DFU mode existed, that's why I couldn't get the IBSS file right away (was doing it in Recovery mode...). Very nice tutorial, keep the good work! =)

james - August 8, 2009 at 2:22pm

Is it OK to then update to 3.1?.. or will the two files become useless?

phoney - August 5, 2009 at 3:51pm

I could only retrieve the ibec file and couldn't get the ibss file using the terminal script. Running the script as root fixed the problem and I got both files straight away (don't forget to replace the ~ with a path to your home directory)

dosan - August 25, 2009 at 11:52pm

Thanks, this really helps, i did it several times but never quite get the ibss file... i was pulling my hair until I saw your post.. did it as root and replaced the ~ with /Users//Desktop/Pwnage works....

TUK - August 2, 2009 at 4:00pm

My 3GS phone recently died, and I have had to replace it. When I tried to DFU to get the iBEC and iBSS files, using a Mac running itunes 8.2.1 and the terminal script method, I succeeded in getting the files but when the phone tried to authorise with Apple's activation servers it failed with the message "Unsupported Carrier/SIM" etc. I have (had!) a legitimately purchased and activated account, and I have now tried this procedure with several replacement phones. Each of these phones was obtained from the Apple Store, and was successfully activated with my SIM, in the store. Each time I got it home and tried to DFU it to get the iBEC and iBSS files off it, it was totally bricked at the end of the restore process because iTunes refuses to re-activate it. The same result, every time. The phone restores, and when it does, it won't recognise the legitimate SIM card, or indeed any iPhone SIM card. DFU-ing and restoring it again doesn't help. It won't re-activate. Period! Even after a factory reset. I have tried going back to iTunes 8.2 instead of 8.2.1, with a fresh phone from the Apple Store, which WAS activated in-store successfully (as were each of them - I've tried 5 replacements now!) and got the same result. Can anyone shed any light on WTF is going on??

mz - August 23, 2009 at 2:04pm

FUD

Branko - July 21, 2009 at 3:54am

I've followed the instructions provided, all worked well as far as the files are concerned, however I only got one file; iBEC.n88ap.RELEASE.dfu. Should I redo the process or something else I can do to get the iBESS file? Also this only captures the iBEC and iBSS files, it doesn't actually unlock the phone right? Do I still need to use ultrasn0w or whichever one to unlock the phone using MacBook Pro? Thanks

Jon - July 13, 2009 at 5:40pm

Guys, just tried to capture the required files using the terminal method. I followed the instructions, the phone was in DFU mode (black screen) and monitored the pawnage folder, the files did not appear at all??? I'm using a powerbook 1.5GHz, running Tiger with iTunes 8.2. I'm not a terminal guru, but i notice on the tutorial, after the command has been entered, the top bar of the terminal windows displays -CP-, but when I paste the command into terminal and hit enter, it says -SLEEP- Does this seem right?? A response will be much appreciated :)

JK - July 10, 2009 at 1:00am

The downloaded firmware update 'iPhone2,1_3.0_7A341_Restore.ipsw' shows up as a folder when unzipped, rather than as a device update package. So, in iTunes I can't select the whole package after Option-Restore. Has anyone encountered this, or what should I do differently?

JK - July 10, 2009 at 1:09am

Forget it. I found it under the Jailbreak: Likno1uvevacen wrote at 2009-07-09 11:31:26 In safari click Safari preferences then general tab. UNCHECK open safe files after downloading. Then REDOWNLOAD THE IPSW FILE. DO NOT UNZIP IT! Change the extension on file from .zip to ipsw. It will ask you for confirmation tell it yes. Then you should be all set.

BonesSK - July 10, 2009 at 12:40am

Found my problem thanks to Spliff on xsellize's irc channel - I had been running a beta 3.0 on my old 3G - so my iTunes was a beta - reinstalled a normal itunes and it worked like a charm1

anaq8i - July 9, 2009 at 4:57am

Hi, Is this required for officially unlocked 3GS iPhones? or only for locked 3GS ones?

cayman - July 8, 2009 at 3:42pm

Can this be done a purplera1n jailbroken phone? I've got a bunch of apps. If I follow this tut and get the files, and I restore from backup, will it restore my apps when synced?
