iFixIt Posts iPhone 4 Teardown

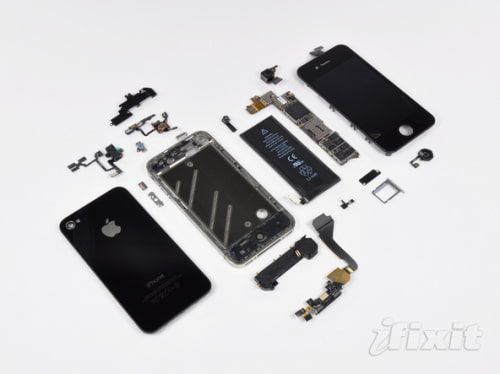

iFixIt has obtained an iPhone 4 and posted a thorough teardown of the device.

Here are some of their findings:
● Storage capacity is not etched on the outer case of the iPhone 4
● It has an actual capacity of 29.06 GB
● The iPhone 4 is Model A1332

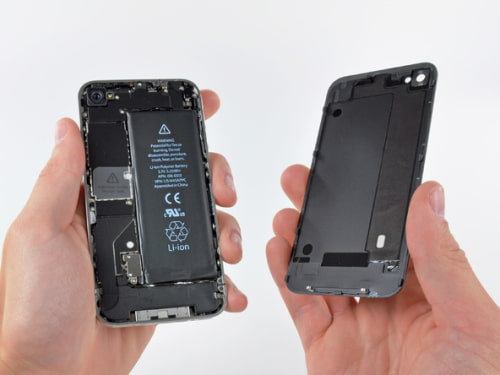

● 3.7V 1420 mAh Li-Polymer battery
● iPhone 4 has a whopping 512 MB
● Improved audio chamber aids in clarifying sounds leaving the iPhone
● Apple has integrated the UMTS, GPS, Wi-Fi, and bluetooth antennas into the stainless steel inner frame
● A4 processor, manufactured by Samsung
● 1 GHz ARM Cortex A8 core
● AGD1 is the new 3 axis gyroscope
● Samsung K9PFG08 flash memory
● Cirrus Logic 338S0589 audio codec
● Broadcom BCM4329FKUBG 802.11n with Bluetooth 2.1 + EDR and FM receiver
● Broadcom BCM4750IUB8 single-chip GPS receiver
● Front glass panel of the iPhone is constructed of Corning Gorilla Glass


Hit the link below for the entire teardown...
