How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

Posted January 27, 2008 at 8:02am by iClarified
These are instructions on how to Update and Jailbreak to 1.1.3 iPhone Firmware using the Official Dev Team Method.

You can find the Mac version of this tutorial here:
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware

I strongly recommend using the Installer method to perform this soft jailbreak. It is way easier and less error prone. It can be found here:
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware Using Installer


To follow these instructions you need to have a 1.1.2 Jailbroken iPhone. You can find instructions on how to do this here:
Windows: How to Activate and Jailbreak Your OTB 1.1.2 iPhone Using Windows
Mac: How to Activate and Jailbreak Your OTB 1.1.2 iPhone

PREPARE THE PHONE
Step One
Press to select Settings from your springboard.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

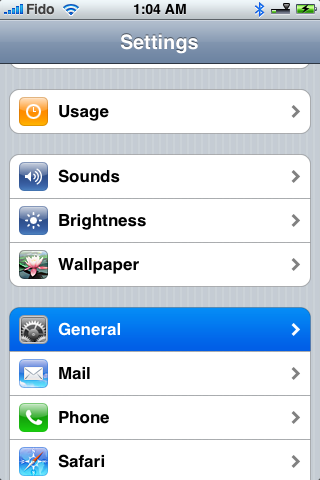

Step Two
Press to select General from the list of categories.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

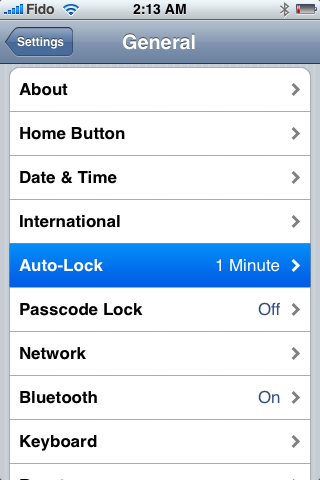

Step Three
Press to select Auto-Lock from the General menu.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

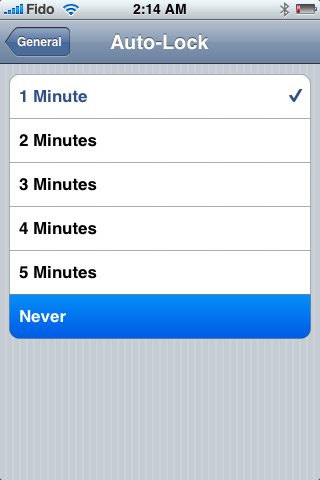

Step Four
Press to select Never from the list of Auto-Lock times.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

Step Five
Press the Home button to return to your springboard.

Step Six

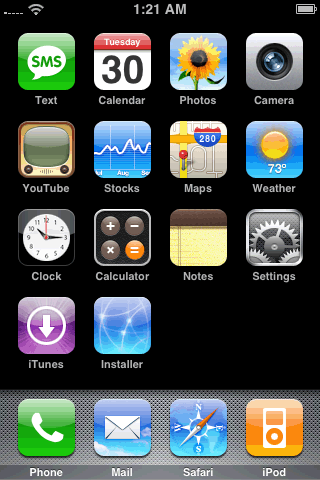

Press to select Installer from your springboard.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

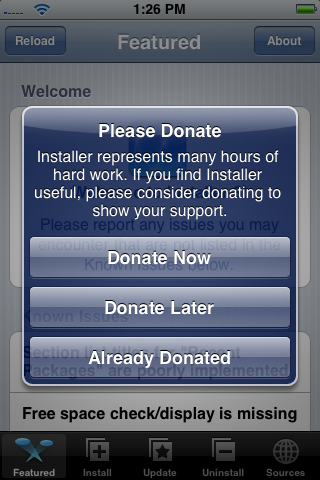

Step Seven
Press Donate Later to continue into the Installer app. Note: Come back later and donate as this app is helping you out a ton!
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

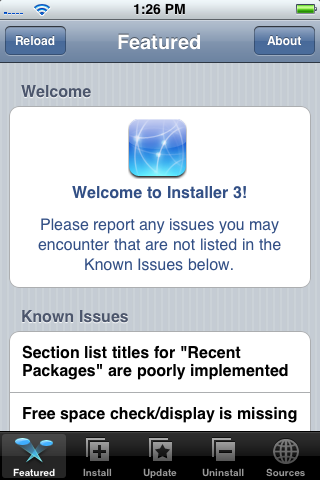

Step Eight
Press to select the Install tab at the bottom of the screen.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

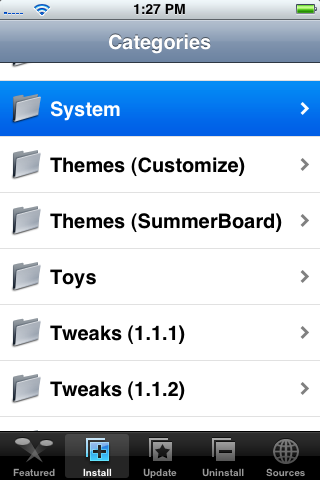

Step Nine
Press to select the System category.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

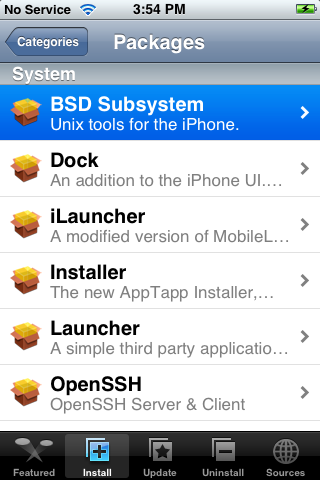

Step Ten
Press to select BSD Subsystem from the list of packages.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

Step Eleven
Press to select the Install button at the top right.

Step Twelve

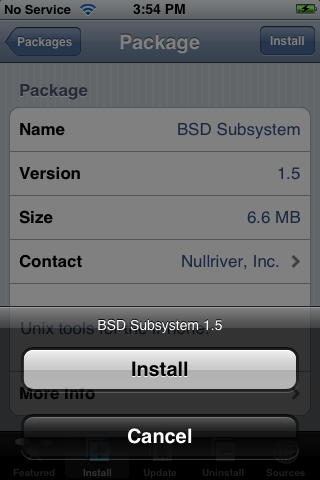

Press the Install button to confirm installation.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

NOTE***: Make sure before you continue that you have updated to the latest Installer version if you have not already. The old version of Installer will not operate on 1.1.3.

INSTALL THE JAILBREAK
Step One
Download the Jailbreak from: here

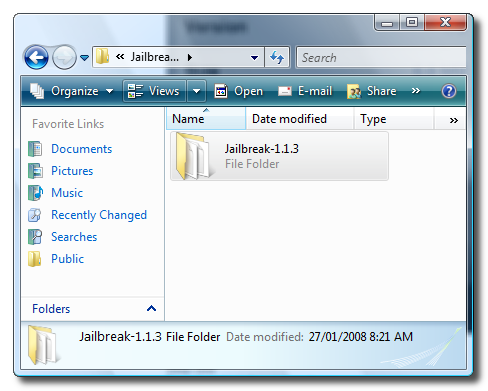

Step Two
Extract the downloaded file (Jailbreak-1.1.3.tar.gz). WinRAR can be used to extract it...
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

Step Three
Launch WinSCP by selecting it from your Programs list.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

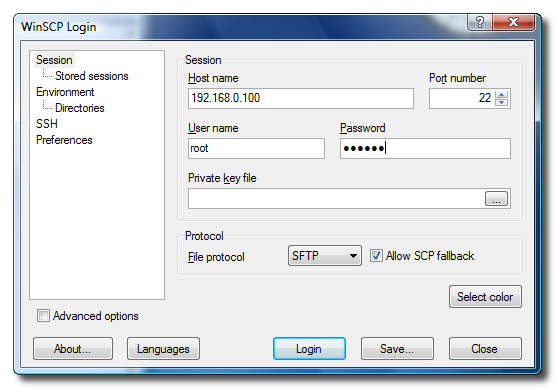

Step Four
Enter your iPhone's IP Address as your Host name. Enter root as your User name. Enter alpine as your Password. Finally click the Login button.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

If you don't know your iPhone's IP Address you can find it here:
How to Find the IP Address of Your iPhone

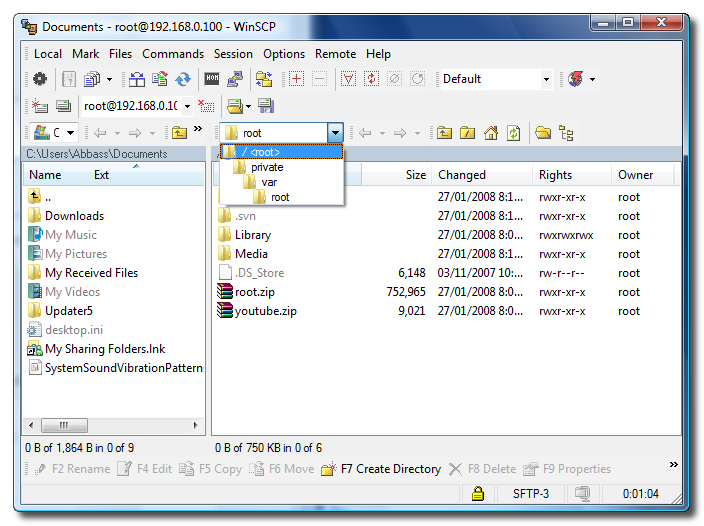

Step Five
Select / from the Remote Folder Dropdown Menu.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

Step Six

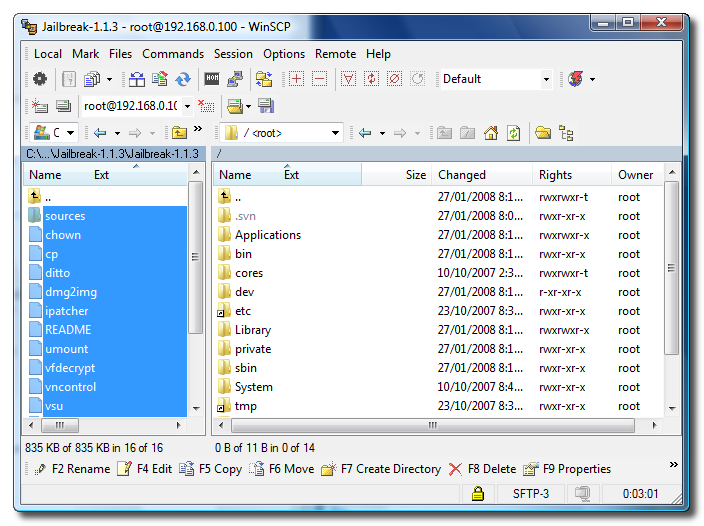

Navigate to the location of the Jailbreak-1.1.3 folder using the left pane and select all the files in it.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

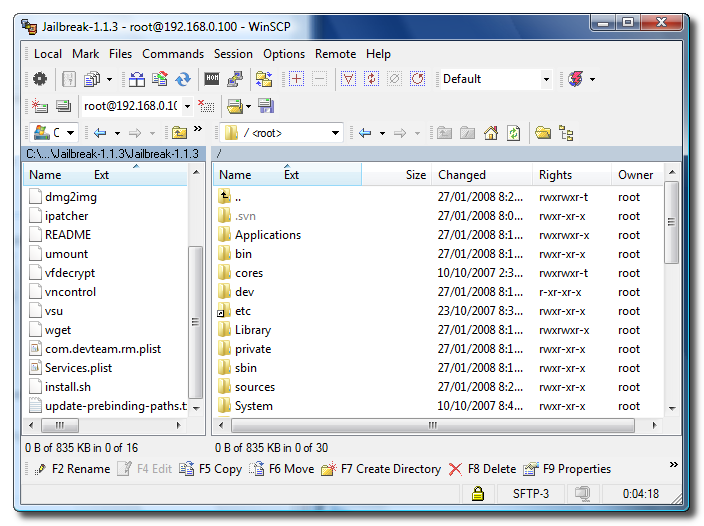

Step Seven

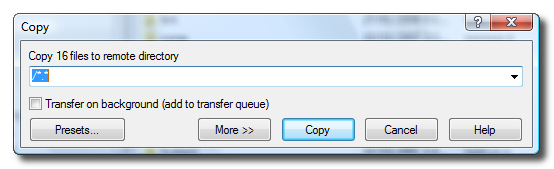

Drag the selected files to the right pane. If prompted to confirm the copy press the Copy button.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

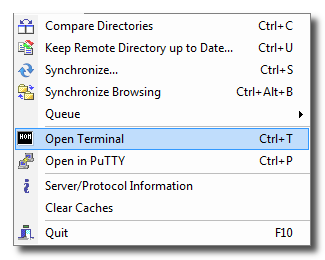

Step Eight
Click to select Open Terminal from the Commands Menu.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

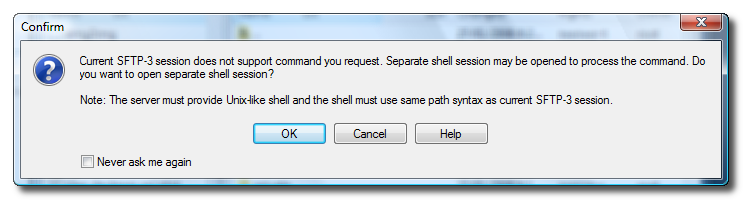

Step Nine
If asked to open a separate shell session click the Ok button.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

Step Ten
In the console window that appears enter the command cd / and click the Execute button.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

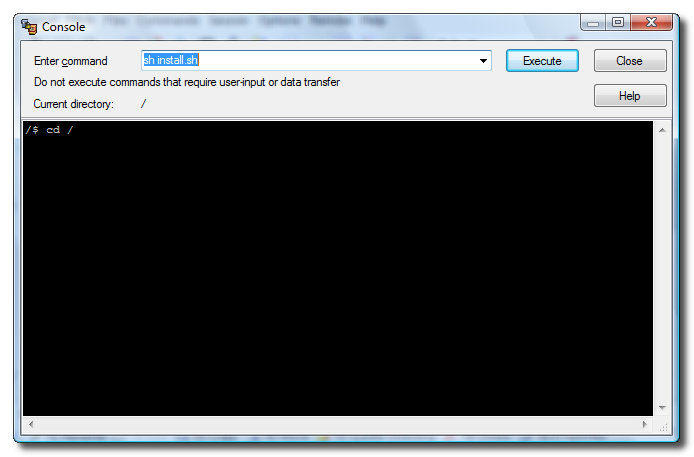

Step Eleven
Now enter the command sh install.sh and click the Execute button.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

Step Twelve

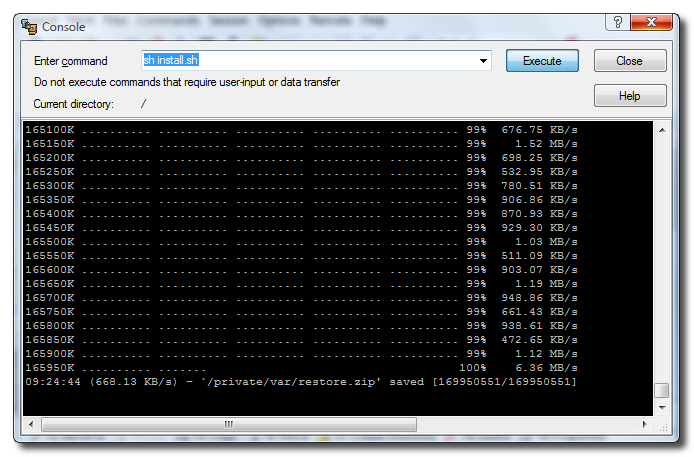

The script will download the firmware from Apple once it finishes it will just sit there for a few minutes. Don't worry this is normal.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

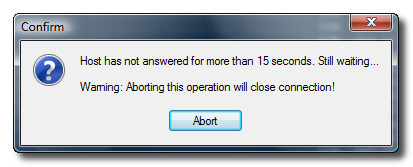

NOTE***: If you ever get this window displayed do not click anything on it. Don't click Abort and don't click the X either. It will disappear in few minutes!
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

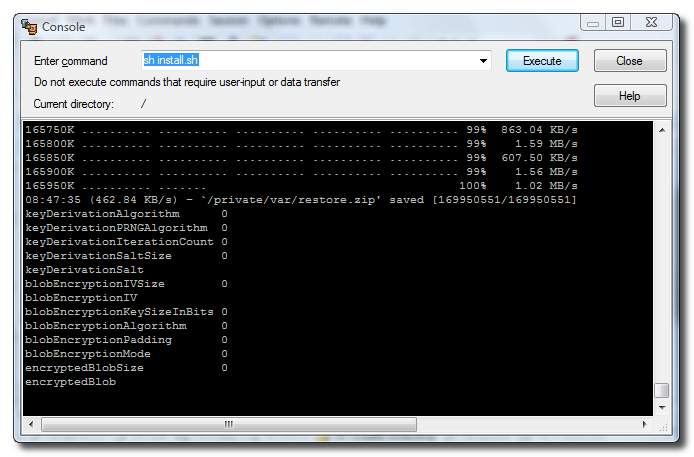

Step Fourteen
It will then display some encryption information and sit there for a few minutes. Don't worry this is normal.
How to Officially Update and Jailbreak to 1.1.3 iPhone Firmware (Windows)

Step Fifteen
The script will then display some partition information and sit there for another few minutes. Don't worry this is normal.

Step Sixteen
The script will then continue to patch your iPhone. It will take several minutes for this to complete and then it will sit there for a longer several minutes again. Once its complete the SSH connection will terminate!

Step Seventeen
After about a minute your iPhone will reboot into a Jailbroken 1.1.3 iPhone !!!!

NOTES***: If you are experiencing problems with iTunes sync after performing this soft update/jailbreak then follow this tutorial:
How to Fix Sync Problems After Official Soft Jailbreak

THANKS***: asap18, bgm, Bugout, bushing, chris_, davidc__, dinopio, drudge, Fred_, ghost_000, gray, MuscleNerd, NerveGas, netkas, np101137, planetbeing, pr3d4k4t, pr3d4t0r, pumpkin, roxfan, Turbo, Whiterat, Zibri, Zf
