How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Posted January 31, 2010 at 6:58pm by iClarified
French
These are instructions on how to jailbreak your iPhone 3G on the 3.1.2 or 3.1.3 firmware using RedSn0w for Mac. If you are already on firmware 3.1.2, do NOT update to firmware 3.1.3. The Windows version of this tutorial is here. The iPhone 3GS version of this tutorial is here. The iPhone 2G version of this tutorial is here

This tutorial can be used to jailbreak before applying the BlackSn0w unlock. You can find instructions on how to apply the unlock here.

Step One

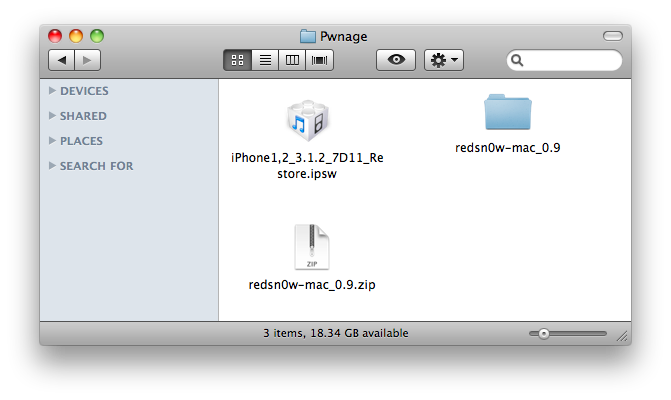

Create a folder on your desktop called Pwnage


Download RedSn0w from here and place it in the Pwnage folder. Likewise, download the latest 3.1.2 firmware from below and place it in the same folder.

3.1.2 (3G): iPhone1,2_3.1.2_7D11_Restore.ipsw

Extract the redsn0w folder from the RedSn0w zip file to the Pwnage folder.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Two
***If you are running iPhone OS 3.1.2 or 3.1.3 you may skip this step***
Connect your iPhone to the computer and launch iTunes.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

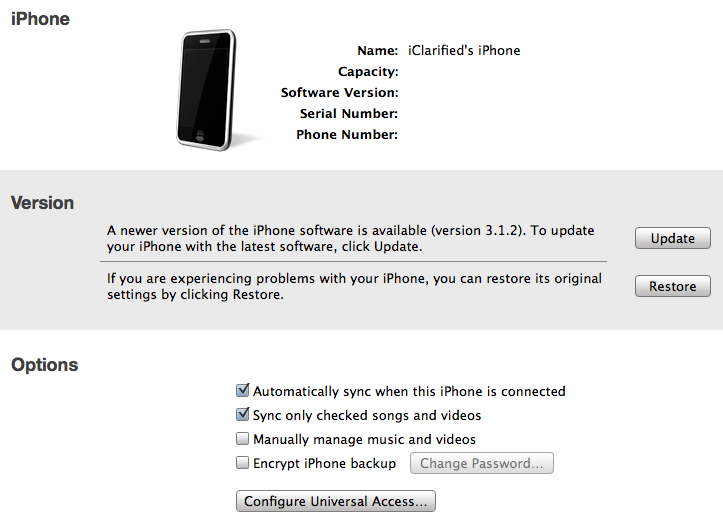

Select your iPhone from the list of devices on the left. Now hold down Option and click the Restore button. Restore is preferred as it won't create any wasted space on your iPhone.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Navigate to the Pwnage folder on your desktop and select the firmware ipsw. Click the Choose button to continue.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

*Note: If you are already on the 3.1.2 firmware and have not jailbroken then you may skip this step.

Step Three

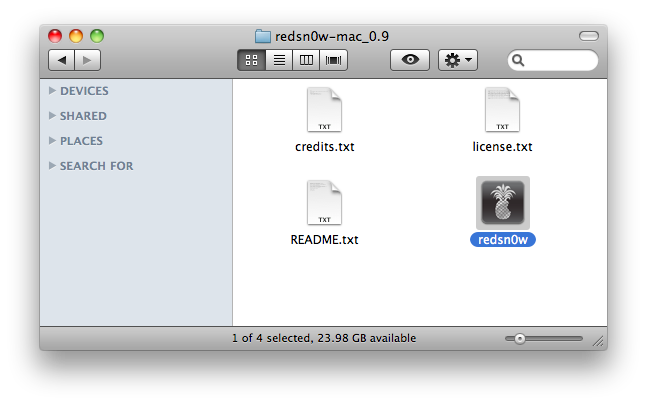

Once iTunes has finished updating your iPhone to the desired firmware open the Pwnage folder on your desktop and launch the redsn0w application from the redsn0w folder we extracted earlier.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Four

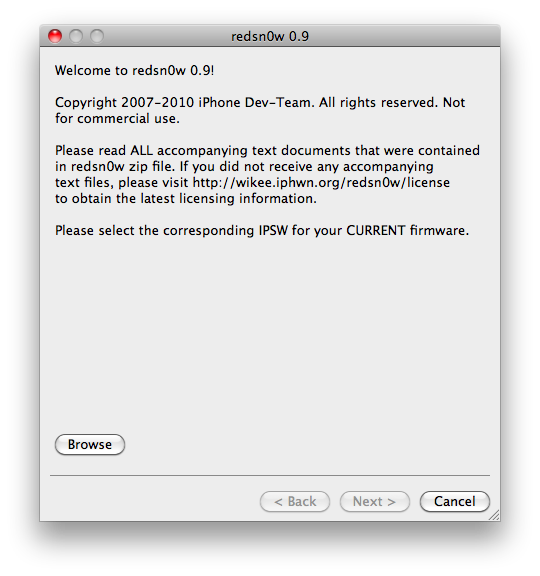

Once RedSn0w opens click the Browse button
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Five

**Note**
Even if you are on firmware 3.1.3, still select firmware 3.1.2. Redsn0w works the same way on firmware 3.1.2 or firmware 3.1.3. If you select firmware 3.1.3, you will get an error, as Redsn0w does not recognize the 3.1.3 file yet.

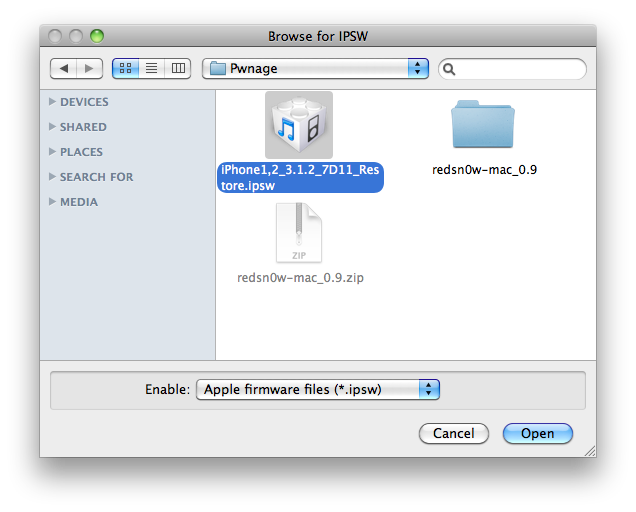

Select the firmware ipsw we placed in the Pwnage folder on our desktop then click Open.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Six

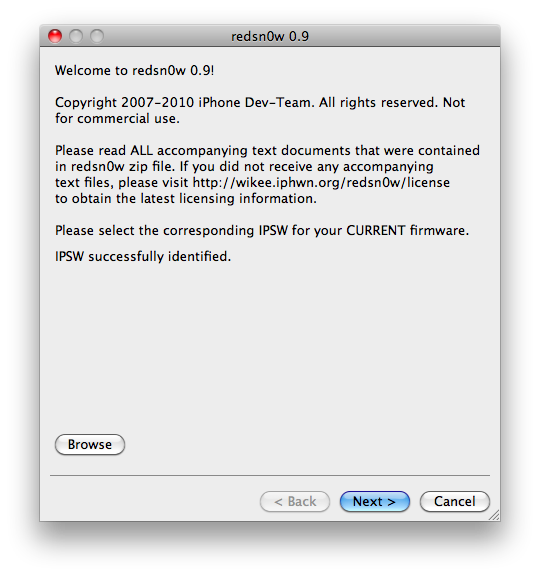

Once the firmware has been verified click the Next button to continue.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Seven

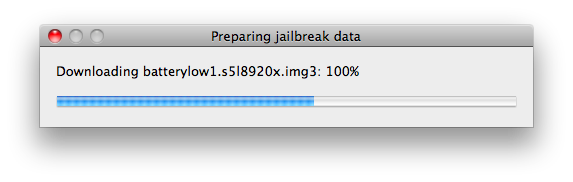

RedSn0w will now prepare the jailbreak data
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Eight

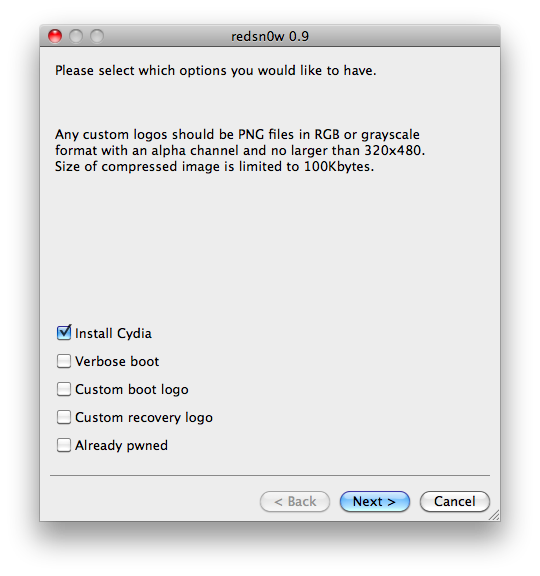

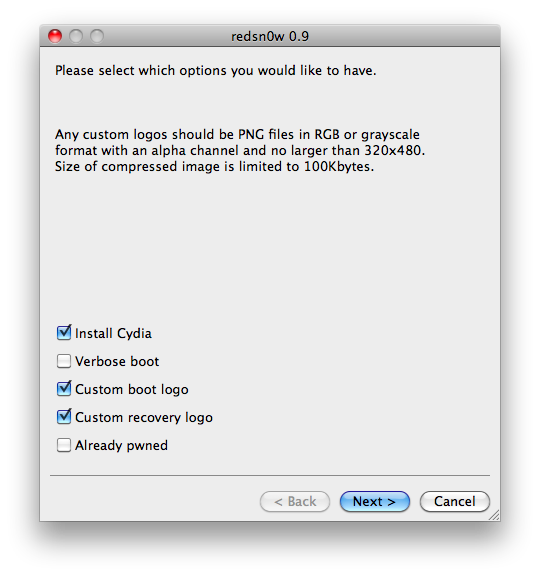

From this window you can select the jailbreak options you would like. If you have already pwned your device check the Already pwned option.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Verbose boot displays detailed information on boot of your device and is generally only needed by developers and advanced users.

Make sure Cydia is selected. For this tutorial we will also select Custom boot logo and Custom recovery logo.

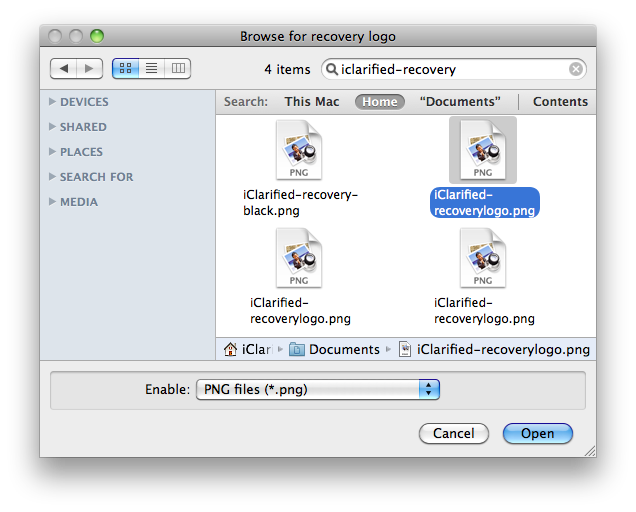

When you click to select each custom logo option a dialog window will appear asking you to select the image. Locate the image you would like to use then press the Open button.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

*Remember the rules for boot logos are: RGB or Grayscale format with Alpha channel and dimension below 320x480. If you would like to use the iClarified ones they can be found here: Boot Logo, Recovery Logo

Click the Next button to continue
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Nine
Please plug your iPhone into the computer and make sure its OFF then click the Next button
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Ten

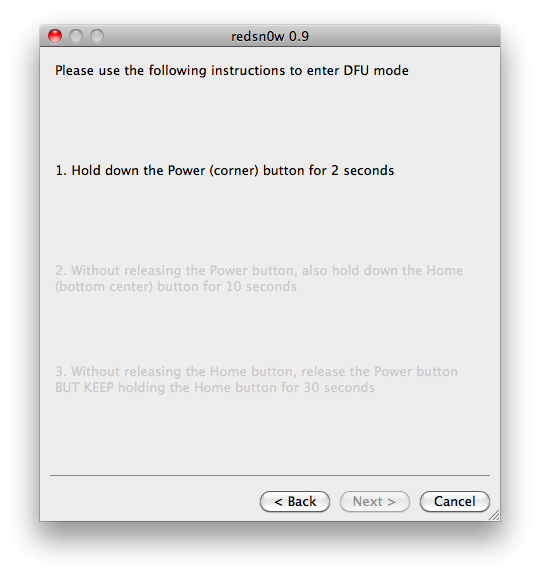

RedSn0w will now guide you through the steps to get into DFU mode. You can find more help with DFU mode here
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Hold down both the Home button and the Power button for 10 seconds.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

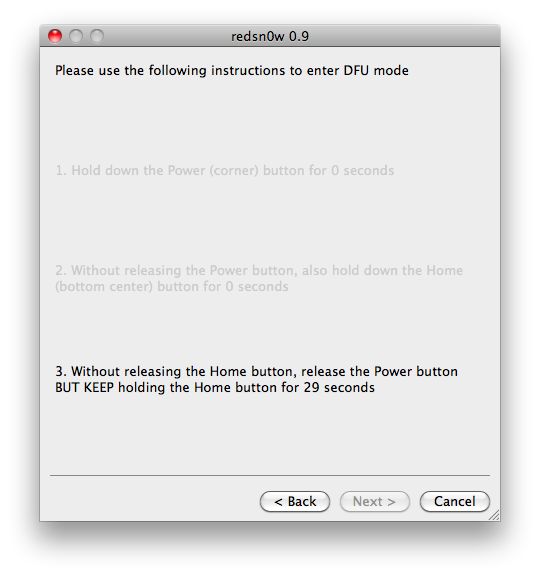

Release the Power button and continue holding the Home button until RedSn0w detects the device.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Eleven

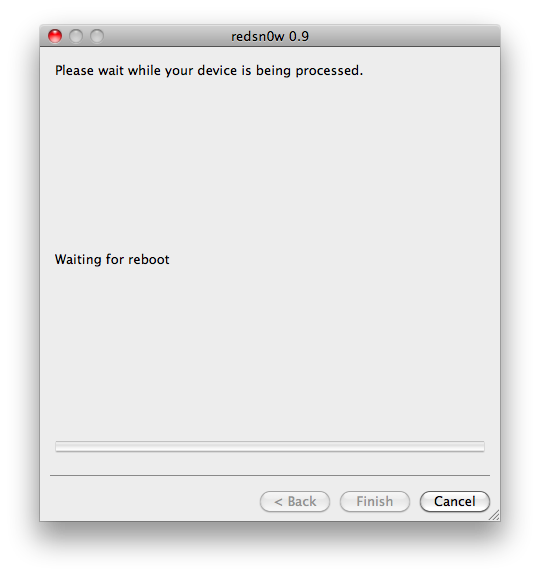

Your iPhone will now reboot
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Twelve
RedSn0w will then begin uploading the new RAM Disk and Kernel.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)

Step Thirteen
Once this is complete you will be notified that RedSn0w is done. Click the Finish button. When your iPhone finishes rebooting (5 minutes or so) it will be jailbroken with Cydia on the SpringBoard.
How to Jailbreak Your iPhone 3G on OS 3.1.2 or 3.1.3 Using RedSn0w (Mac)


*As usual a big thanks to the iPhone Dev-Team for their hard work and contribution to the iPhone community.
