Alleged iPhone 14 and iPhone 14 Pro Schematics Reveal Dimensions

Alleged iPhone 14 and iPhone 14 Pro Schematics Reveal Dimensions

Posted March 22, 2022 at 3:09pm by iClarified · 3714 views
Schematics for the iPhone 14 and iPhone 14 Pro have allegedly leaked, revealing dimensions for Apple's next generation smartphone. @MaxWinebach shared the images on Twitter today.

As expected, the schematics show a new 'pill + hole' cutout in place of the notch, as well as, a large camera bump on the back. The new cutout design is expected on the iPhone 14 Pro/Max but not on the iPhone 14/Max.

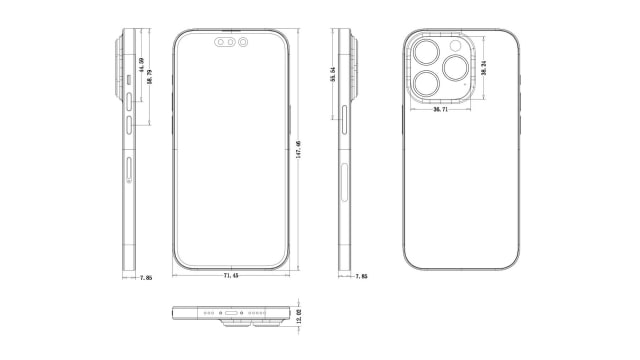

The iPhone 14 Pro measures 71.45mm wide x 147.46 tall x 7.85mm thick. Compare that to the iPhone 13 Pro at 146.7mm x 71.5mm x 7.65mm.

Alleged iPhone 14 and iPhone 14 Pro Schematics Reveal Dimensions

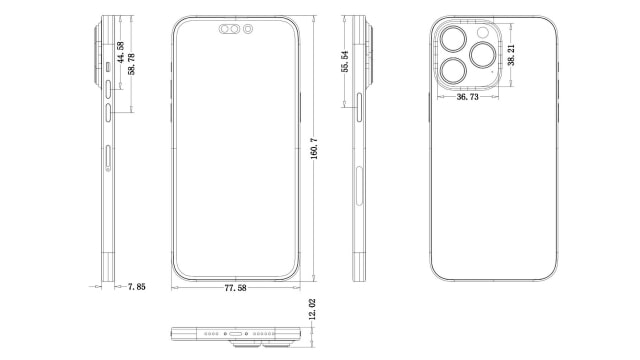

The iPhone 14 Pro Max measures 77.58mm wide x 160.7mm tall x 7.85mm thick. Compare that to the iPhone 13 Pro Max at 78.1mm x 160.8mm x 7.65mm.

The iPhone 14 Pro and iPhone 14 Pro Max will likely feature a new A16 chip from Apple and 8GB of RAM; however, it's rumored that the iPhone 14 and iPhone 14 Max will still use the A15 chip.

Apple is expected to unveil its new smartphones in September. Please download the iClarified app or follow iClarified on Twitter, Facebook, YouTube, and RSS for updates.
