How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Posted November 28, 2010 at 7:11pm by iClarified
These are instructions on how to jailbreak your iPhone 3GS on iOS 4.1 using PwnageTool for Mac. This tutorial will help you upgrade your baseband if needed for unlock.

**Important: iPhone3GS users with old bootroms who want to go to 4.2.1 and unlock should not use this PwnageTool! Update to stock 4.2.1 first, then use the upcoming redsn0w to update your baseband.**

Step One

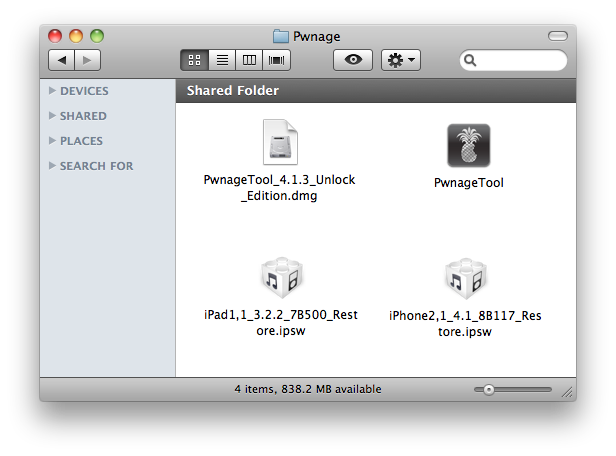

Make a folder called "Pwnage" on the desktop. In it you will need a couple of things. PwnageTool 4.1.3, found here


You will also need the 4.1 iPhone firmware.
4.1.0 (3GS): iPhone2,1_4.1_8B117_Restore.ipsw

If you are on the 05.14 or 05.15 baseband you will also need the iPad 3.2.2 firmware. You can find out how to determine your baseband version here.
3.2.2: iPad1,1_3.2.2_7B500_Restore.ipsw

When downloading the IPSW file, it is best to download it with Firefox since Safari often auto extracts it!
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Two

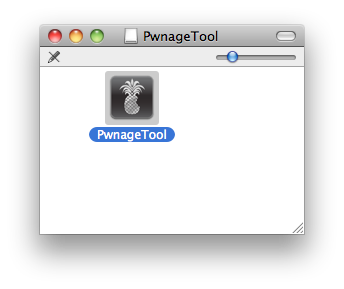

Double click to mount PwnageTool then drag the PwnageTool icon into the Pwnage folder.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Then from the Pwnage folder double click to launch the PwnageTool application.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

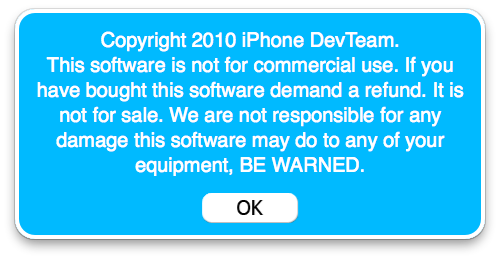

Click Ok if presented with a warning.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Three
Click to select Expert Mode from the top menu bar
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Four

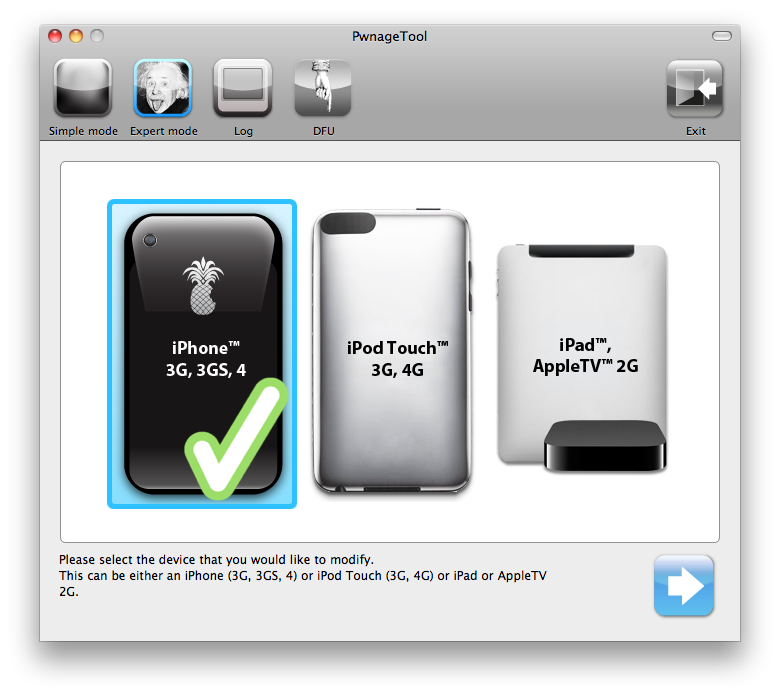

Click to select your device. A check-mark will appear over the image of the device. Click the blue arrow button to continue.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Five

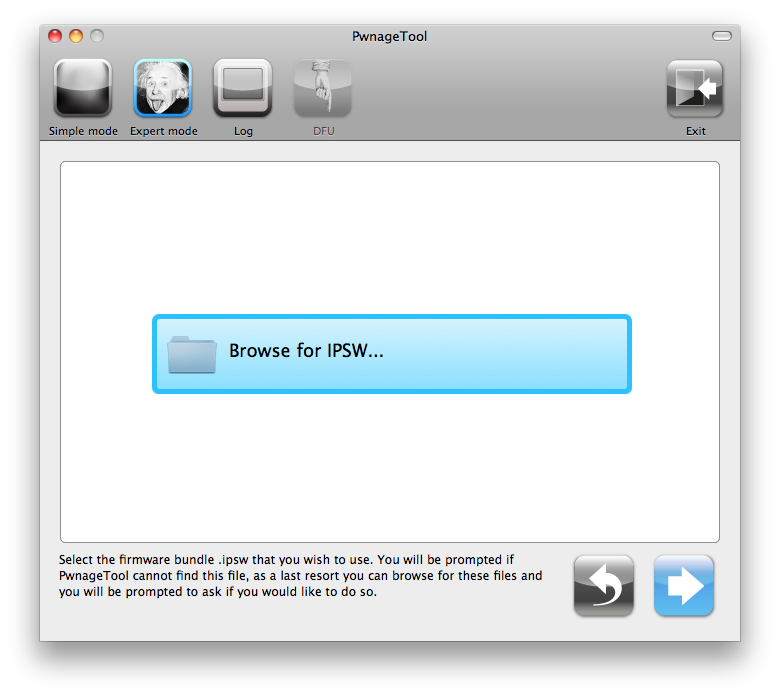

You will be brought to the "Browse for IPSW" page. Click the Browse for IPSW... button.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

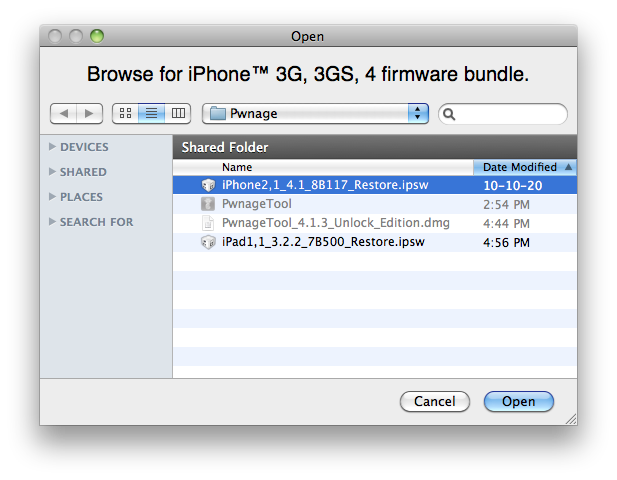

From the popup window select your firmware from the Pwnage folder then click the Open button.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Six

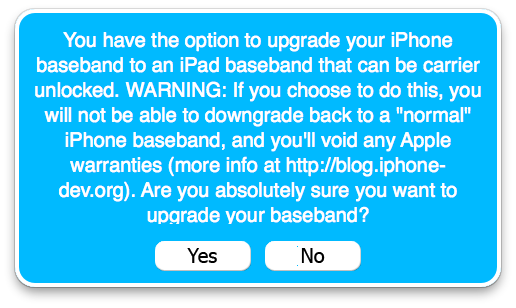

You will now be asked if you want to update your baseband to the 06.15 version. If you are on 05.14 or 05.15 or higher you will need to do this to unlock. You do not need to do this for jailbreak only.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]


Please read the following very carefully before deciding whether to do this.

1. There is no way to come back down from 06.15, and there’s no hiding the baseband version from Apple. You’ll be voiding your warranty in a very obvious way.
2. If some future baseband comes out with a critical fix, you won’t be able to update to it if it remains down in the 05.xx sequence (then again, you wouldn’t update to it if you wanted to keep your unlock anyway).
3. Starting with FW 4.2.1 if you have 06.15 on your iPhone you won’t ever be able to restore to stock firmware (it will fail). You’ll need to only restore to custom IPSWs (then again, if you’re unlocker you should already be doing that).
4. There are reports that 06.15 may disable your GPS. The iPhone Dev-Team is currently working on a fix.

Don’t update to 06.15 if you don’t need to! Only do this if you need the unlock and you’re stuck on 05.14 or 05.15, and you’re willing to assume the above risks.

If you pressed YES then click the Browse for IPSW... button.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

From the popup window select the iPad 3.2.2 firmware from the Pwnage folder then click the Open button.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Seven

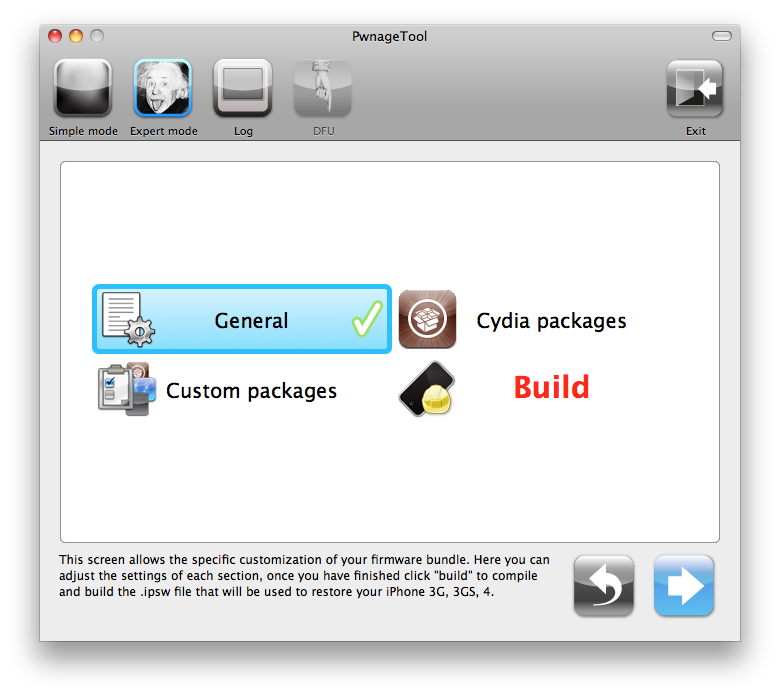

You will then be brought to a menu with several choices. Click to select General then click the blue arrow button.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

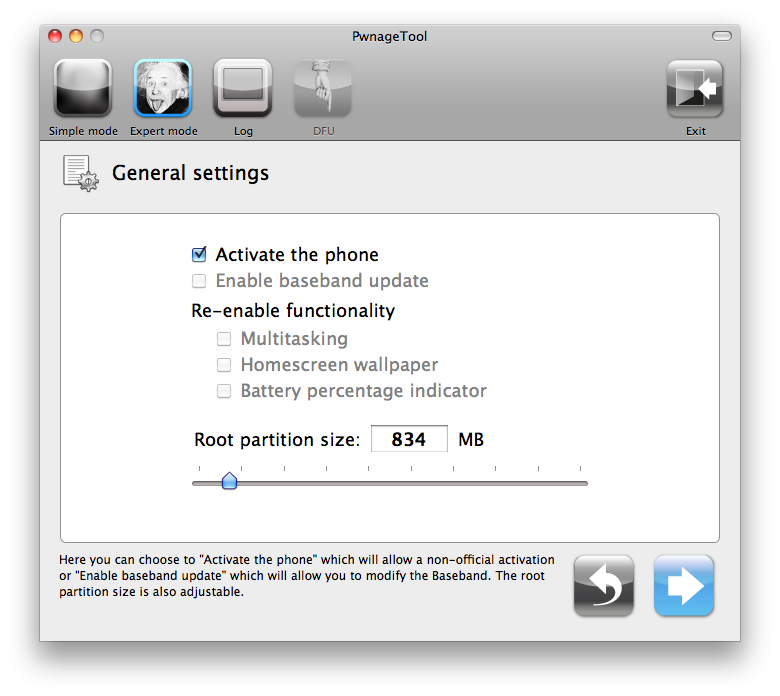

The General settings allows you to decide the partition size. Check Activate the phone if you are not with an official carrier then click the blue arrow button.

NOTE*: Deselect Activate if you have an iPhone legitimately activated on an official carrier.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

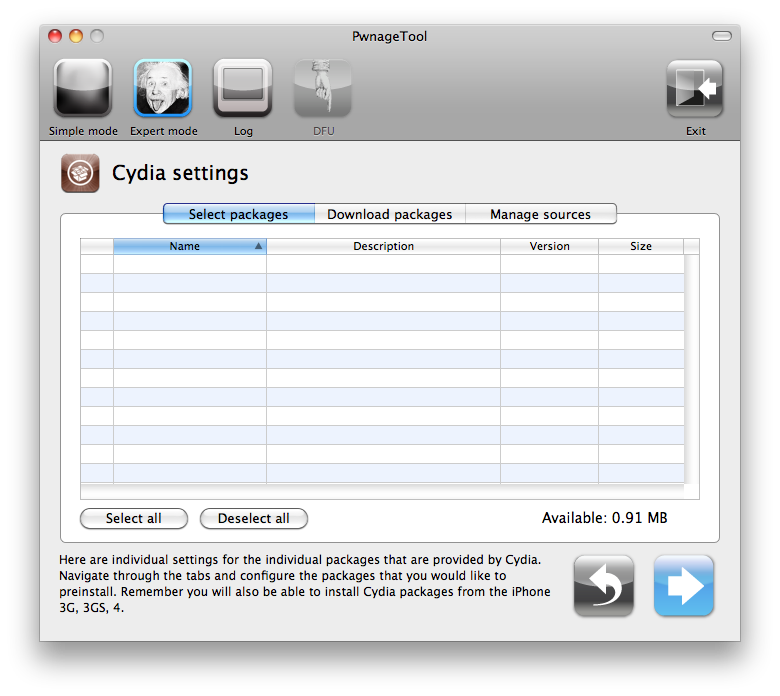

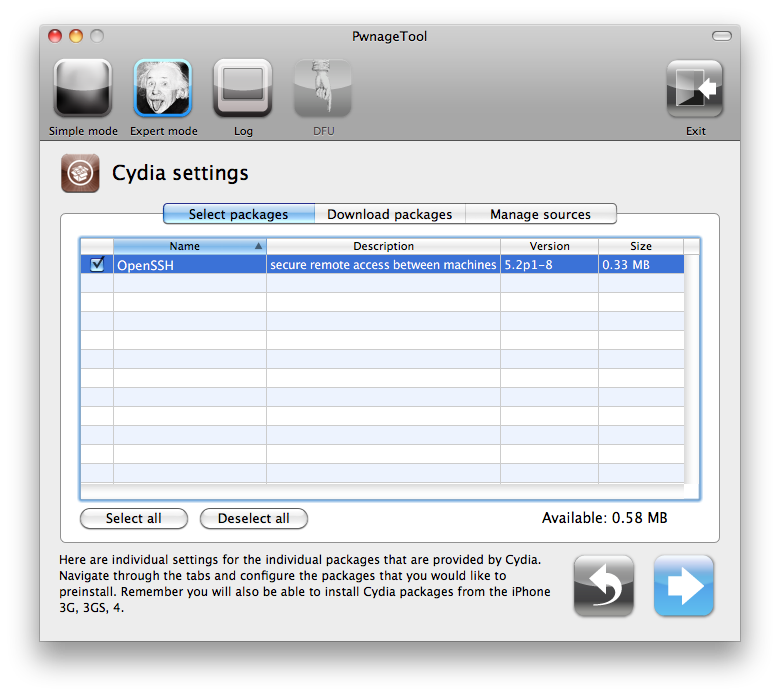

The Cydia settings menu allows you to create custom packages so you do not have to manually install the necessary them later.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

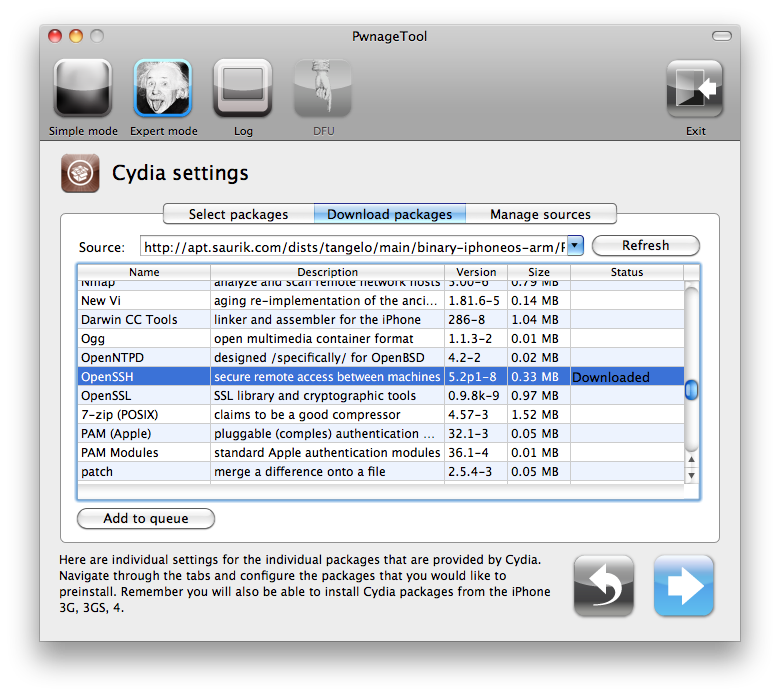

Click to select the Download packages tab. Then click the Refresh button to display all the available packages. Double clicking the package you want will download it and make it available in the Select Packages tab.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Checkmark the ones you want then click the blue arrow button.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

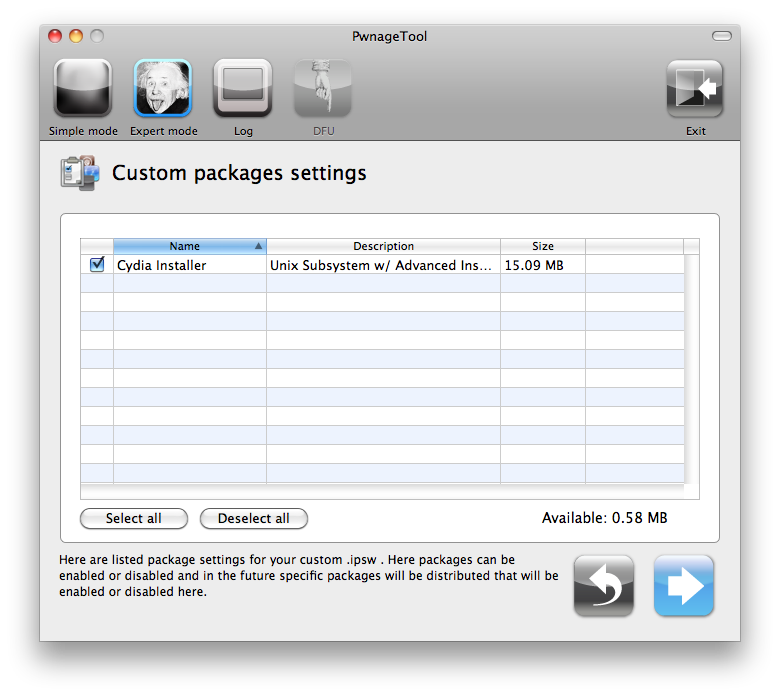

The Custom Packages Settings menu displays listed package settings for your custom IPSW. For know leave these settings as is. Click the blue arrow button to continue.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Eight

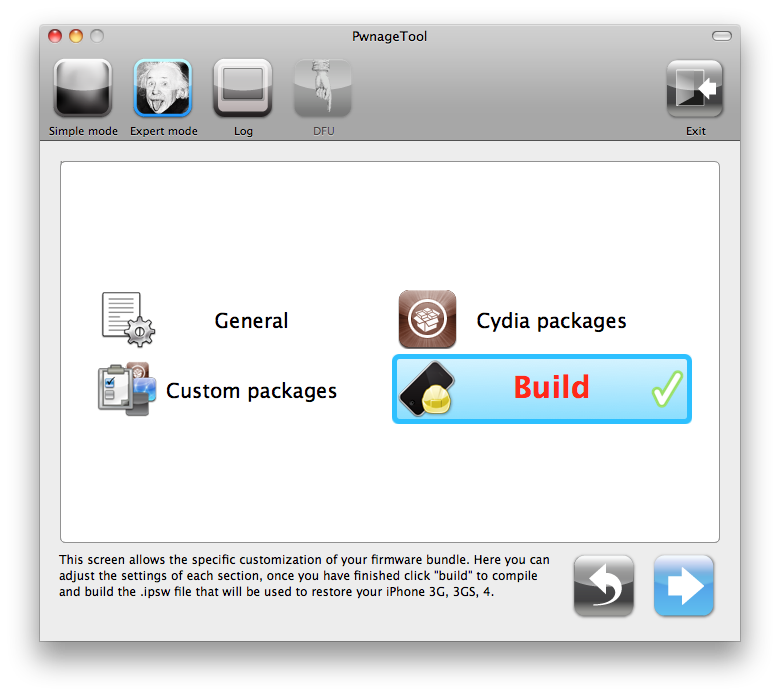

You are now ready to begin the pwnage process! Click the Build button to select it then click the Blue arrow button to begin.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Nine

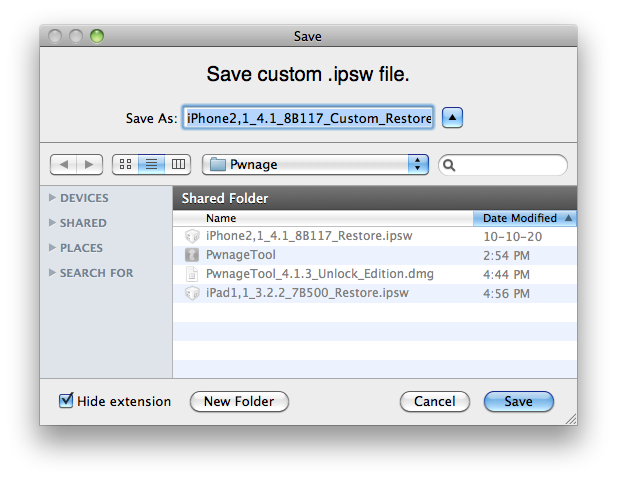

You will be asked to save your custom .ipsw file. Save it to your Pwnage folder you created on your Desktop.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

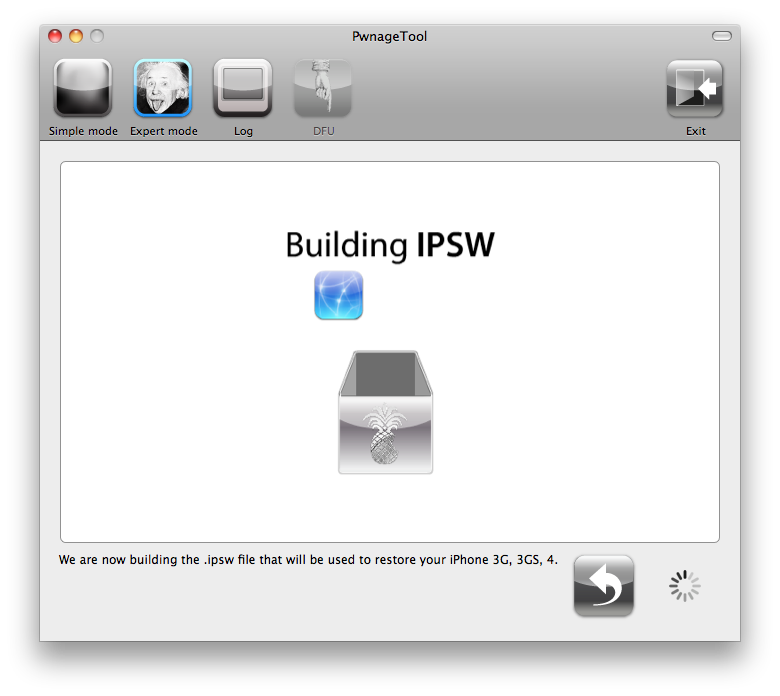

Your IPSW is now being built. Please allow up to 10 minutes.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

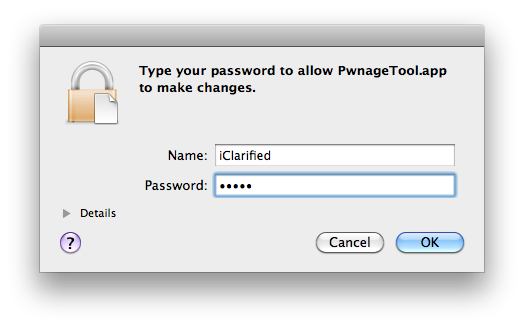

You will be asked to enter your administrator password. Do this then click the OK button.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Ten

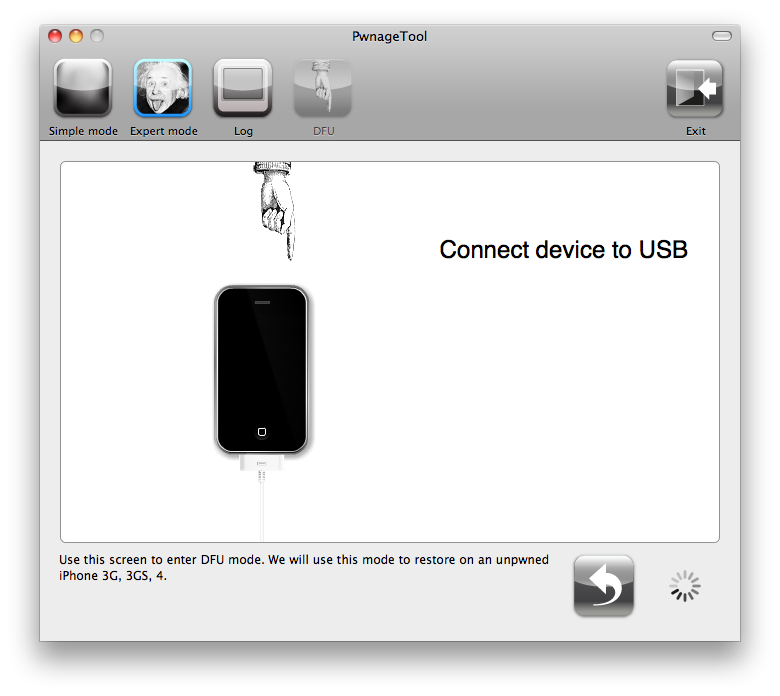

Once your ipsw has been built you will be asked to connect your iPhone to the computer. Once it detects your device PwnageTool will guide your through the steps to putting your iPhone into DFU mode.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

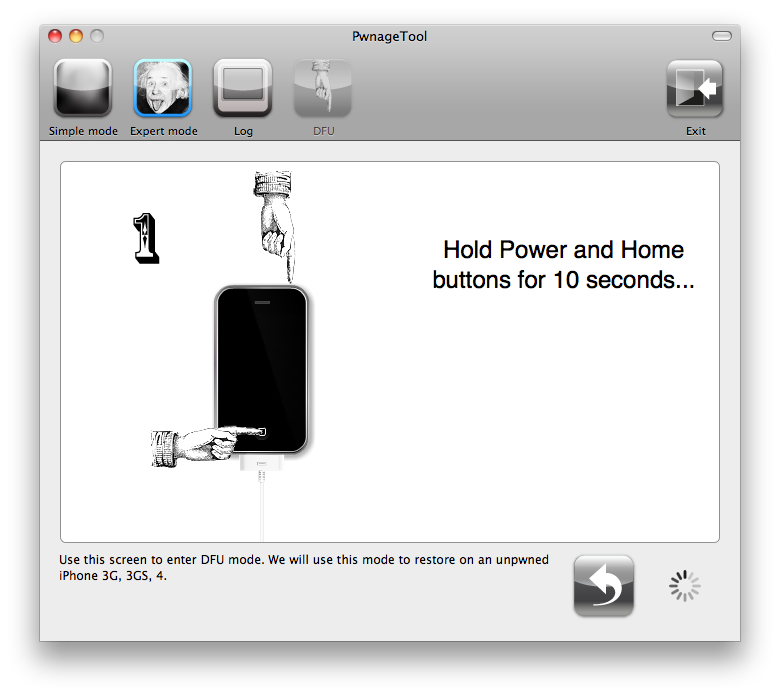

Press and hold the power and home buttons for 10 seconds.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

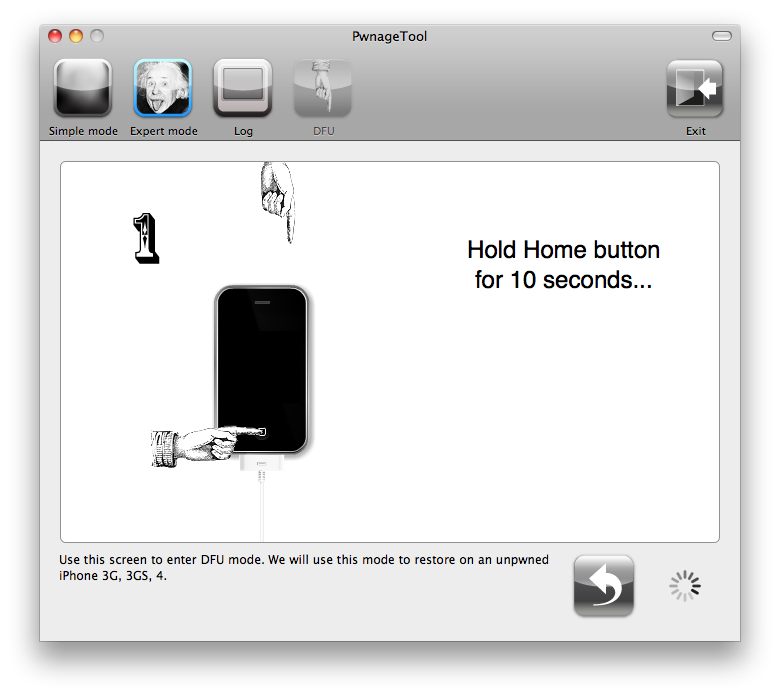

Then release the power button and continue holding the home button for 10 seconds.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

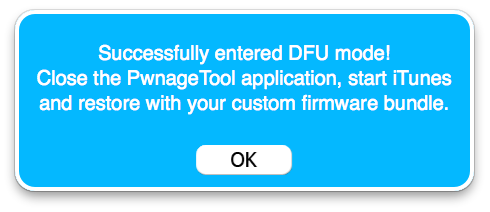

Once your iPhone is successfully in DFU mode, PwnageTool will prompt you to launch iTunes.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Eleven

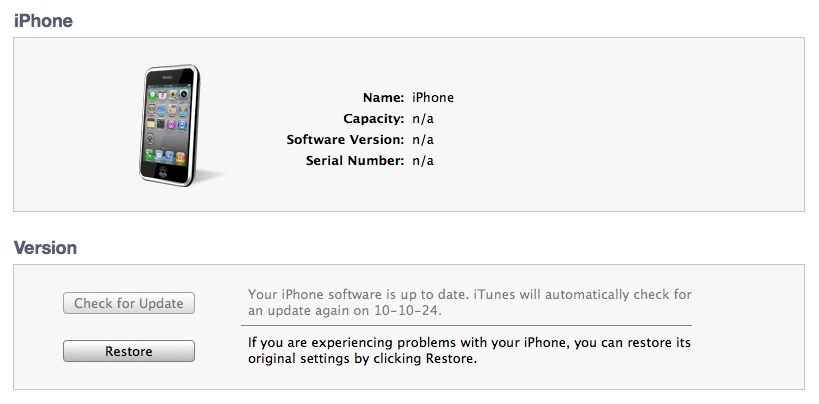

Once In iTunes, hold the Alt/Option key and click Restore.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]

Step Twelve
Navigate to the Pwnage folder on your desktop using the dialog window that appears. Select the custom IPSW that was created and click the Choose button.
How to Jailbreak and Unlock Your iPhone 3GS Using PwnageTool (Mac) [4.1]


UNLOCK: You can now follow this tutorial to unlock your device.

***THANKS: Thank you to Geohot and the Dev-Teams for their hard work in making this jailbreak and tutorial possible!
